Calibration:
The monitor panel is calibrated at the factory for accuracy and should not
require adjustment. If the system is displaying incorrectly calibration may be
necessary. To calibrate:
• Completely fill the tank to be calibrated.
• Locate the three adjustment screws (one for each
tank) behind the monitor panel.
• Using the adjustment tool simultaneously push the
button for the tank and rotate the adjustment screw
until a full tank reading is obtained.
• Repeat the procedure as necessary for the remain-
ing tanks.
• Connect the hose to city/fresh water hook-up located in the service center
on the roadside of the motorhome.
• The city water valve must be in the OPEN position.
• Turn on the water supply.
• The water pump should be in the OFF position.
• The fresh water tank has an overflow located on the curbside of the
motorhome. When the water starts to come out the overflow pipe shut
the water supply off as soon as possible.
NOTE: When connecting the motorhome to fresh water be
sure to use a hose manufactured and labeled for potable
water to ensure that the hose will not flavor the water.

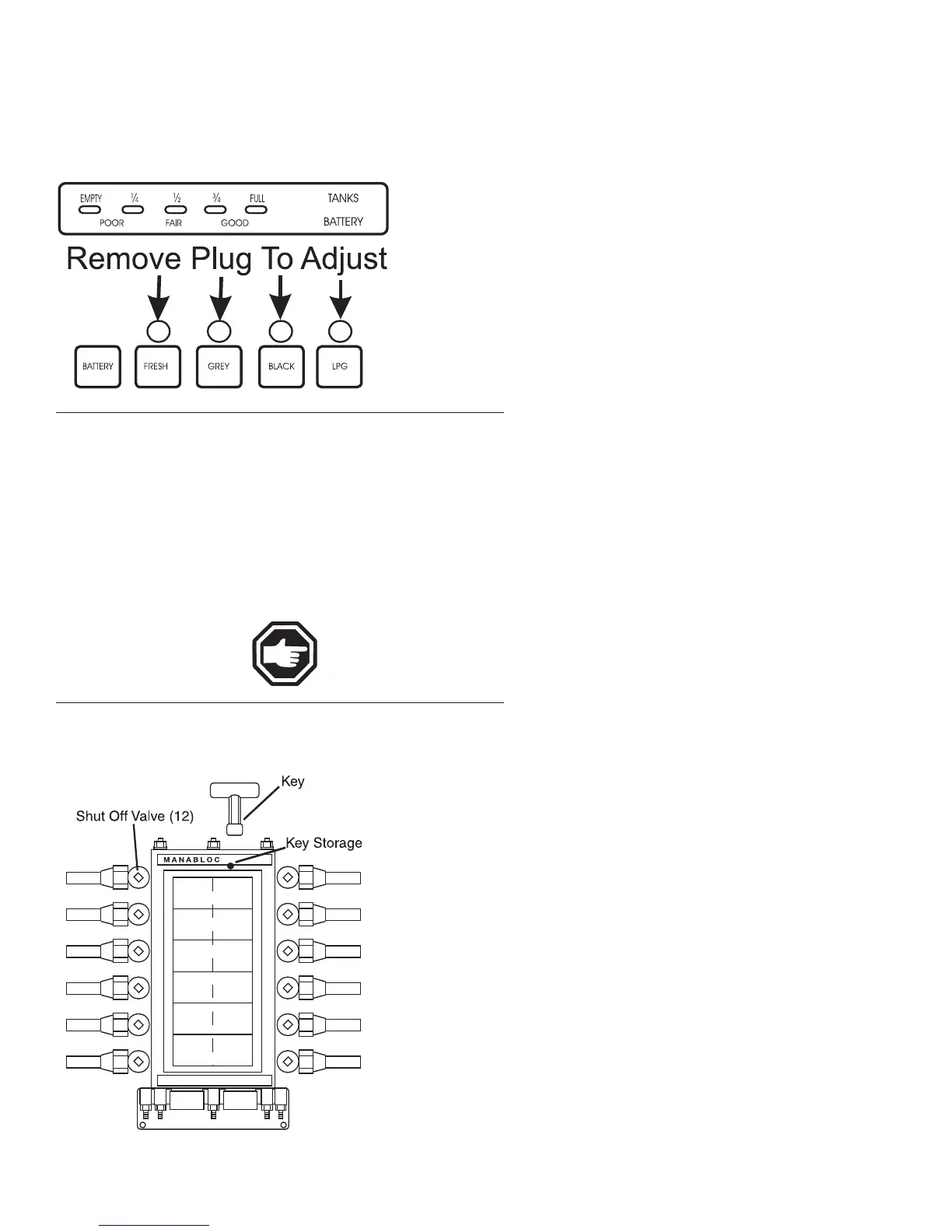

The Manibloc water manifold system separates the main hot
and cold lines. The main hot and cold inputs are divided into
the individual branch lines. Water flows unrestricted with no
hidden fittings located behind walls.
Each faucet or appliance water line may be turned off indi-
vidually. The hot water valves are located on the left and the
cold water valves are on the right. Use the key provided to turn
on or off any water line. When key is horizontal the water line
is open. Turning the key to the vertical position shuts that water
line off. Each water line is labeled for easy reference. Snap the
Manibloc key into the storage position after use.
Water Systems
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
WINDSOR
6•160
MANABLOC PLUMBING
MANIFOLD
WATER TANK -
FRESH WATER
FILL
