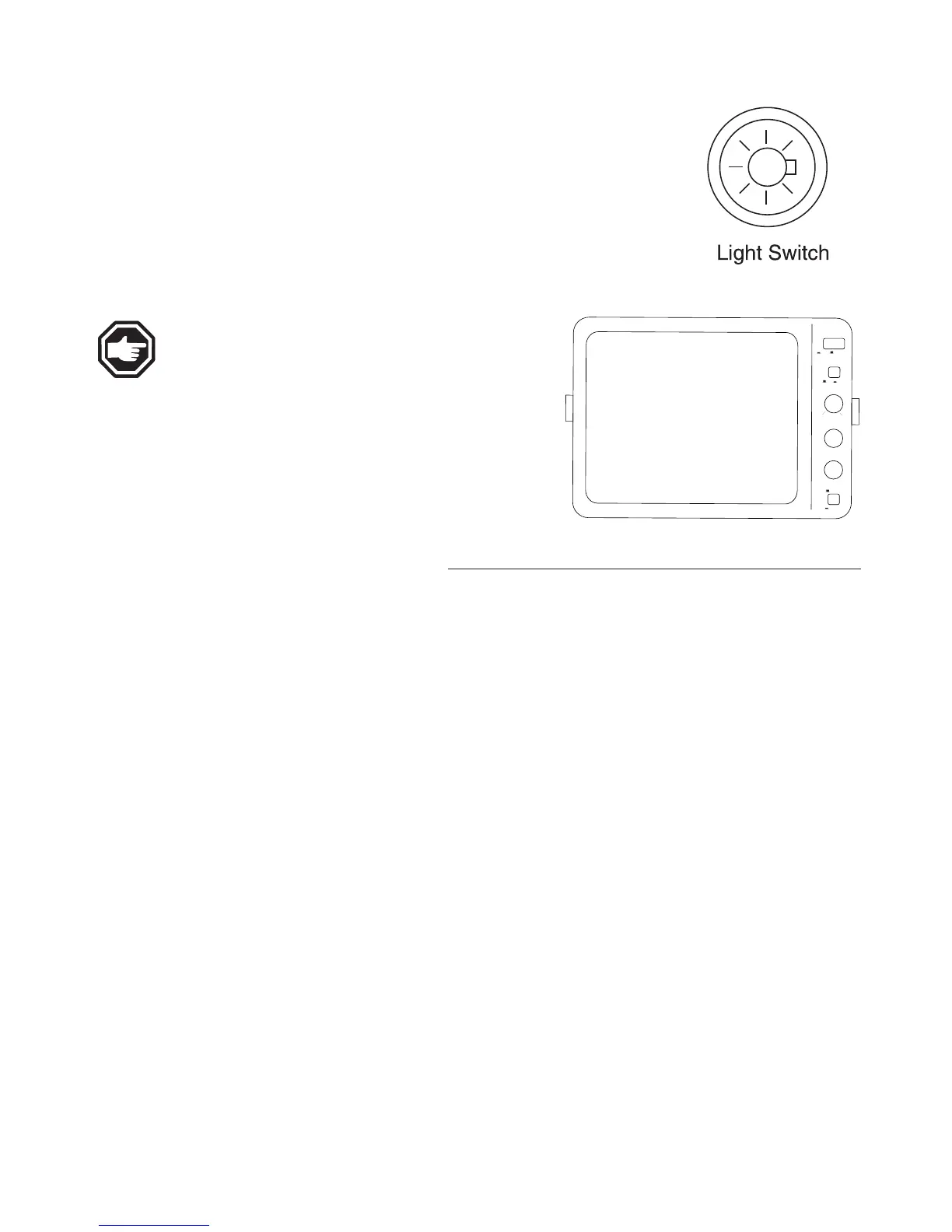

9. Light Switch:
Pull to first setting or parking lights. Pull all the way out for headlights.
Turn right or left to adjust the brightness of the dash lights when lights are
turned on. Turn all the way left for inside cockpit lights.
10. Back Up Monitor:
Used with the back up camera and will display the rear view of
the motorhome.
NOTE: Layouts will vary with difference
in models and options.
Air Conditioner Refrigeration Components:
Compressor - The compressor is belt driven from the engine through the
compressor and electronic clutch pulley. The compressor will pump freon from a
low pressure gas into a high pressure, high temperature gas. This is the start of
the refrigeration process.
Condenser - The condenser in front of the radiator is made of coils and
fins which provide rapid transfer of heat from the refrigerant as external air pass-
es over the coils. The high pressure gas is changed to a high pressure liquid.
Condenser Fan - A steady flow of cooling air is maintained across the
condenser during system operations. The fan is part of the hydraulic system.
Receiver-Drier - Freon leaves the condenser, enters the dehydrator and is
stored until needed. The drier filters out moisture in the system. It only takes one
drop of moisture to cause a malfunction in the cooling unit.
Expansion Valve - The expansion valve suppresses the refrigerant into the
evaporator according to the cooling requirements. The pressure is reduced in the
restrictive effort of the expansion valve. A part of the valve is the capillary tube
assembly. The capillary tube is the sensing bulb at the outlet of the evaporator.
WINDSOR
9•235
