The refrigerator doors are positive lock style doors that close with a “click”
to prevent accidental door opening while traveling. When storing the
motorhome, the refrigerator doors have a storage position that locks the doors
partially open. This will help reduce odor from mold and bacteria build-up.
Use this feature. A completely closed up refrigerator in storage is a perfect
habitat for molds and bacteria to grow. To use the storage feature, open doors
approximately halfway and slide the latch into the cut-out of the strike plate.
ON/OFF Button - Press this button to
turn the refrigerator ON. Press and
hold this button to turn the refrigerator
OFF.
LED Display - Window has a light
which illuminates when any button is
pressed and remains on for 10 seconds
after button is released. Display indi-
cates operation functions and fault
codes should refrigerator malfunction.
MODE Button - Press and hold this
button to cycle the refrigerator
through the different modes available:
AUTO, AC, and LP modes. Release
the button when the desired mode is
displayed.
TEMP SET Button - Press and hold
the button to select the desired tem-
perature setting. Five settings are
available, from COLD to COLDEST.
Appliances
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
WINDSOR
4•99
Doors
The Refrigerator Control Panel requires 12 Volt DC to operate.

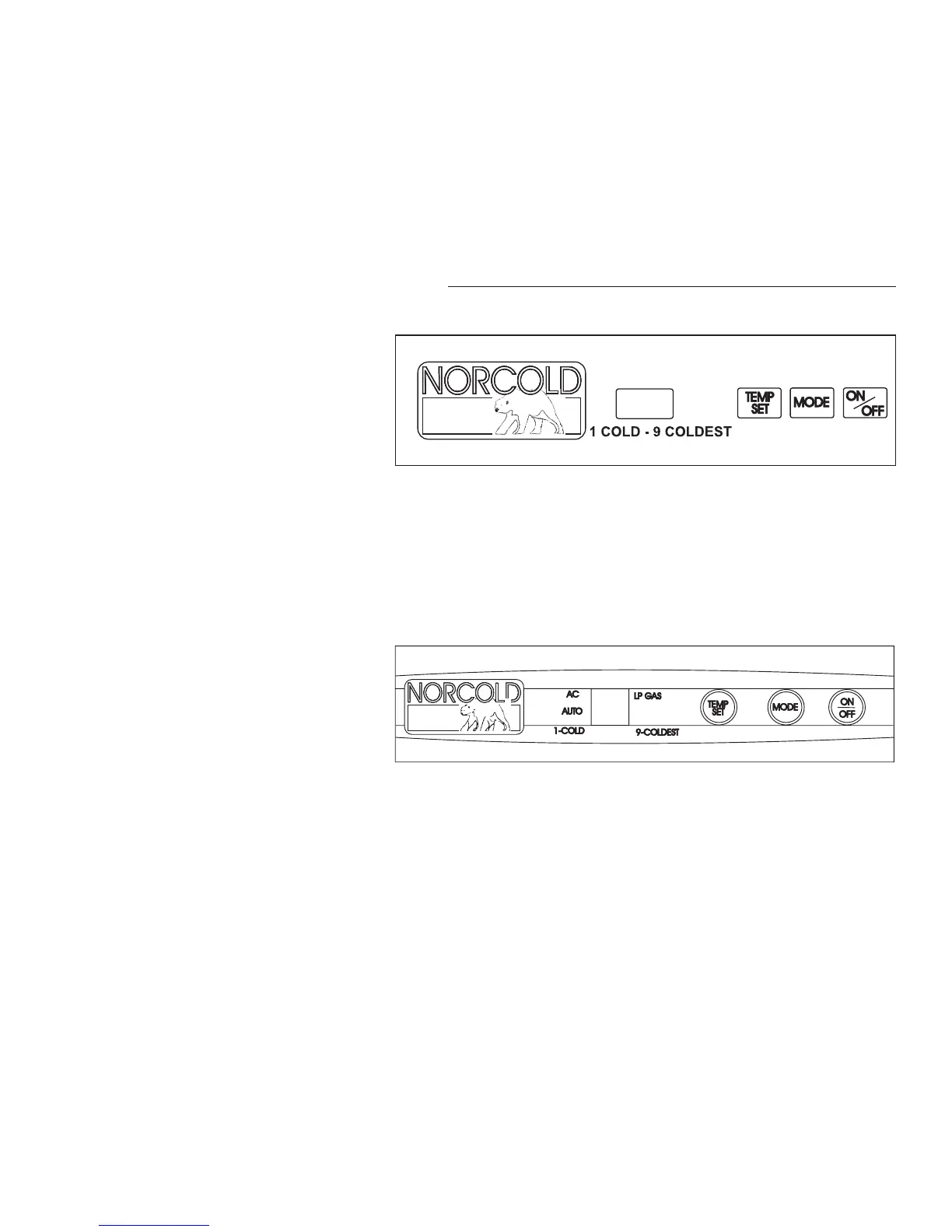

Control Panel - 1200 Series
Control Panel - 800 Series
The Refrigerator Control Panel requires 12 Volt DC to operate.
