Electrical Systems - Chassis
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
9•248

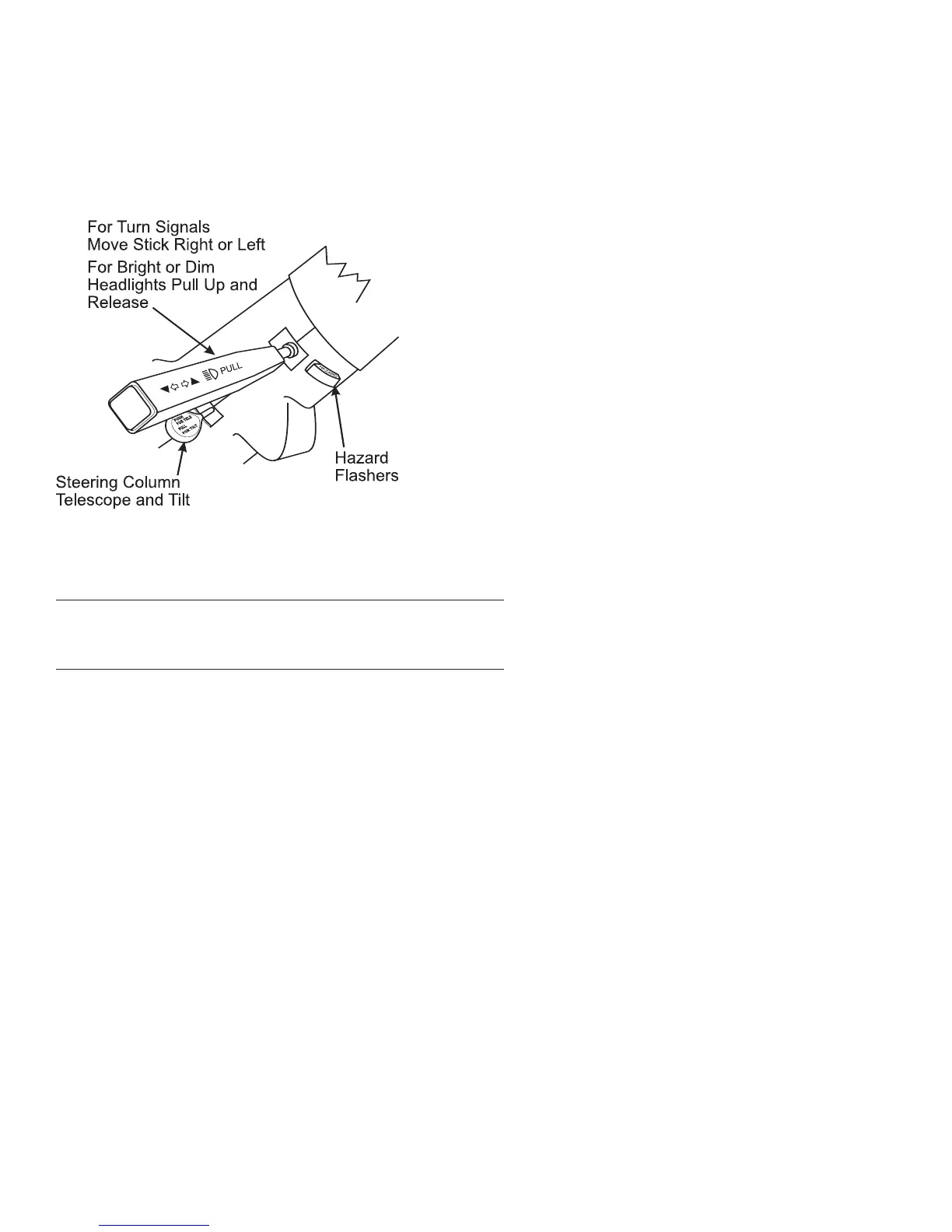

Tilt and telescope steering wheel control lever is located
on the steering column.
• To tilt the steering wheel pull the lever up. Tilt the
steering wheel where you want it. Release the lever
and it will lock the steering wheel in the new posi-
tion.
• To telescope the steering wheel push and hold the
lever down. Push down or pull up on the steering
wheel until the wheel is where you want it. Release
the lever and the steering wheel will lock in the new
position.
Turn indicator and headlight high/low dimmer control
lever is located on the steering column.
• Pushing the lever forward will activate the right
turn indicator circuits when the ignition is on.
• Pulling the lever down will activate the left turn
indicator circuits when the ignition is on.
• Pulling the lever up will select high/low beam
circuits when the head lights are ON.
The flasher button is located on the steering column.
• To turn four way flasher on pull out on flasher button.
• To shut off flasher push button inward.
The front electrical panel is located on the roadside, ahead of the front
wheel. It contains the fuses, self resetting supply circuit breakers, solenoid and
relays.
The automotive fuses and emergency flashers are located in the front electri-
cal panel. The fuses are the standard plug-in type (ATO). When a fuse
“BLOWS,” the wire in middle of the plastic case will be broken. A bad or
blown fuse must be replaced with a fuse of the same rating and type. Using a
fuse of a different type rating will defeat the circuit protection provided by the
fuse, which could result in damage to the motorhome’s electrical system. If a
fuse has been replaced and it “BLOWS” repeatedly, that may be an indication
that a fault exists or an electronic component has failed. It is recommended that
the motorhome be taken to a qualified RV technician before any future use to
diagnose and repair the problem. Circuits are identified on the fuse label located
on the inside of the electrical compartment door.
WINDSOR
STEERING
COLUMN
Tilt & Telescope
Hazard Flasher
FUSES & CIRCUITS
- CHASSIS
Distribution Panel -
Front
