Electrical Systems - Chassis
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
9•249

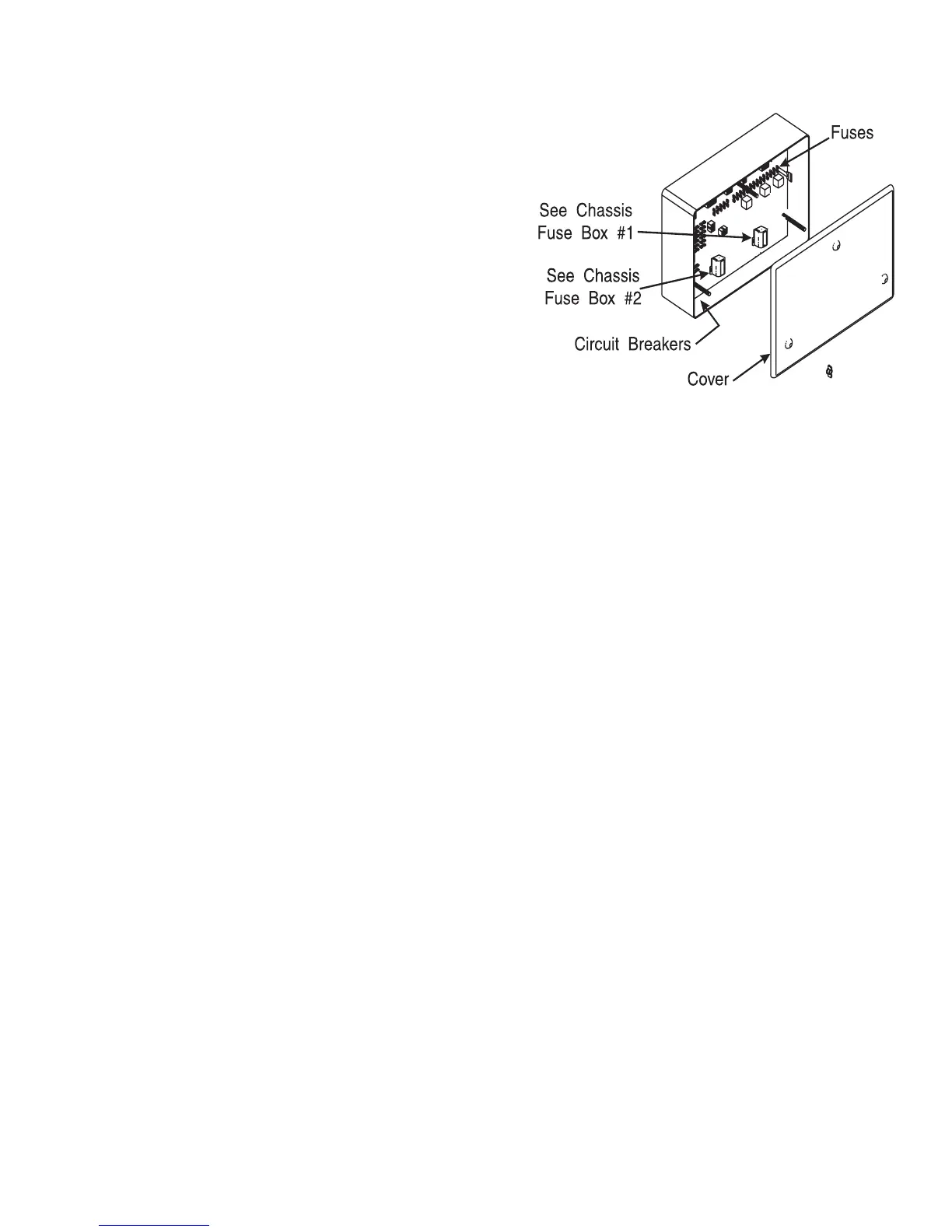

Circuit Breakers And Fuses
House:
1. Bay Door Locks - 10 amp Fuse
2. LP/CO Detector - 3 amp Fuse
3. Power Seat (Driver) -15 amp Circuit Breaker
4. Power Seat (Passenger) -15 amp Circuit Breaker
5. Storage Lights - 15 amp Fuse
6. Service Lights/LP SOL -15 amp Fuse
7. Auxiliary Start/TV AMP -7.5 amp Fuse
8. Cigarette Lighter -15 amp Fuse
9. Map Lights -7.5 amp Fuse
10. C.B. Radio -2 amp Fuse
11. Engine Block Heater -15 amp Fuse
12. Dash Fans -15 amp Fuse
Chassis:
13. Step Switch -7.5 amp Fuse
14. Step Motor -25 amp Fuse
15. Reserved
16. Power Visors -15 amp Fuse
17. Air Leveling -15 amp Fuse
18. Step Slide -15 amp Fuse
19. Air Leveling (Comp) -15 amp Fuse
Accessories:
20. Rear Vision -5 amp Fuse
21. Leveling Jacks -15 amp Fuse
22. Air Dumps -15 amp Fuse
23. Auxiliary Lights -15 amp Fuse
24. Spot Light -15 amp Fuse
Ignition
25. Air Conditioner -20 amp Fuse
26. Jack/Antenna Warning Lights -5 amp Fuse
27. TV IGN Relay -7.5 amp Fuse
28. Slide-Out IGN Relay
29. Mirror Heater -15 amp Fuse
30. Mirror Control -1 amp Fuse
31. Adjustable Pedals
32. Reserved
33. Step/ISO/Vac Sense -7.5 amp Fuse
Marker (Chassis)
34. Marker Lights -7.5 amp Fuse
Circuit Breakers
Refrigerator (2-Way/3-Way) -5/30A
WINDSOR
