Windsor Monaco - Slide Lock

• When the room is out visually inspect the wipe seal. The seal should
be clean and free of dirt or other foreign material. Keep the seal
dry. Inspect seal for tears and rips.
• In the event the slide room leaks, fully retract it. Tape the exterior
opening closed with duct tape until repairs to the motorhome can
be completed.
NOTE: Do not use any petroleum based products on the slide
seal. Petroleum based products can damage the paint and
will cause premature aging of the rubber seal.

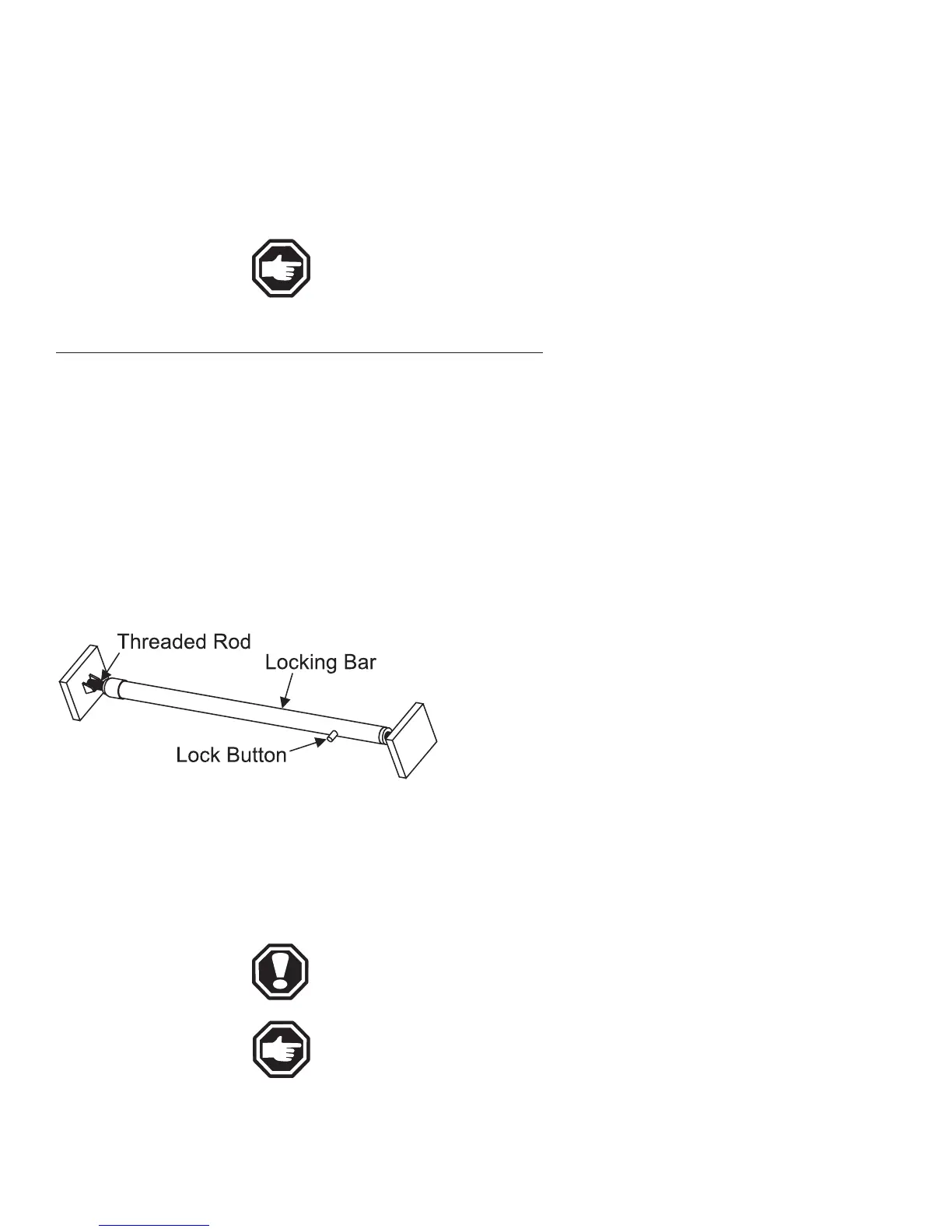

The slide lock can be useful for other functions in
the unit. It does not have to be stored when the slide
room is extended. Some useful functions include a
towel bar in the shower to dry wet clothing or an extra
closet rod.
If the slide bar is used for other functions
follow a
few simple guidelines:
• Ensure the slide lock is straight as possible.
• Adjust the dimension nearest to the opening
size. DO NOT GO LARGER.
• The feet can be adjusted until they are ¼"
shorter than the opening.
• The foot on the brass bolt has 4 ½" of adjust-
ment. Foot on the silver bolt has 1 ½" of adjust-
ment.
• Ensure slide lock is tightly in place before
use. Use caution when tightening if used on
areas not reinforced.
Tip:
The silver bolt should face the outside wall, and then a clockwise rotation
will increase tension.
CAUTION: Do not work on the slide-out system unless the
battery is disconnected.
NOTE: Do not leave the slide-out in the extended position
during severe weather. Conditions such as high winds or
heavy rain may cause damage to an extended slide-out.
