Windsor Monaco - Page 261

1. Replacement kit contains one cartridge and one O-ring.
2. Loosen and remove the old cartridge. Use strap wrench, if necessary.
3. Remove and discard the O-ring from the dryer base.
4. Inspect and clean the seal seat. Repair any minor damage.
NOTE: If the seats are damaged so badly that a tight
seal cannot be maintained, replace the air dryer.
5. Lubricate the O-ring on the stem with a thin layer of grease.
6. Lubricate the cartridge seal with a thin layer of grease.
7. Thread the replacement cartridge onto the base until the seal
touches the base. Tighten the cartridge ONE additional turn.
DO NOT OVER TIGHTEN.
Chassis Information
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
WINDSOR
10•261

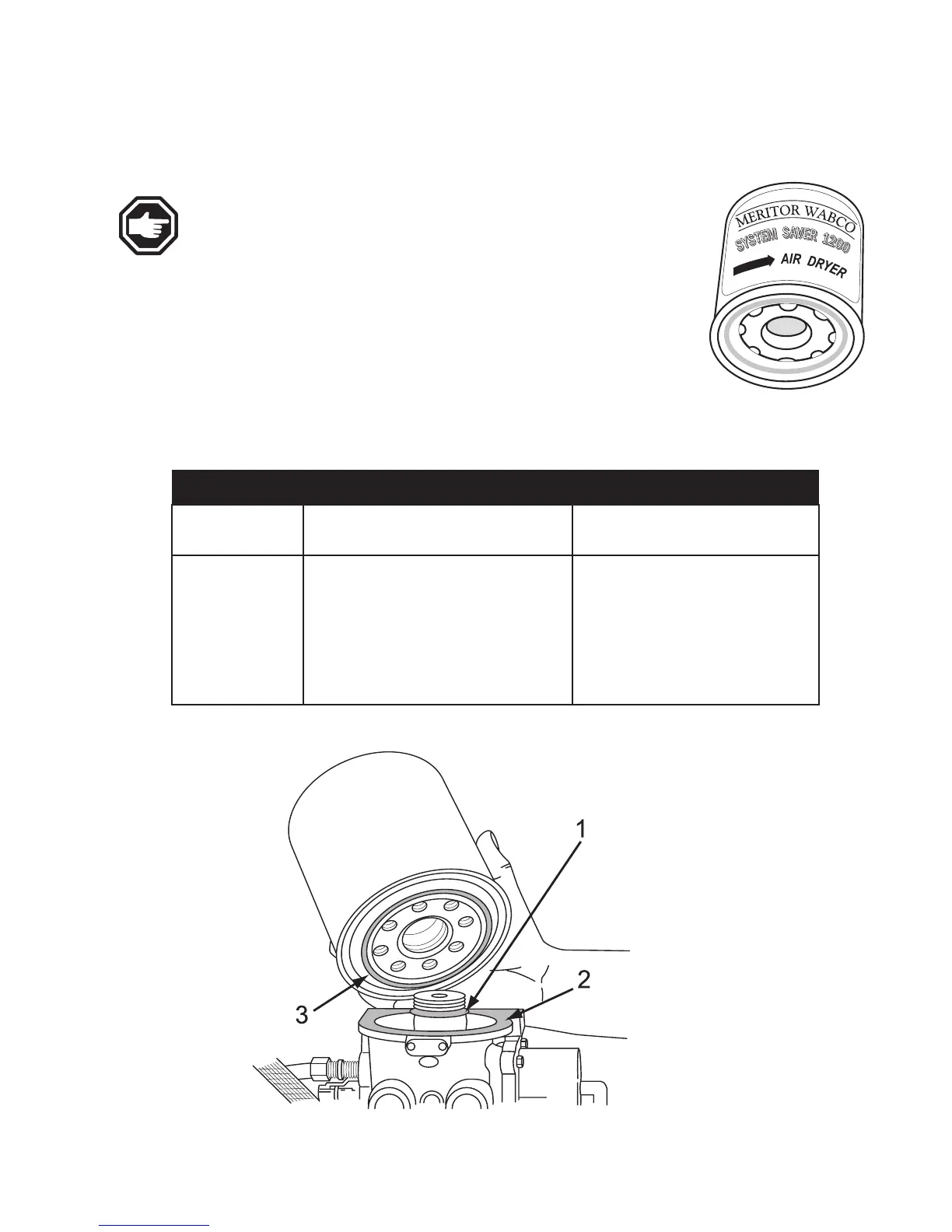

Desiccant Cartridge
Components When to replace Why
Desiccant
Cartridge
Every two to three years. When
compressor is replaced. Water
in supply tank.
Preventive maintenance.
Contaminated cartridge.
Satruated or contaminated
cartridge, high duty cycle
(wrong application of air
dryer).
REPLACEMENT REQUIREMENTS
1. O - Ring
2. Seal Seat
3. Seal
