Chassis Information
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
WINDSOR
10•302

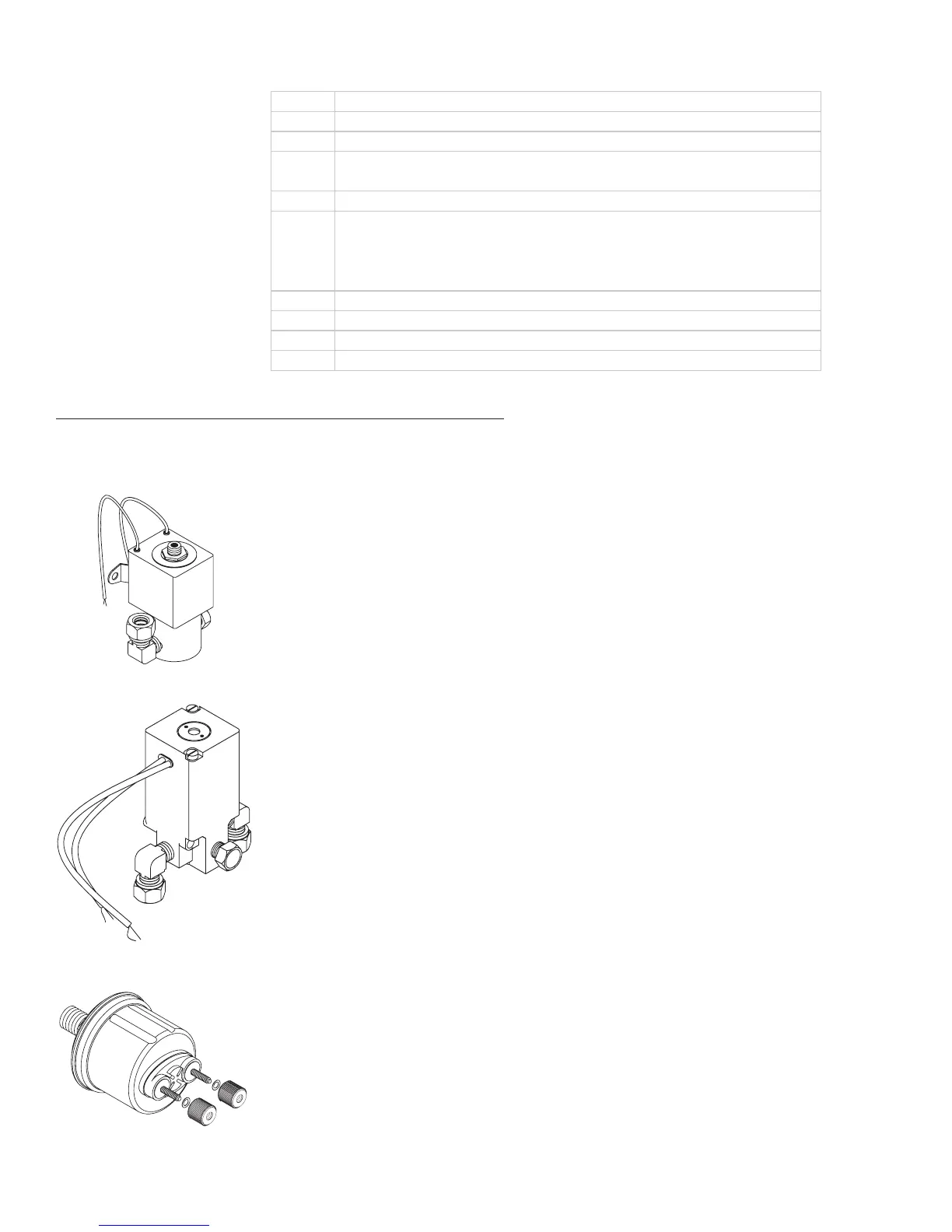

Rear Bag Dump Solenoid
• Used on hydraulic level and air level systems.
• Dumps air in air bags on hydraulic level units and is
used to dump air from tag axle on air level units.
• Located in the engine compartment on the roadside,
attached to frame below alternator.
• Type- Allen Air 36BXA-HB
Front Bag Dump or Tag Axle Solenoids
• Used on hydraulic level and tag axle units.
• Dumps air in front air bags and is used to raise or
lower tag axle.
• Located in the generator compartment on the curb-
side.
• Type- MAC 225B-601BAAA
Oil pressure Sending Unit
• One post is used for the oil pressure gauge and one
post is for the warning light.
• Type- VDO 360 0238NDO 0-100 Ohm
PARTS - COMMON SOLENOIDS & SENDERS
CL-4 U-Joints located inside the coach under the steering cover
EO Engine oil as recommended by engine manufacturer
OP Refer to operators manual
MP
Chassis lubricant should be a high quality noncorrosive multipurpose
lithium soap pressure gun lubricant that is water resistant and
designed to withstand extremely high operating temperatures
P Petroleum jelly, or a commercial battery terminal corrosion inhibitor
AF Consult Cummins Owners manual for antifreeze type
TF Transmission flui d. D exron III transmi ssi on fluid only
FF Fuel Filter
