1.7.3 Standard and LEFT engine
An engine is one of two types (refer to Figure 1-3):
•
A standard engine has the exhaust side (ES) on the right side of the engine (seen from
the driving end).
•
A LEFT engine has the exhaust side (ES) on the left side of the engine (seen from the
driving end).

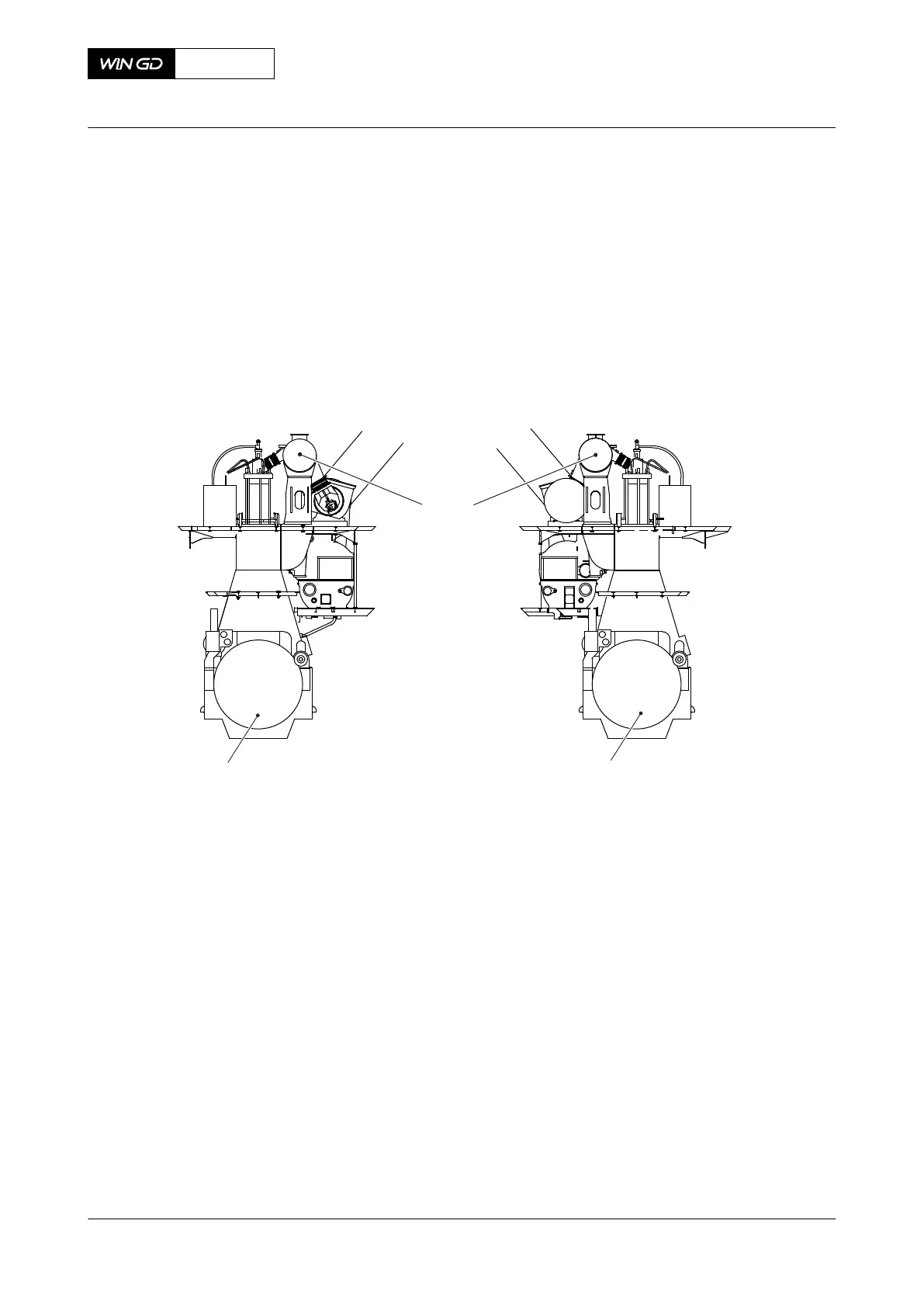

Fig 1-3 Standard and LEFT engine (generic, seen from the driving end)
Legend
001 Standard engine ES Exhaust side
002 LEFT engine FS Fuel side
003 Exhaust gas manifold
NOTE: In the Spare Parts Catalogue parts that have the mark (LEFT) are only applicable for a
LEFT engine. Parts that are applicable for the two engines types (Standard and LEFT)
have no mark.
X92DF
AA00-0000-00AAA-018L-A
Operation Manual About the engine
Winterthur Gas & Diesel Ltd.
- 35 - Issue 002 2020-08
