14
M101M8 Rugged Android Tablet User Guide

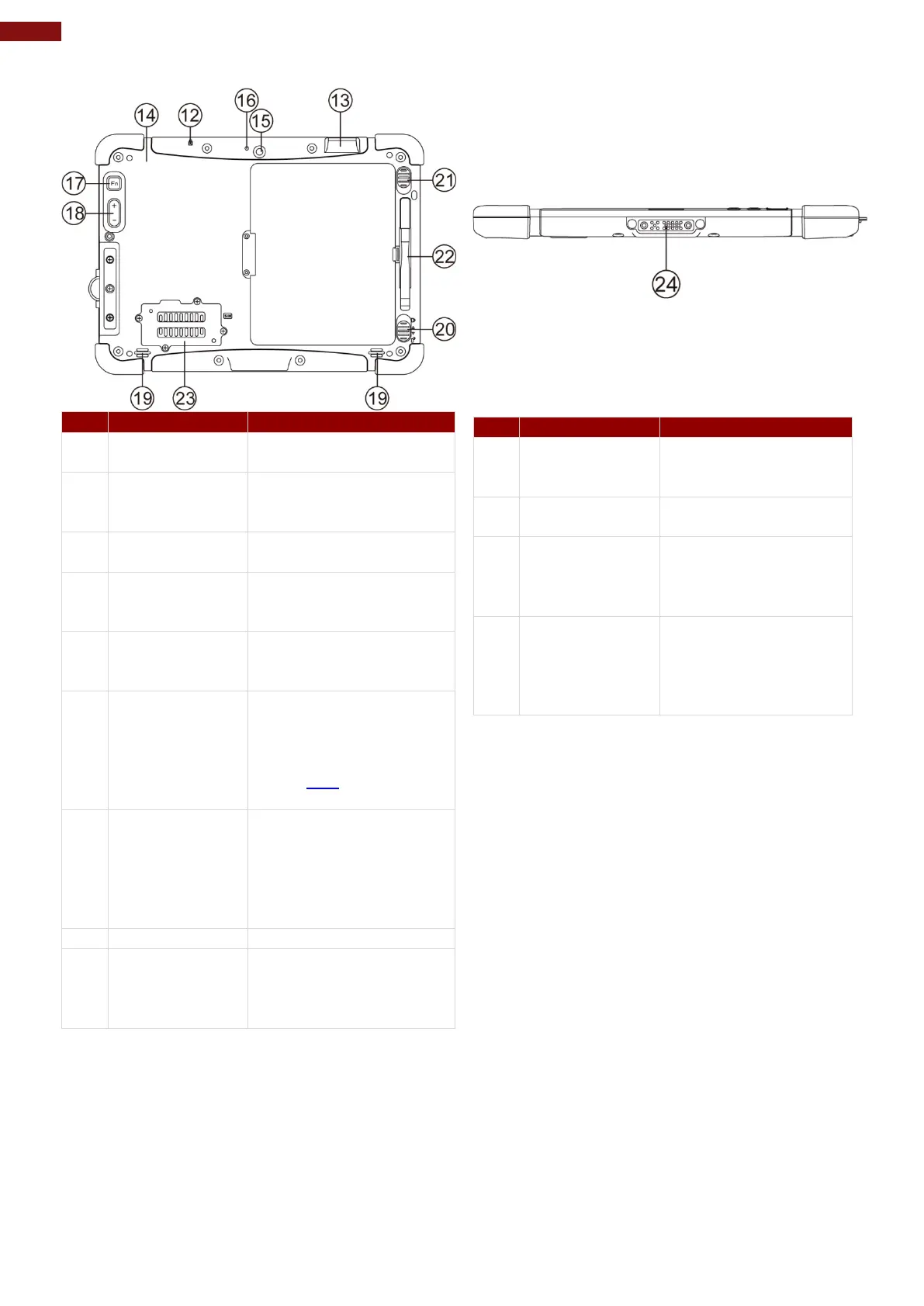

Rear:
No
Item
Description
12
Kensington
Lock Port
Provide lock access for
Kensington Lock.
13
Optional
Barcode
Barcode Scanner for
reading of 1D / 2D
barcode.
14
RFID / NFC
RFID reader for reading
of RFID tags.
15
Rear Camera
8MP Autofocus Camera.
Captures photos and
videos.
16
Camera Flash
LED camera flash to
provide flash lighting
when use with camera.
17
Fn2 Button
Scan Key (Default) or
Trigger/ Menu Key
To set up Trigger/ Menu
key function, please
check p.51 of this User
Guide.
18
Volume or
Brightness
Adjustment
Buttons
Volume Control (Default)
(+) Raise volume,
(-) Lower volume.
Brightness Control
(+) Add brightness,
(-) Decrease brightness
19
Speakers
Emits sounds
20
Battery Lock
Latch
Latch to lock the battery
in place once battery is
inserted. Not spring
loaded.
Bottom:
No
Item
Description
21
Battery Release
Slider
Spring-loaded slider
that latches the battery
in.
22
Touch Pen Slot
Pen holder slot to store
touch pen.
23
3G / LTE
Module
(Optional) / SIM
card slot
Service window to
insert Micro SIM card.
Also provide access to
3G / LTE Module.
24
Docking
Connector
Port to docking
solutions such as
vehicle docking to
provide power and
external antenna.
1.3 First-Time Operation
To get started:
1. Install SIM card.
2. Install microSD card.
3. Install the battery.
4. Charge your tablet.
5. Start the tablet.
