Overview DRS5116
Wren
2003. 09. 06 (v 1.0)
13

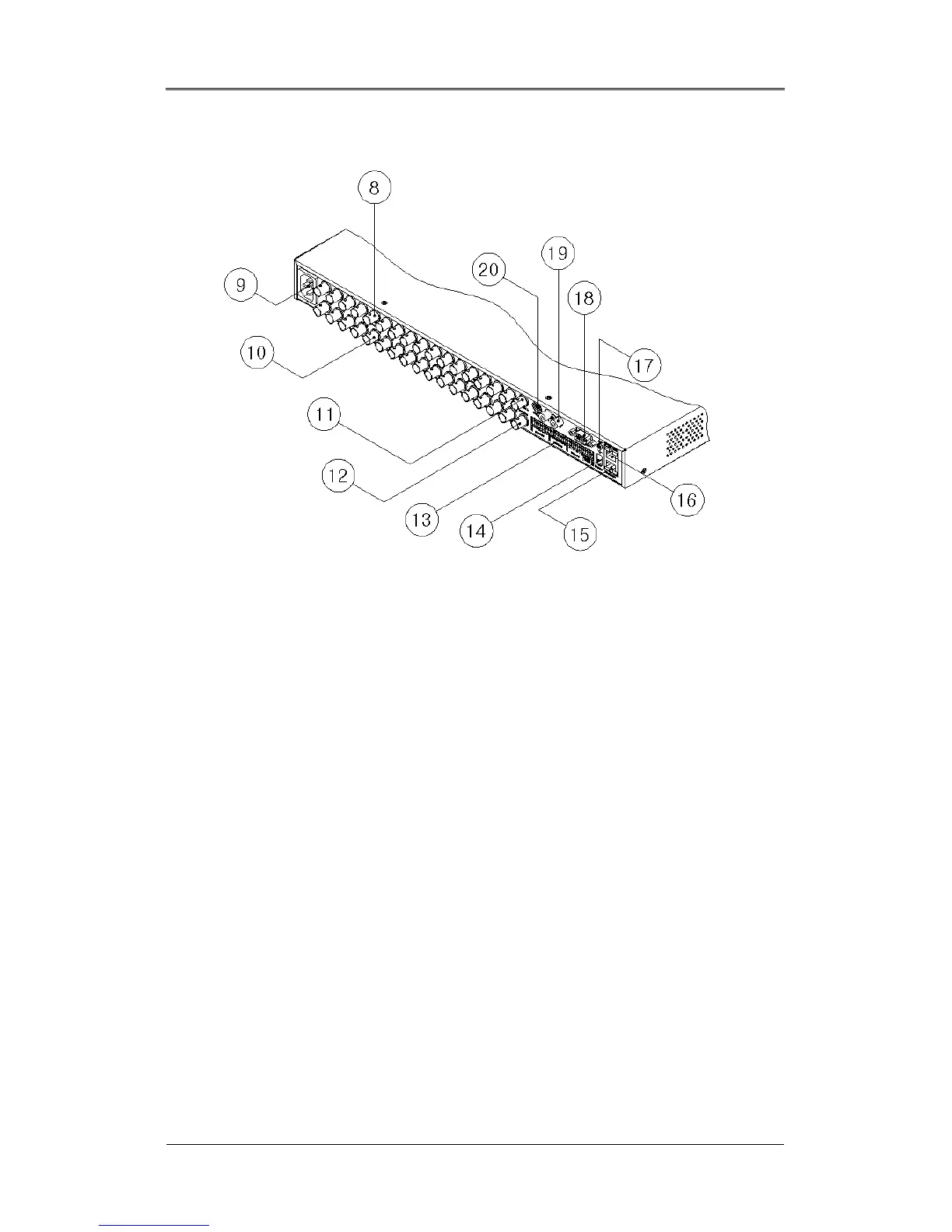

DRS5116 Rear
(8) BNC connector for video input
(9) AC power connector
(10) BNC connector for video output
(11) BNC connector for monitor A output
(12) BNC connector for monitor B output
(13) Terminal block for sensor, relay, and serial input/output
(14) IEEE1394 connecter
(15) Terminal block for RS232 & 422/485
(16) Ethernet connector
(17) GND
(18) RS232 connecter (9Pin D-Sub)
(19) Audio input/output connector
(20) S-VHS connector
