Wren DRS5004 - Rear Panel DRS5016; 5116 Models

Product Description DRS5116
Wren
2003. 09. 06 (v 1.0)
56
manager.
LOCK : Displays screen lock status
(2) Remote Controller Receiver
(3) Power Switch
For power off, press the power switch for 5 seconds.
(4) IEEE 1394 & USB Interface
Supports each one port for IEEE1394 and USB

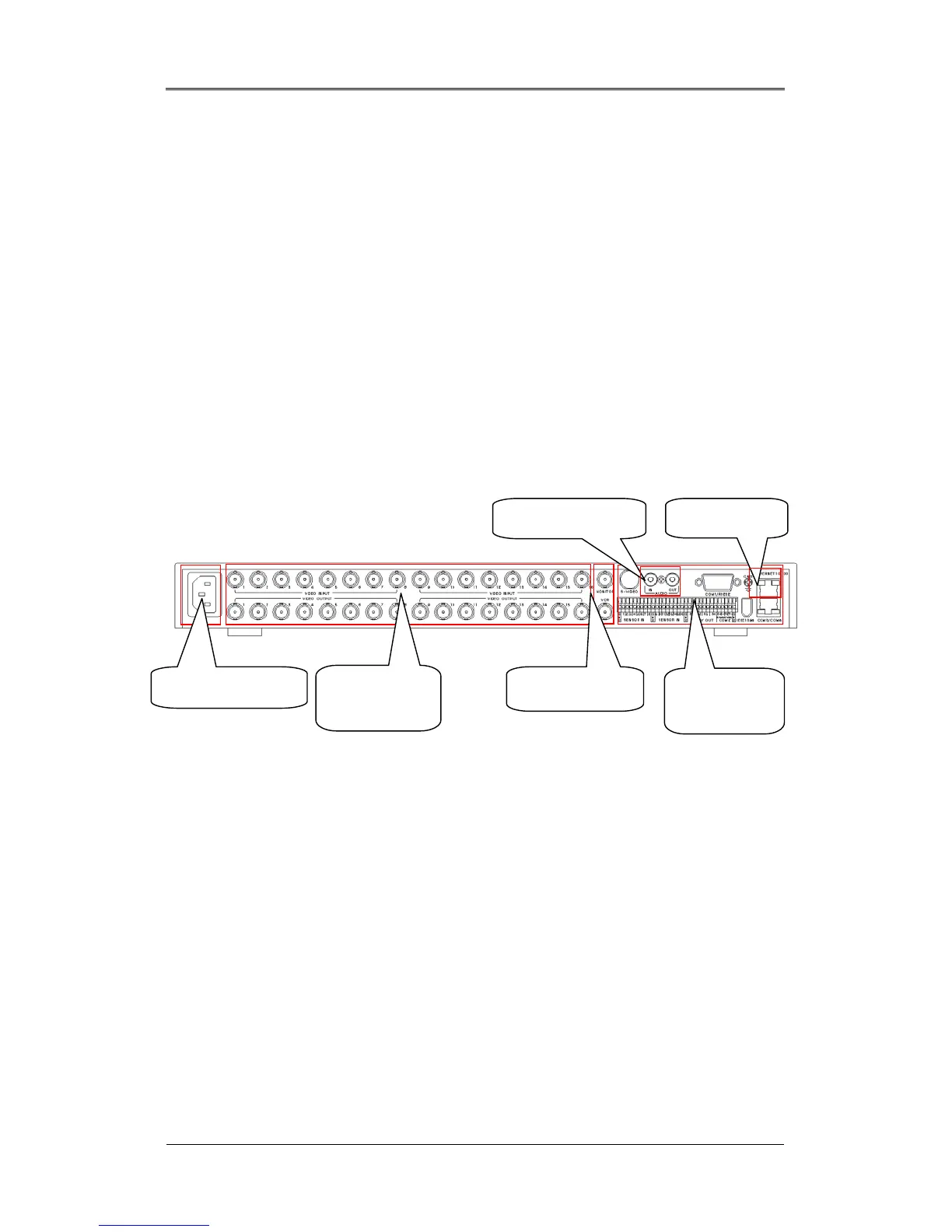

13.2. Rear Panel DRS5016 / 5116 Models
(1) Audio In/Output
1 audio input & 1 output
(2) Ehternet
(3) Power Connector
(4) Video Input & Loopback
16 video inputs & loopback port
(5) Video Output
2 video outputs (Monitor or VCR)
(6) Serial Port & DIO
Sensor In : 16 sensor inputs
Relay Out : 4 relay outputs
RS232 : RS232 9Pin D-Sub connector
RS422/485 : RS422/485 terminal block
(3) Power Connector
(4) Video Input
& Loopback
(1) Audio In/Output
(5) Video Output
(2) Ethernet
(6) Serial Port
& DIO
