Product Description DRS5116
Wren
2003. 09. 06 (v 1.0)
57
RS232 : RJ45 connector
RS422/485 : RJ45 connector
IEE1394

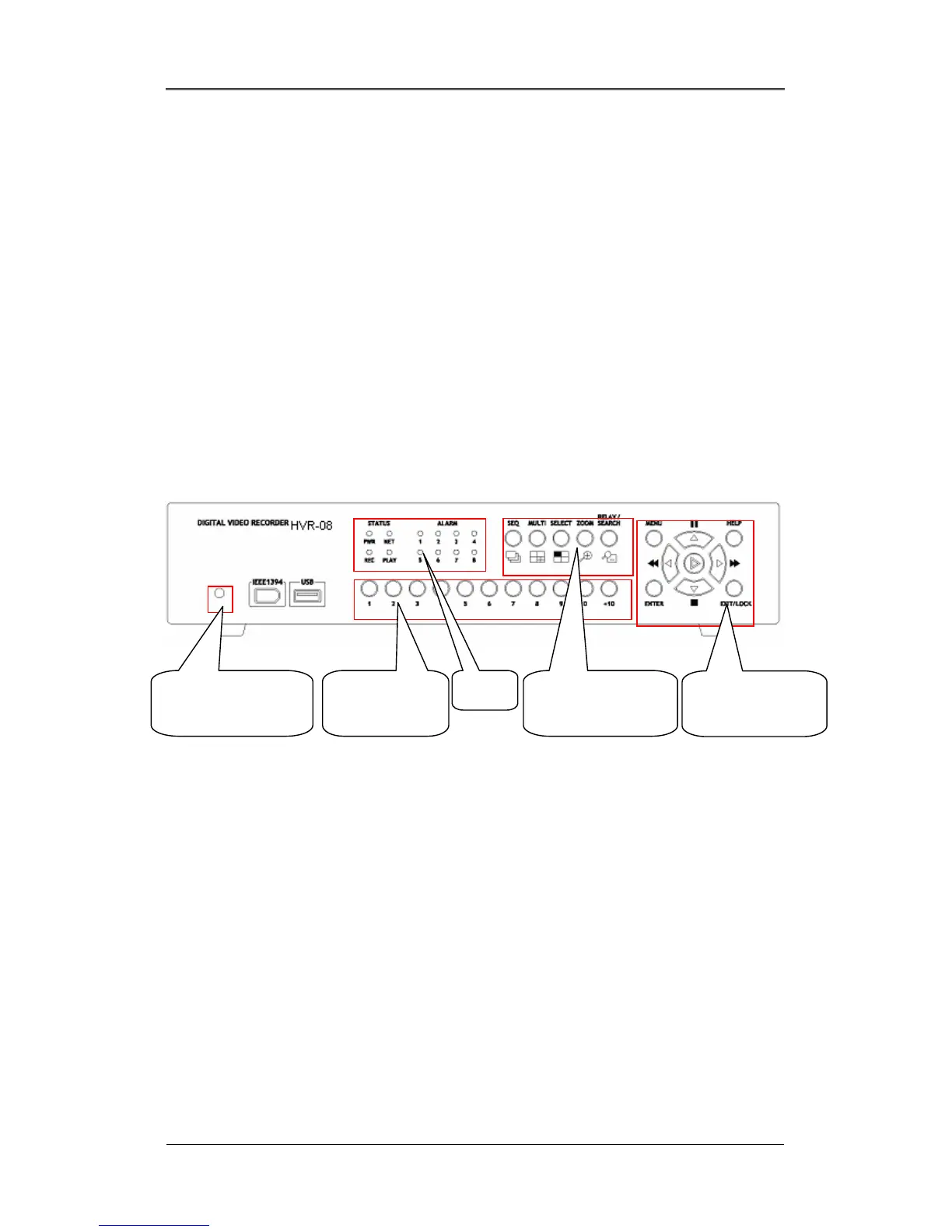

13.3. Front Panel DRS5008 Model
(5) Remote Controller Receiver
(6) Channel Selection Button
- To select a video input channel in monitoring and playback mode
(7) LED
- PWR: Displays power status. When lit, power is supplied.
- NET: Displays the status of Ethernet connection and rate of communication. When blinking, data is
being transmitted or received over the Ethernet.
- REC: Displays the image recording status. The rate of blinking indicates the speed of recording. (i.e.
When blinking rapidly, HVR-08E is recording at a high rate; when blinking slowly, the HVR-08E is
recording at a lower rate.)
- PLAY: Displays playback status. The rate of blinking indicates the speed of playback. (i.e. When
blinking rapidly, HVR-08E is playing back at a high rate; when blinking slowly, the HVR-08E is
playing back at a lower rate.)
(1) Remote Controller
Receiver
(2) Channel
Selection Button
(3) LED
(4) Function selection
button
(5) Direction/Replay
Button
