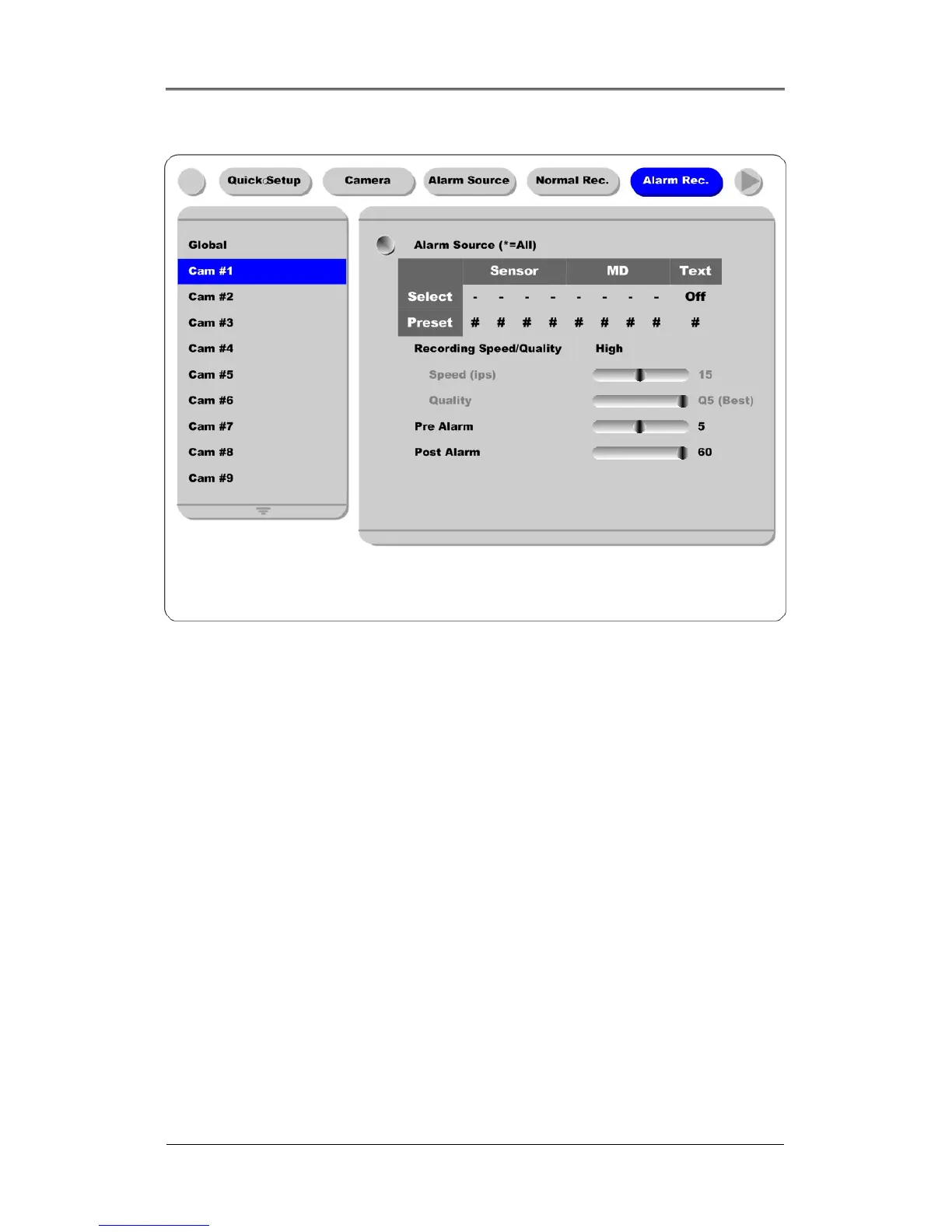

16.4.5. Setting by Channel
Alarm Source (*=All)
- With the “Alarm Source” menu, it is possible to select up to 4 sensor/MD and text input.
- For setting sensor/MD, press the related number button.
- Set text as “On/Off” with the [ARROW] button.
- Set a PTZ preset position according to the alarm input.
Recording Speed/Quality
There are four conditions; Low/Standard/High/Custom.
All conditions except “Custom” synchronize “Speed (fps)” and “Quality” automatically; “Low” setting is
1fps/Q5; “Standard” setting is 5fps/Q5; “High” setting is 15fps/Q5. When using the “Custom” setting,
Speed (fps) and Quality can be set separately.
Pre Alarm (sec)
Set a value up to 10 seconds to record video Pre-Alarm.
Post Alarm (sec)
Set a value up to 60 seconds to maintain recording conditions Post-Alarm.
