Wren DRS5004 - Front Panel DRS5004 Series Models

Product Description DRS5116
Wren
2003. 09. 06 (v 1.0)
59
- 1 monitor output & 1 VCR output
(5) Video Input
- 8 video inputs
(7) Ethernet
(8) Power

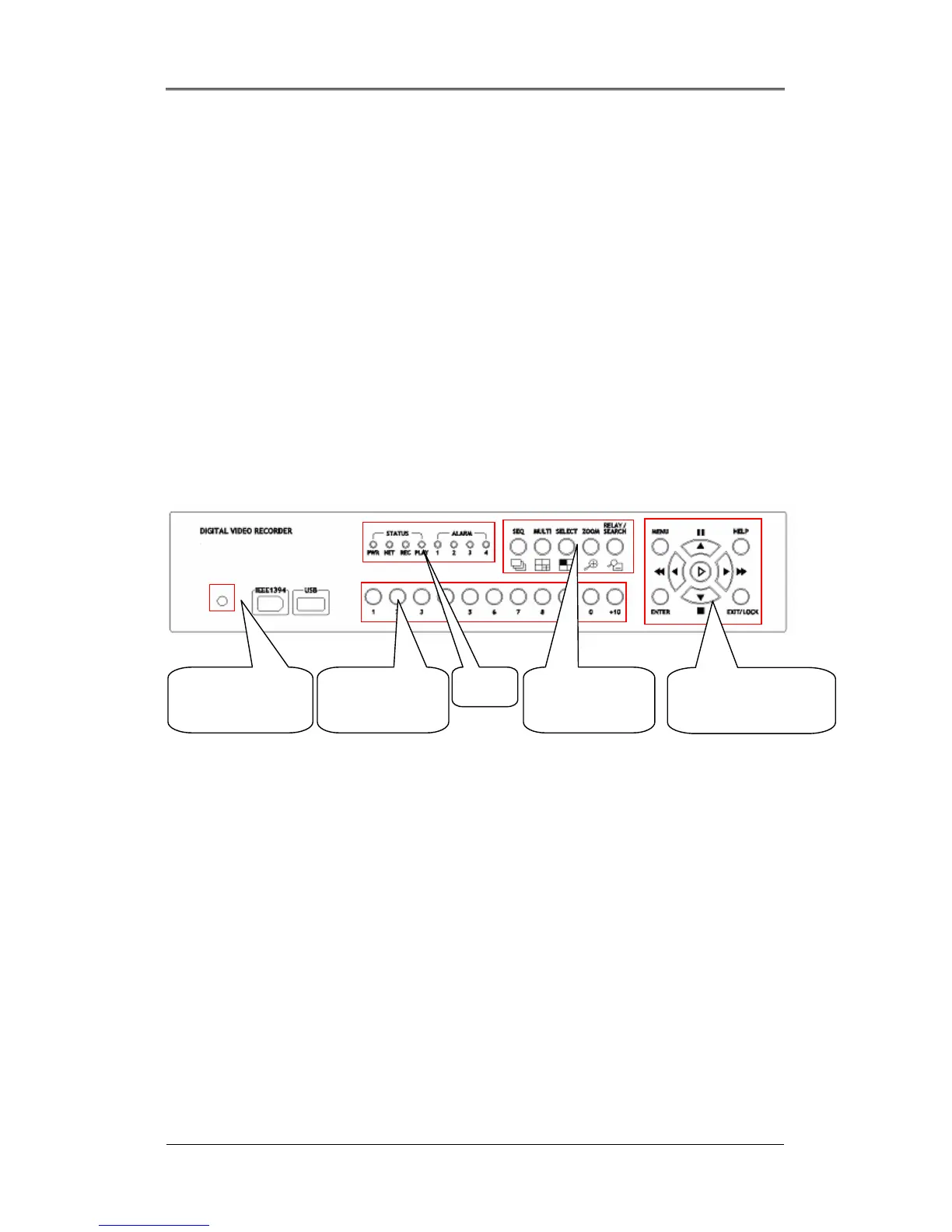

13.5. Front Panel DRS5004 Series Models
(1) Remote Controller Receiver
(2) Channel Selection Button
- To select video input channel in monitoring and playback mode
(3) LED
- PWR: Displays power status. When lit, power is supplied.
- NET: Displays the status of Ethernet connection and rate of communication. When blinking, data
being transmitted or received over the Ethernet.
- REC: Displays image recording status. The rate of blinking indicates the speed of recording. (i.e.
When blinking rapidly, HVR-04E is recording at a high rate; when blinking slowly, the HVR-04E is
recording at a lower rate.)
- PLAY: Displays playback status. The rate of blinking indicates the speed of playback. (i.e. When
blinking rapidly, HVR-04E is playing back at a high rate; when blinking slowly, the HVR-04E is
playing back at a lower rate.)
(1) Remote
Controller Receiver
(2) Channel
Selection Button
(3) LED
(4) Function
selection button
(5) Direction/Replay
Button
