Xantrex XTR 6-110 - Resistive-Controlled Voltage APG Setup

Analog Programming Mode
M370046-01 4-15
4

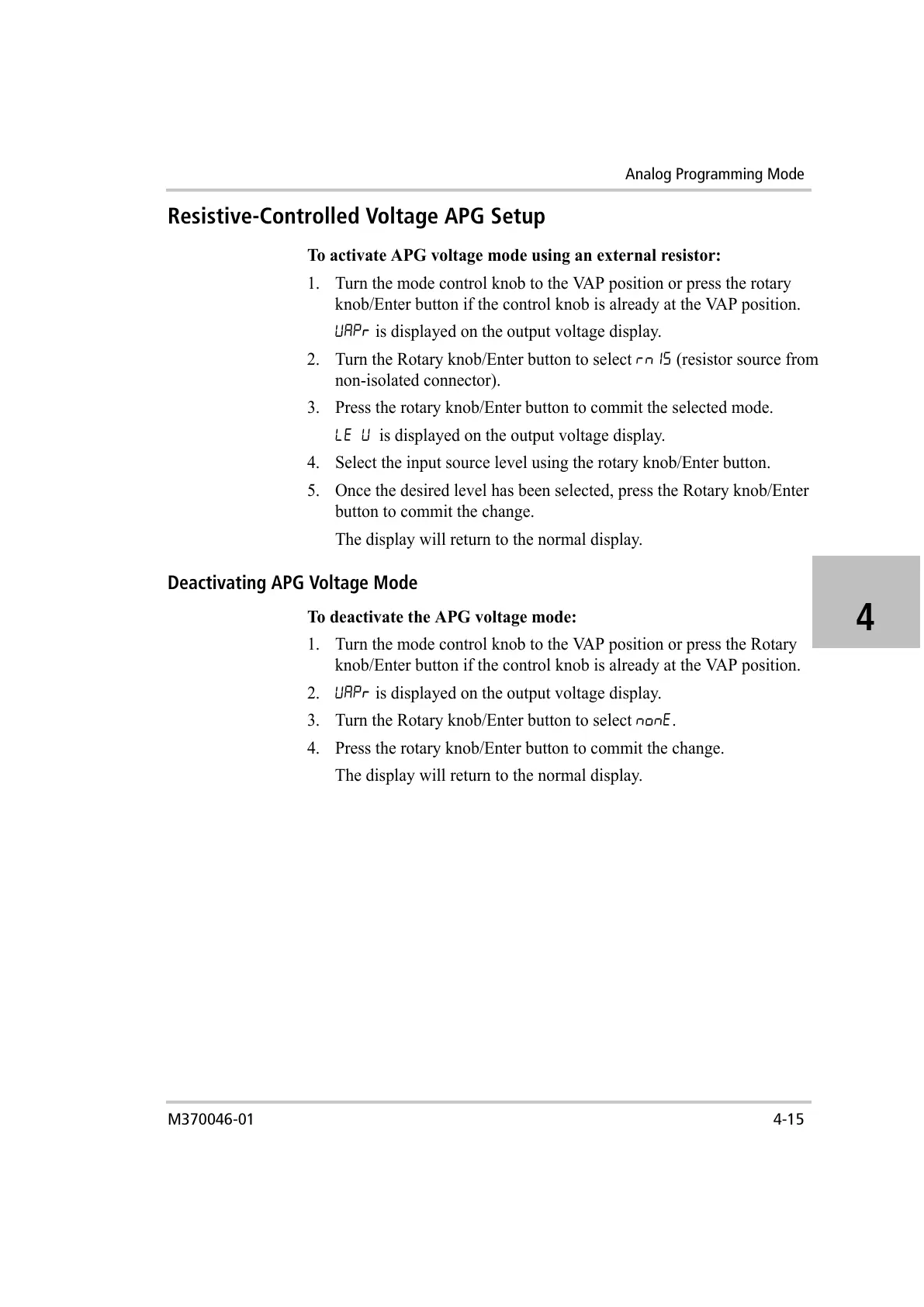

Resistive-Controlled Voltage APG Setup
To activate APG voltage mode using an external resistor:
1. Turn the mode control knob to the VAP position or press the rotary
knob/Enter button if the control knob is already at the VAP position.
UAPr is displayed on the output voltage display.
2. Turn the Rotary knob/Enter button to select Rn1S (resistor source from
non-isolated connector).
3. Press the rotary knob/Enter button to commit the selected mode.
LE U is displayed on the output voltage display.
4. Select the input source level using the rotary knob/Enter button.
5. Once the desired level has been selected, press the Rotary knob/Enter
button to commit the change.
The display will return to the normal display.
Deactivating APG Voltage Mode
To deactivate the APG voltage mode:
1. Turn the mode control knob to the VAP position or press the Rotary
knob/Enter button if the control knob is already at the VAP position.
2. UAPr is displayed on the output voltage display.
3. Turn the Rotary knob/Enter button to select nonE.
4. Press the rotary knob/Enter button to commit the change.
The display will return to the normal display.
