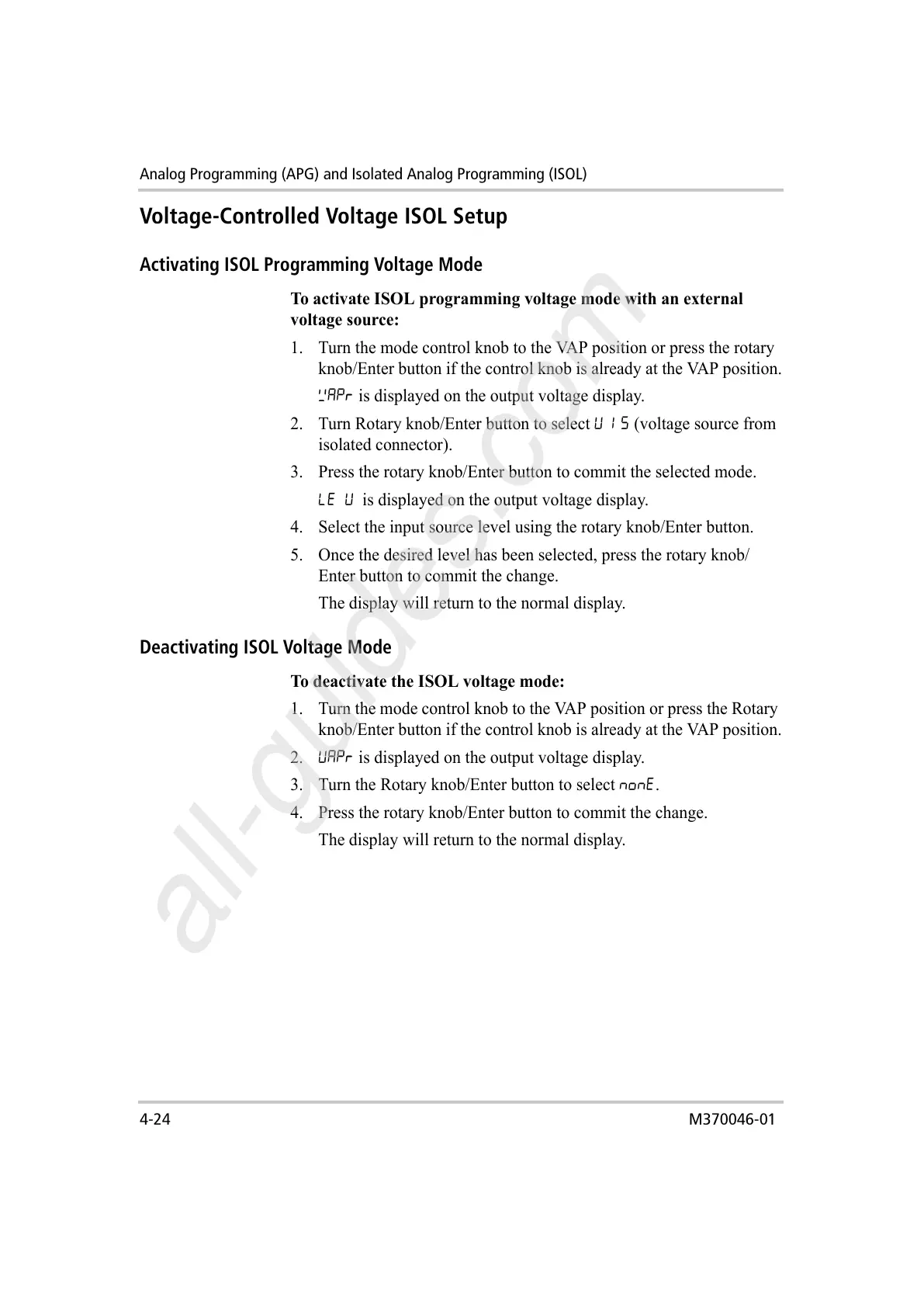

Analog Programming (APG) and Isolated Analog Programming (ISOL)
4-24 M370046-01
Voltage-Controlled Voltage ISOL Setup
Activating ISOL Programming Voltage Mode
To activate ISOL programming voltage mode with an external
voltage source:
1. Turn the mode control knob to the VAP position or press the rotary
knob/Enter button if the control knob is already at the VAP position.
WAPr is displayed on the output voltage display.
2. Turn Rotary knob/Enter button to select U IS (voltage source from
isolated connector).
3. Press the rotary knob/Enter button to commit the selected mode.
LE U is displayed on the output voltage display.
4. Select the input source level using the rotary knob/Enter button.
5. Once the desired level has been selected, press the rotary knob/
Enter button to commit the change.
The display will return to the normal display.
Deactivating ISOL Voltage Mode
To deactivate the ISOL voltage mode:
1. Turn the mode control knob to the VAP position or press the Rotary
knob/Enter button if the control knob is already at the VAP position.
2. UAPr is displayed on the output voltage display.
3. Turn the Rotary knob/Enter button to select nonE.
4. Press the rotary knob/Enter button to commit the change.
The display will return to the normal display.
