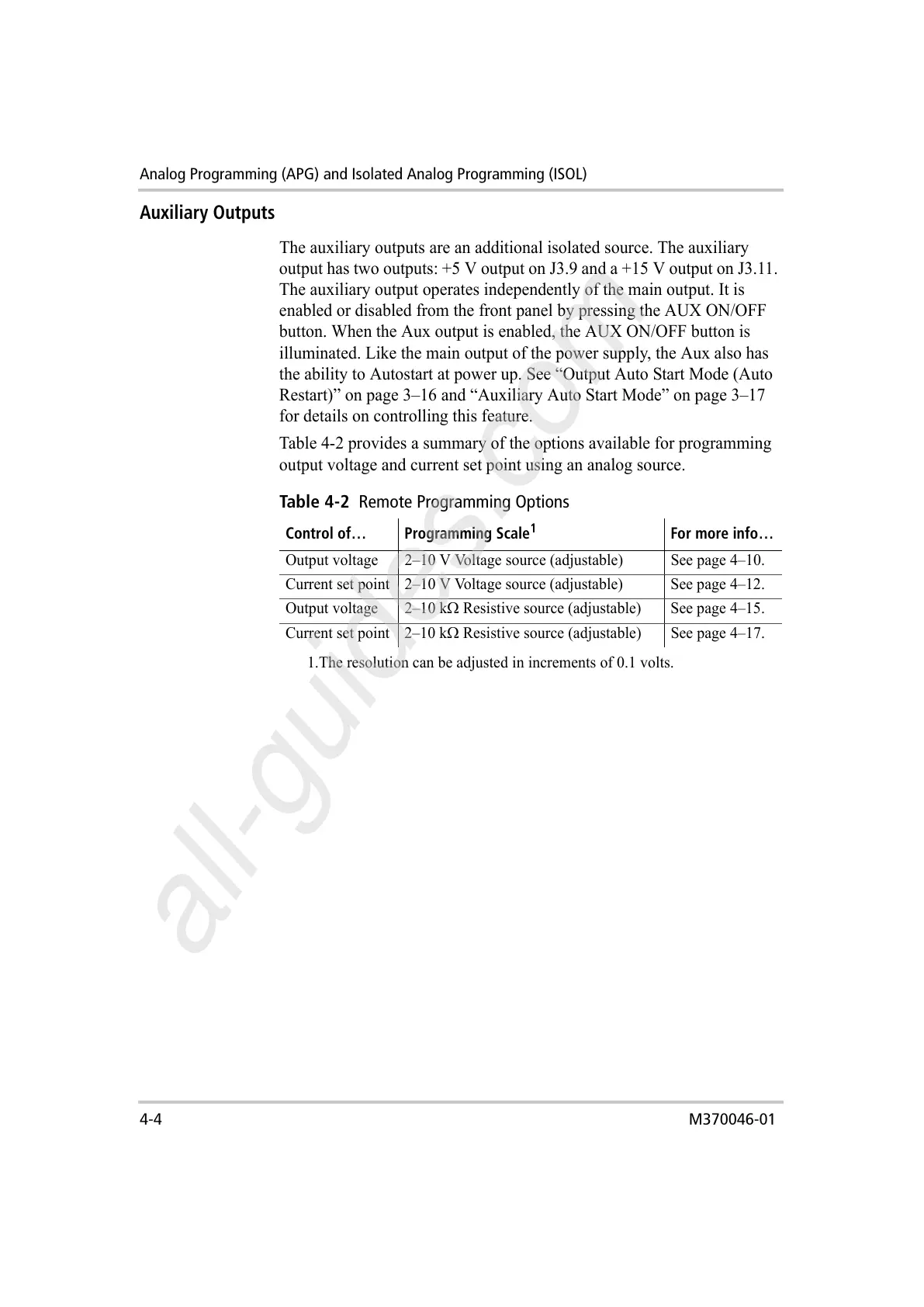

Analog Programming (APG) and Isolated Analog Programming (ISOL)
4-4 M370046-01
Auxiliary Outputs
The auxiliary outputs are an additional isolated source. The auxiliary
output has two outputs: +5 V output on J3.9 and a +15 V output on J3.11.
The auxiliary output operates independently of the main output. It is
enabled or disabled from the front panel by pressing the AUX ON/OFF
button. When the Aux output is enabled, the AUX ON/OFF button is
illuminated. Like the main output of the power supply, the Aux also has
the ability to Autostart at power up. See “Output Auto Start Mode (Auto
Restart)” on page 3–16 and “Auxiliary Auto Start Mode” on page 3–17
for details on controlling this feature.
Table 4-2 provides a summary of the options available for programming
output voltage and current set point using an analog source.
Table 4-2
Remote Programming Options
Control of… Programming Scale
1
1.The resolution can be adjusted in increments of 0.1 volts.
For more info…
Output voltage 2–10 V Voltage source (adjustable) See page 4–10.
Current set point 2–10 V Voltage source (adjustable) See page 4–12.
Output voltage 2–10 kΩ Resistive source (adjustable) See page 4–15.
Current set point 2–10 kΩ Resistive source (adjustable) See page 4–17.
