Isolated Analog Programming Mode (ISOL)
M370046-01 4-31
4

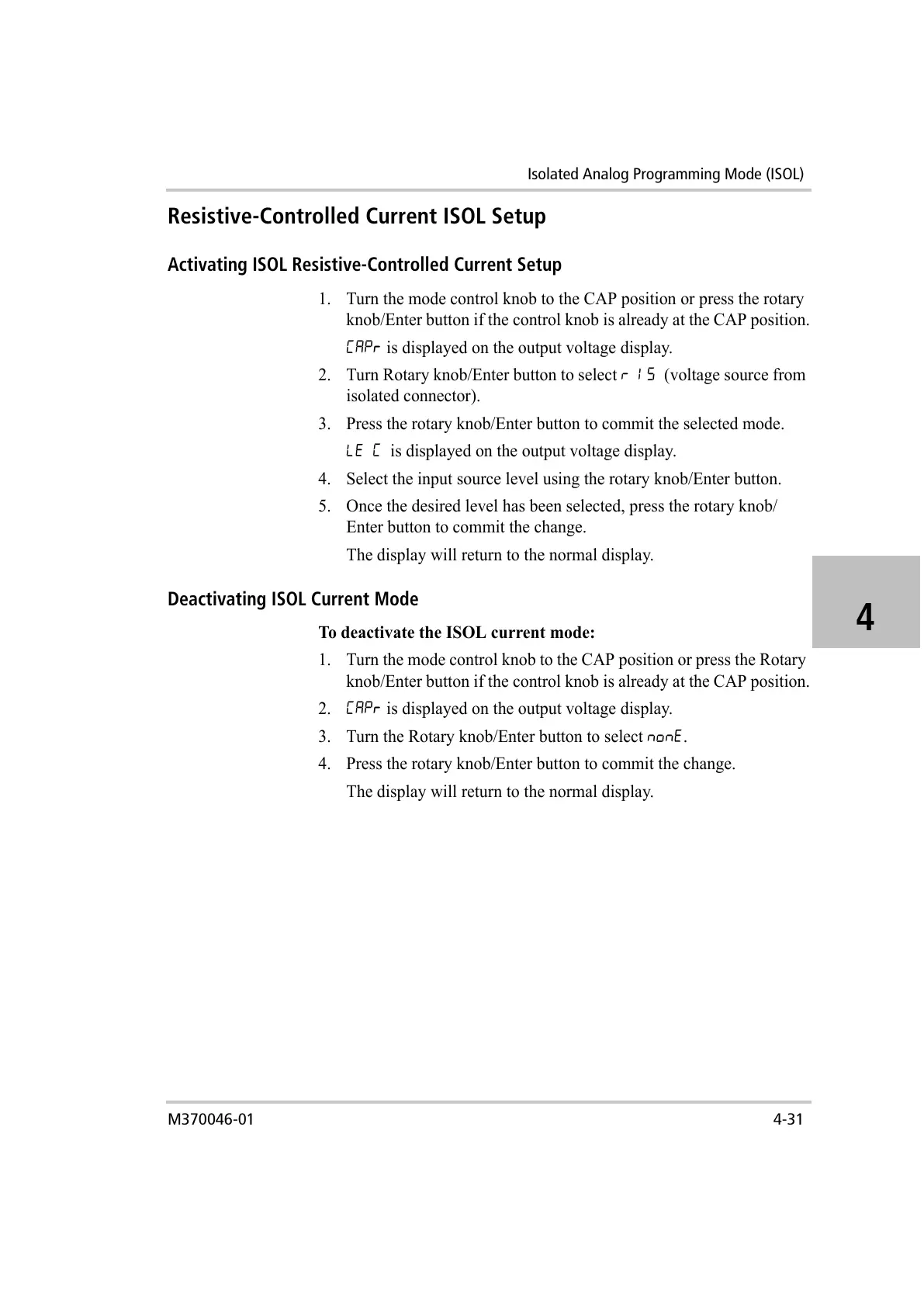

Resistive-Controlled Current ISOL Setup
Activating ISOL Resistive-Controlled Current Setup
1. Turn the mode control knob to the CAP position or press the rotary
knob/Enter button if the control knob is already at the CAP position.
CAPr is displayed on the output voltage display.
2. Turn Rotary knob/Enter button to select R IS (voltage source from
isolated connector).
3. Press the rotary knob/Enter button to commit the selected mode.
LE C is displayed on the output voltage display.
4. Select the input source level using the rotary knob/Enter button.
5. Once the desired level has been selected, press the rotary knob/
Enter button to commit the change.
The display will return to the normal display.
Deactivating ISOL Current Mode
To deactivate the ISOL current mode:
1. Turn the mode control knob to the CAP position or press the Rotary
knob/Enter button if the control knob is already at the CAP position.
2. CAPr is displayed on the output voltage display.
3. Turn the Rotary knob/Enter button to select nonE.
4. Press the rotary knob/Enter button to commit the change.
The display will return to the normal display.
