Xantrex XTR 6-110 - Figure 5-2 RS-232 Communication Cable with DB-9 Pinout; Figure 5-3 DB-25 Pinout; Table 5-4 DB-25 Pinouts

Hardware and Connection Setup
M370046-01 5-5
5
RS-232 Communication Cable with RJ-45 to DB-25
Communication control cable with DB-25 pinout (male) on the PC
side and RJ-45 shielded connector on the power supply. The cable length
should be 9.84 feet (3 m) or longer.

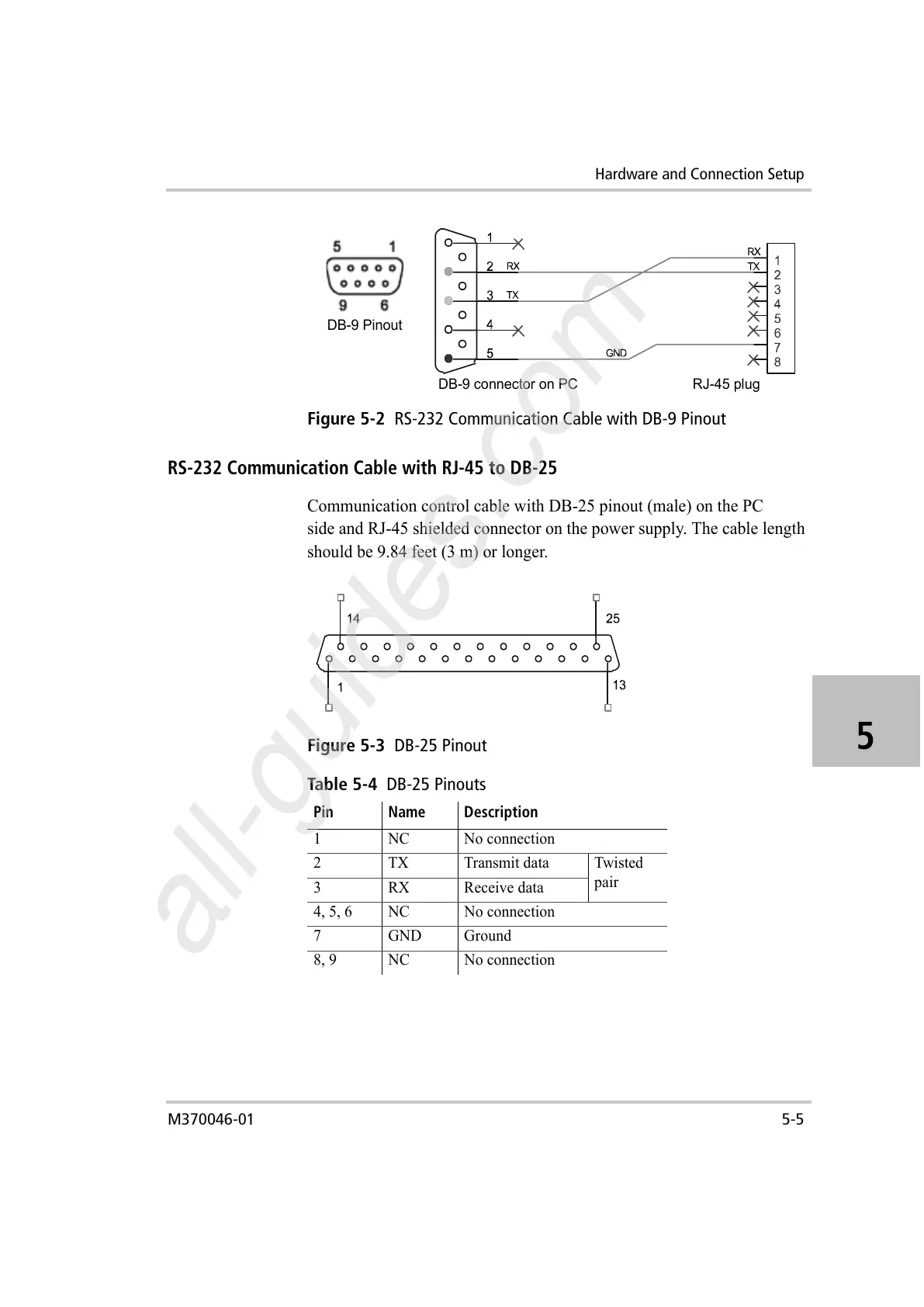

Figure 5-2 RS-232 Communication Cable with DB-9 Pinout
RJ-45 plugDB-9 connector on PC
DB-9 Pinout
Figure 5-3 DB-25 Pinout
Table 5-4 DB-25 Pinouts
Pin Name Description
1 NC No connection
2 TX Transmit data Twisted
pair
3 RX Receive data
4, 5, 6 NC No connection
7 GND Ground
8, 9 NC No connection
