Analog Programming (APG) and Isolated Analog Programming (ISOL)
4-26 M370046-01

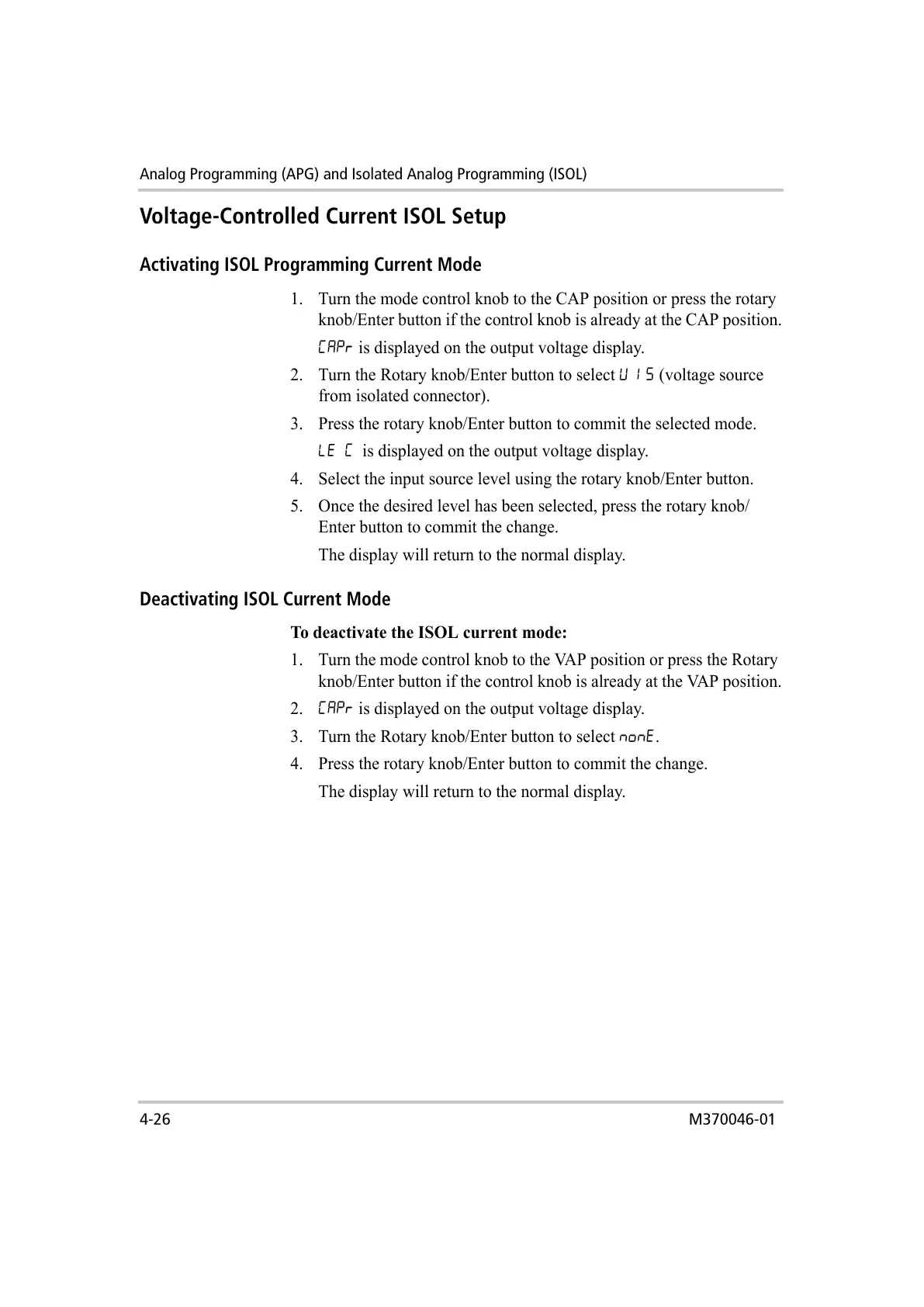

Voltage-Controlled Current ISOL Setup
Activating ISOL Programming Current Mode
1. Turn the mode control knob to the CAP position or press the rotary
knob/Enter button if the control knob is already at the CAP position.
CAPr is displayed on the output voltage display.
2. Turn the Rotary knob/Enter button to select U IS (voltage source
from isolated connector).
3. Press the rotary knob/Enter button to commit the selected mode.
LE C is displayed on the output voltage display.
4. Select the input source level using the rotary knob/Enter button.
5. Once the desired level has been selected, press the rotary knob/
Enter button to commit the change.
The display will return to the normal display.
Deactivating ISOL Current Mode
To deactivate the ISOL current mode:
1. Turn the mode control knob to the VAP position or press the Rotary
knob/Enter button if the control knob is already at the VAP position.
2. CAPr is displayed on the output voltage display.
3. Turn the Rotary knob/Enter button to select nonE.
4. Press the rotary knob/Enter button to commit the change.
The display will return to the normal display.
