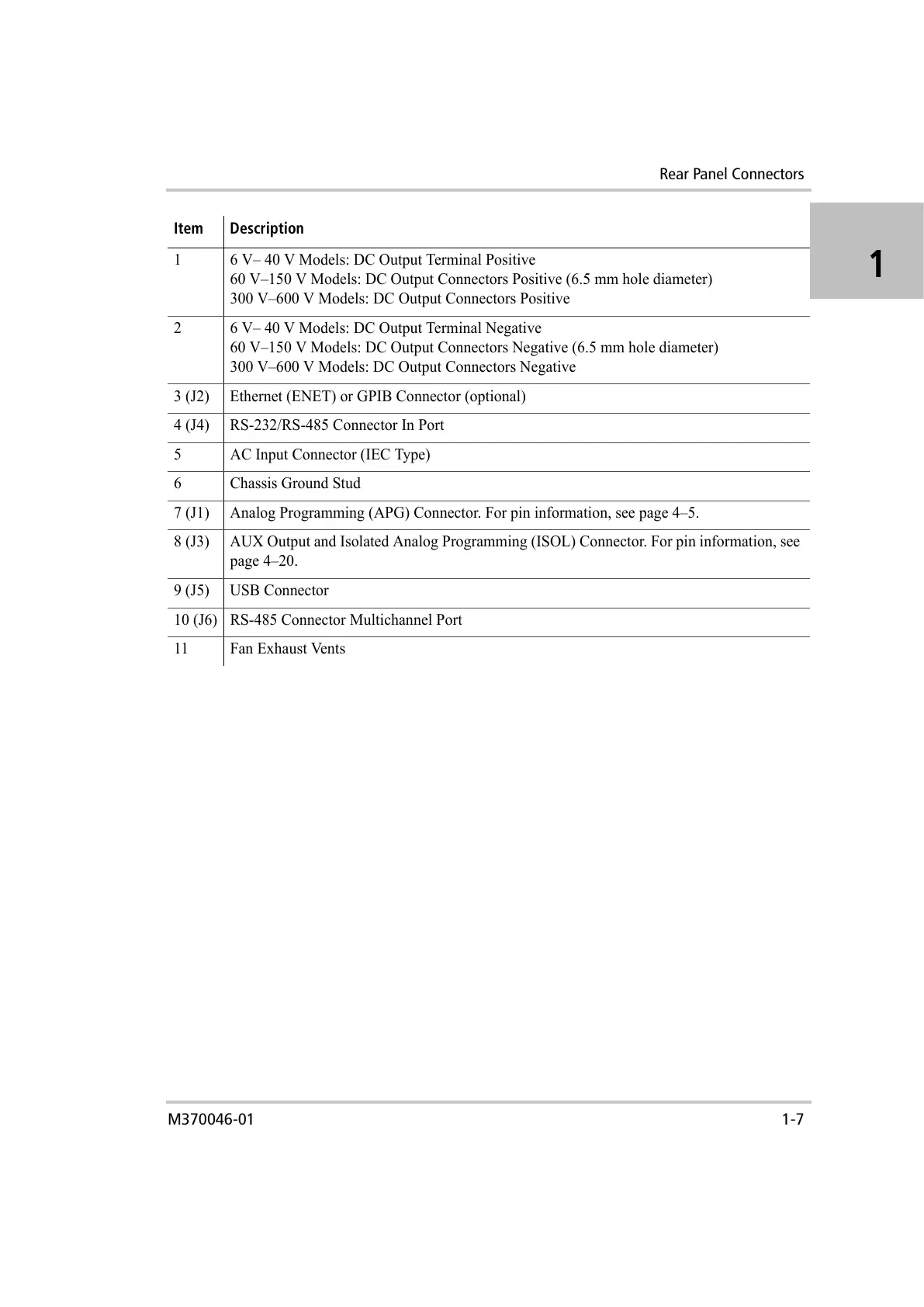

Rear Panel Connectors
M370046-01 1-7
1
Item Description
1 6 V– 40 V Models: DC Output Terminal Positive
60 V–150 V Models: DC Output Connectors Positive (6.5 mm hole diameter)
300 V–600 V Models: DC Output Connectors Positive
2 6 V– 40 V Models: DC Output Terminal Negative
60 V–150 V Models: DC Output Connectors Negative (6.5 mm hole diameter)
300 V–600 V Models: DC Output Connectors Negative
3 (J2) Ethernet (ENET) or GPIB Connector (optional)
4 (J4) RS-232/RS-485 Connector In Port
5 AC Input Connector (IEC Type)
6 Chassis Ground Stud
7 (J1) Analog Programming (APG) Connector. For pin information, see page 4–5.
8 (J3) AUX Output and Isolated Analog Programming (ISOL) Connector. For pin information, see
page 4–20.
9 (J5) USB Connector
10 (J6) RS-485 Connector Multichannel Port
11 Fan Exhaust Vents
