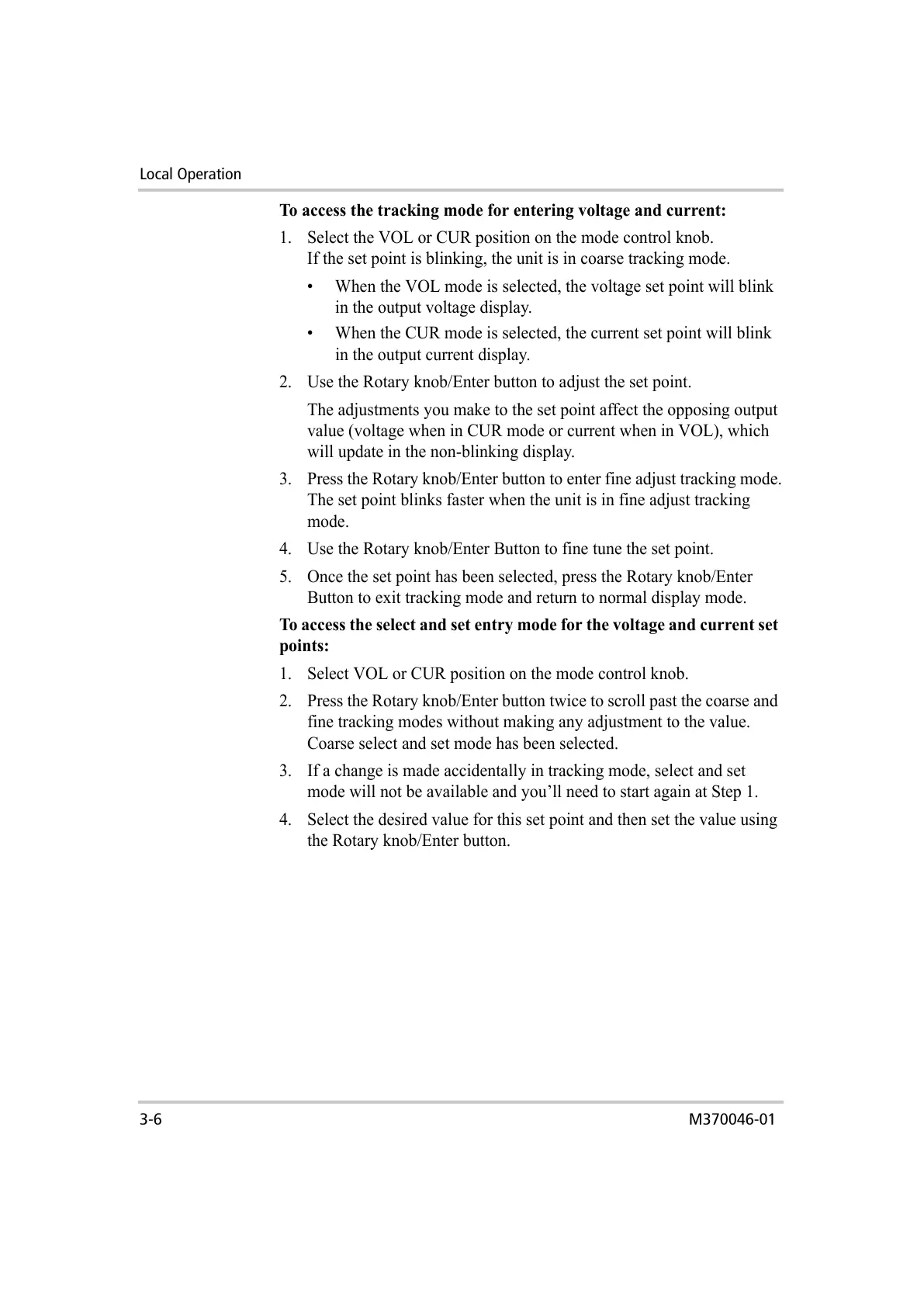

Local Operation
3-6 M370046-01
To access the tracking mode for entering voltage and current:
1. Select the VOL or CUR position on the mode control knob.
If the set point is blinking, the unit is in coarse tracking mode.
• When the VOL mode is selected, the voltage set point will blink
in the output voltage display.
• When the CUR mode is selected, the current set point will blink
in the output current display.
2. Use the Rotary knob/Enter button to adjust the set point.
The adjustments you make to the set point affect the opposing output
value (voltage when in CUR mode or current when in VOL), which
will update in the non-blinking display.
3. Press the Rotary knob/Enter button to enter fine adjust tracking mode.
The set point blinks faster when the unit is in fine adjust tracking
mode.
4. Use the Rotary knob/Enter Button to fine tune the set point.
5. Once the set point has been selected, press the Rotary knob/Enter
Button to exit tracking mode and return to normal display mode.
To access the select and set entry mode for the voltage and current set
points:
1. Select VOL or CUR position on the mode control knob.
2. Press the Rotary knob/Enter button twice to scroll past the coarse and
fine tracking modes without making any adjustment to the value.
Coarse select and set mode has been selected.
3. If a change is made accidentally in tracking mode, select and set
mode will not be available and you’ll need to start again at Step 1.
4. Select the desired value for this set point and then set the value using
the Rotary knob/Enter button.
