Xerox COLORQUBE 8570 Service Manual

October 2012
4-28
ColorQube 8570/8870 Service Manual
REP 2.3
Revised, 3rd Revision - Xerox Internal Use Only
Repairs and Adjustments

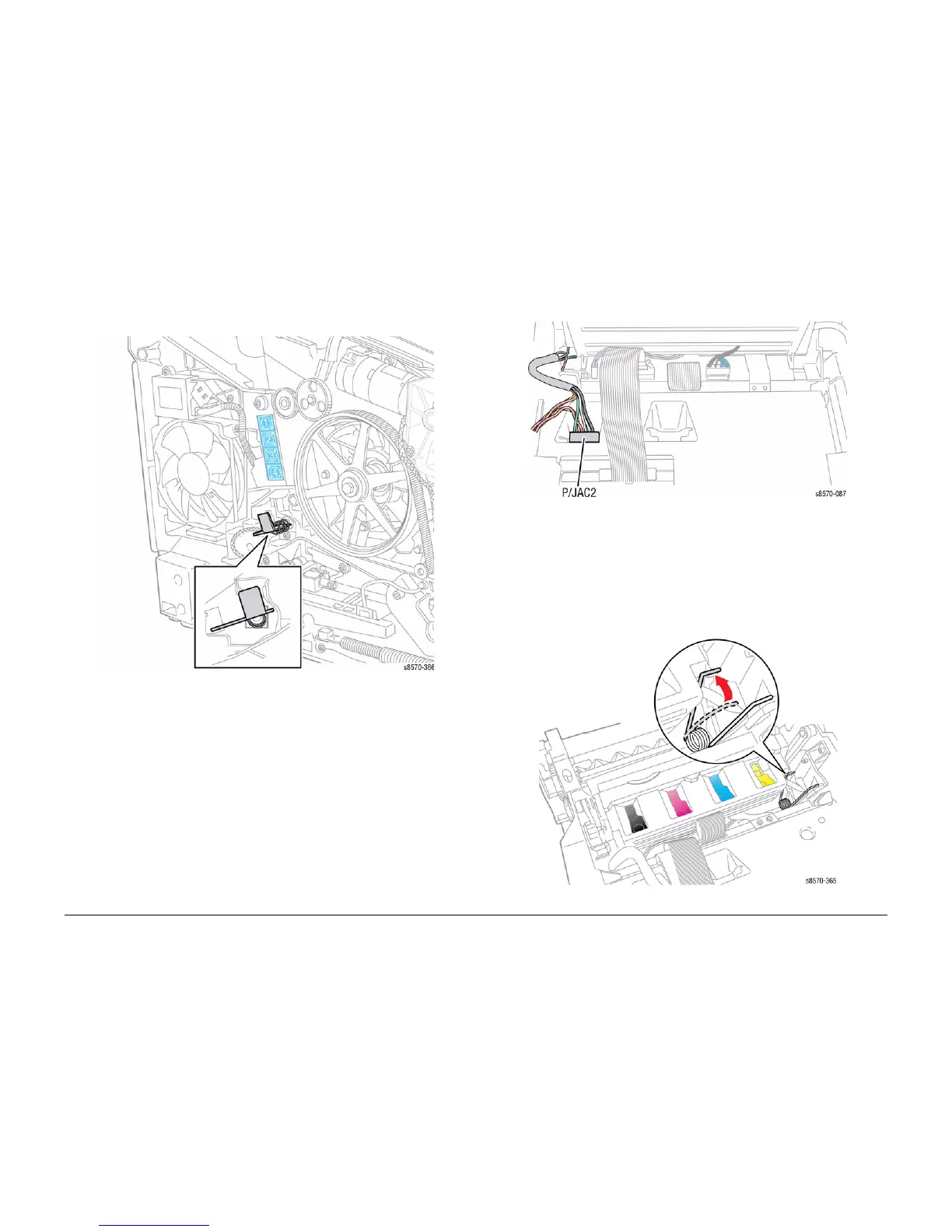

10. Set the X-Axis Bias Hook and spring on the left end of the Printhead Shaft as show in Fig-
ure 23. Ensure the point of the hook is centered in the shaft and the rest of the hook floats
freely.
Figure 23 X-Axis Bias Hook Orientation
11. Properly route the wiring harnesses and reconnect the Printhead Heater wiring harness
connector P/JAC2.
Figure 24 Connecting the Wiring Harness Connector
NOTE: Errors 91,720 ~ 91,723 are often the result of Printhead interference by the Print-
head Heater wiring harness. Make certain the wiring harness is properly restrained and
does not obstruct Printhead movement.
12. Install the left and right Printhead Restraints. Check that the Restraints do not obstruct the
Roll Block.
13. Be sure the Tilt Spring on the left Restraint is properly positioned in the notch on the back
of the Printhead and does not pinch the Purge Pump Hose.
Figure 25 Installing the Printhead Tilt Spring

Xerox COLORQUBE 8570 Specifications

General

Print Technology	Solid Ink
Monthly Duty Cycle	Up to 85, 000 pages
First Page Out Time (Color)	As fast as 5 seconds
First Page Out Time (B&W)	As fast as 5 seconds
Memory (Maximum)	1 GB
Output Capacity	350 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 40 ppm color / 40 ppm black
Connectivity	USB 2.0, Ethernet
Print Languages	PCL 6, PostScript 3, PDF
