Xerox COLORQUBE 8570 Service Manual

October 2012
4-80
ColorQube 8570/8870 Service Manual
REP 4.13
Revised, 3rd Revision - Xerox Internal Use Only
Repairs and Adjustments
1. Remove the Control Panel Cover (REP 1.5).
2. Remove the Right Side Cover (REP 1.11).
3. Remove the Lower Inner Duplex Guide (REP 3.2).
4. Remove the Inner Simplex Guide (REP 3.1).
5. Disconnect the Process Drive from the wiring harness connector P/J118.

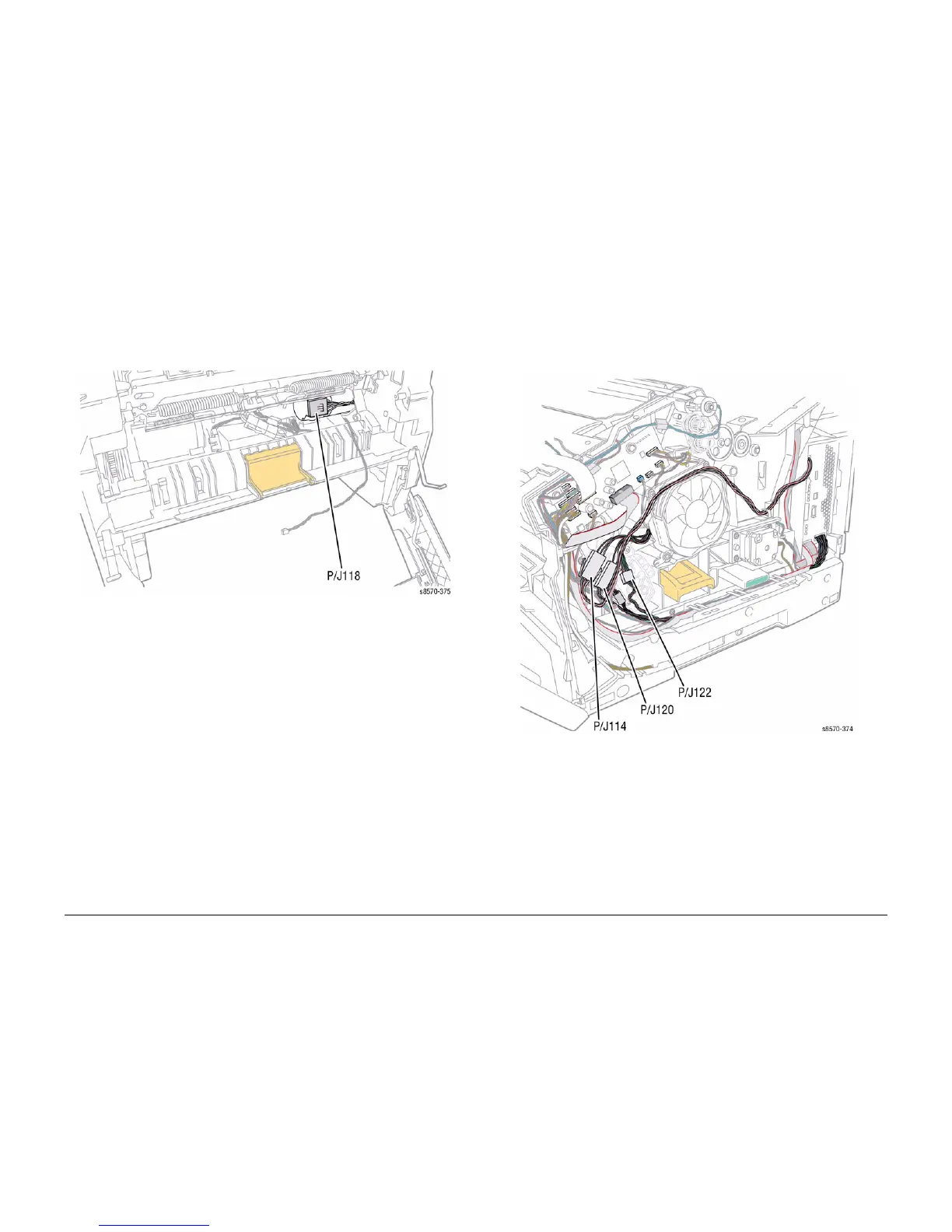

Figure 2 Disconnecting the Wiring Harness Connector
6. Pin the Process Drive gears, if the drive is being reinstalled, using paper clips or similar
objects.
7. Disconnect the three wiring harness connectors P/J114, P/J120, and P/J122 from the
Right Side Harnesses.
8. Move all the wiring harnesses away from the Process Drive Assembly.
9. Release the Drum Encoder and Drum Fan wiring from the Process Drive wiring retainers.
Figure 3 Disconnecting and releasing the Wiring Harness Connectors
