October 2012
7-8
ColorQube 8570/8870 Service Manual
Plug/Jack Locations
Revised, 3rd Revision - Xerox Internal Use Only
Wiring Data

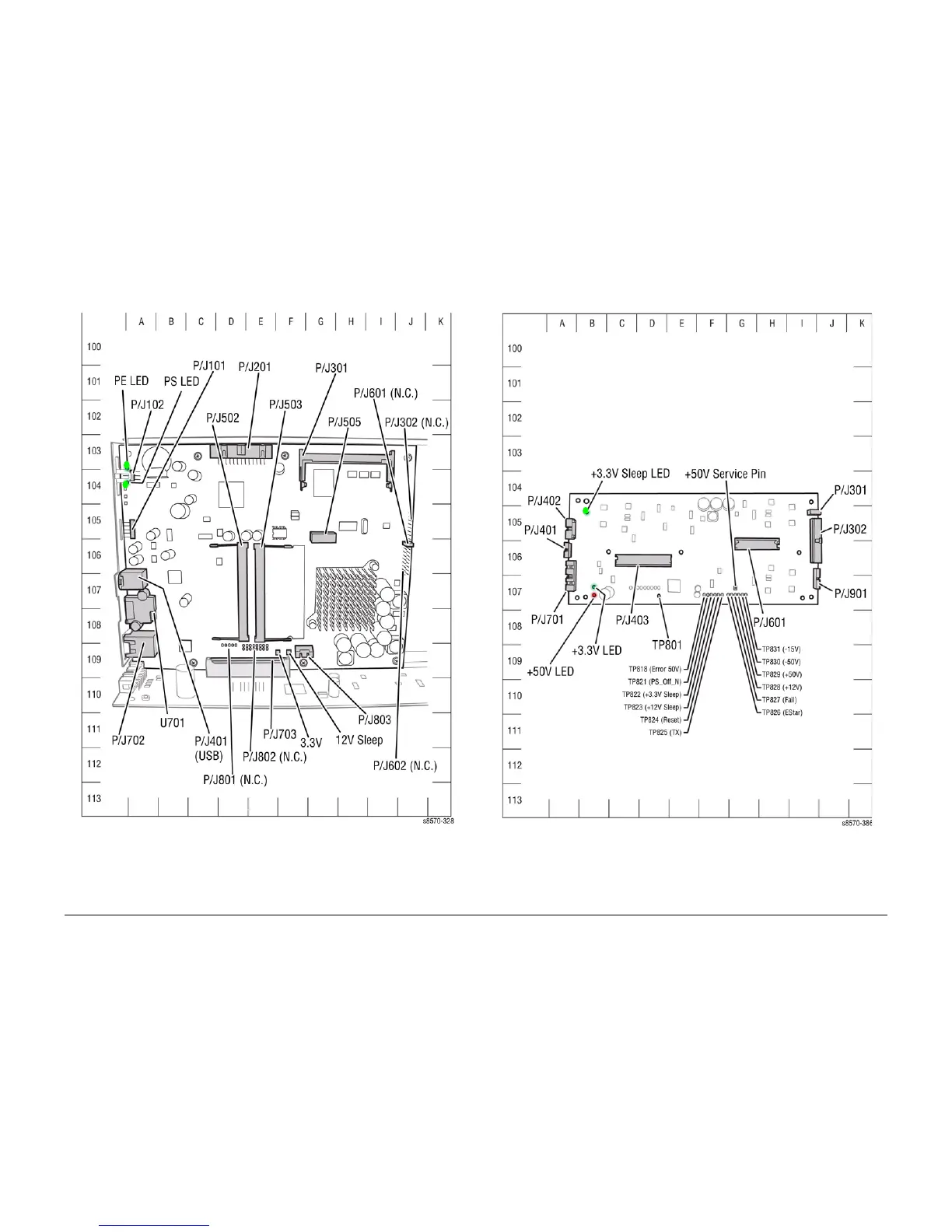

Main Controller Board
Figure 8 Main Controller Board P/J Locations
Power Control Board
Figure 9 Power Control Board P/J Locations
