Xerox COLORQUBE 8570 Service Manual

October 2012
7-14
ColorQube 8570/8870 Service Manual

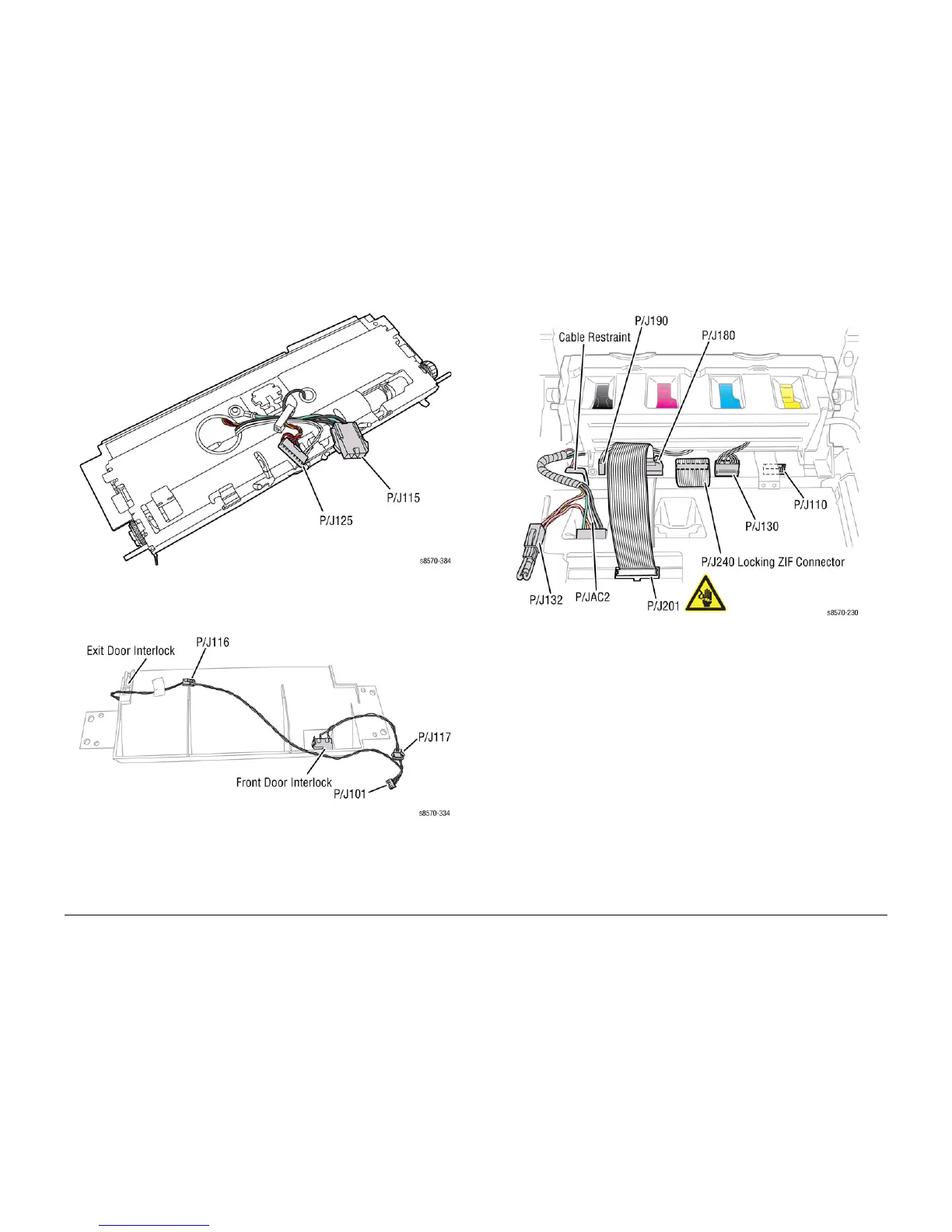

Wire Routing Diagrams
Revised, 3rd Revision - Xerox Internal Use Only
Wiring Data
Bottom Front Wiring
Figure 4 Bottom Front Wire Routing
Top Front Wiring
Figure 5 Top Front Wire Routing
Top Side Wiring
Figure 6 Top Side Wire Routing

Xerox COLORQUBE 8570 Specifications

General

Print Technology	Solid Ink
Monthly Duty Cycle	Up to 85, 000 pages
First Page Out Time (Color)	As fast as 5 seconds
First Page Out Time (B&W)	As fast as 5 seconds
Memory (Maximum)	1 GB
Output Capacity	350 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 40 ppm color / 40 ppm black
Connectivity	USB 2.0, Ethernet
Print Languages	PCL 6, PostScript 3, PDF
