ColorQube 8570/8870 Service Manual
Paper Path of the Printer
Theory of Operation
Xerox Internal Use Only - Revised, 3rd Revision

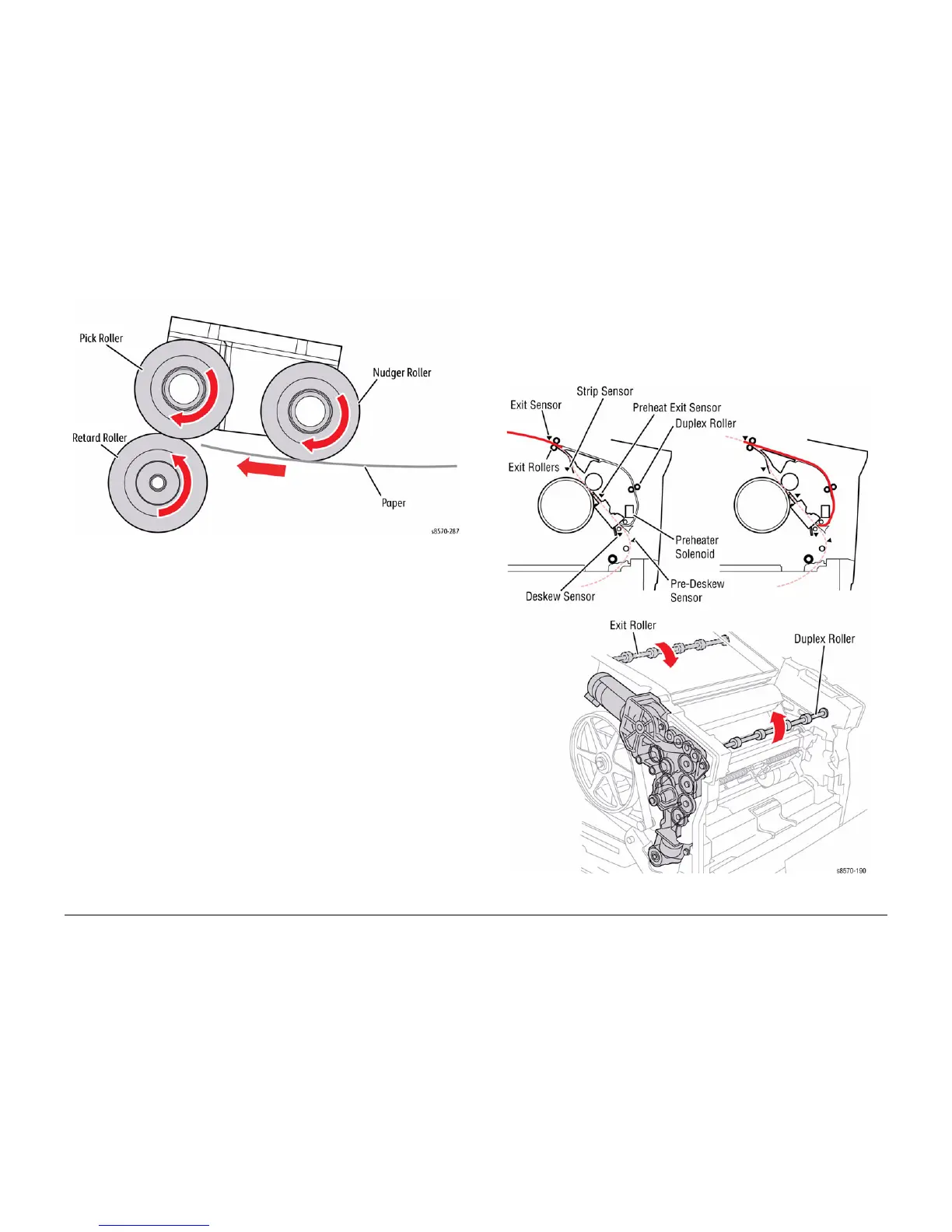

Figure 5 Tray 2/ 3/ 4/ 5 Pick Diagram
2-Sided (Duplex) Printing
When duplex printing, the Exit Rollers pull the paper to a predetermined location. In this posi-
tion, the trailing edge of the paper is adjacent to the Exit Rollers. The Exit Rollers then pull the
paper back into the duplex path. From a non-rotating deskew nip, the print continues through
the paper Preheater and transfix system to the Exit Tray in the same manner as a single-sided
print.
Figure 6 Duplex Drive Components

Xerox COLORQUBE 8570 Specifications

General

Print Technology	Solid Ink
Monthly Duty Cycle	Up to 85, 000 pages
First Page Out Time (Color)	As fast as 5 seconds
First Page Out Time (B&W)	As fast as 5 seconds
Memory (Maximum)	1 GB
Output Capacity	350 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 40 ppm color / 40 ppm black
Connectivity	USB 2.0, Ethernet
Print Languages	PCL 6, PostScript 3, PDF
