Ink Reservoir Overflow - Ink Buildup under the Printhead

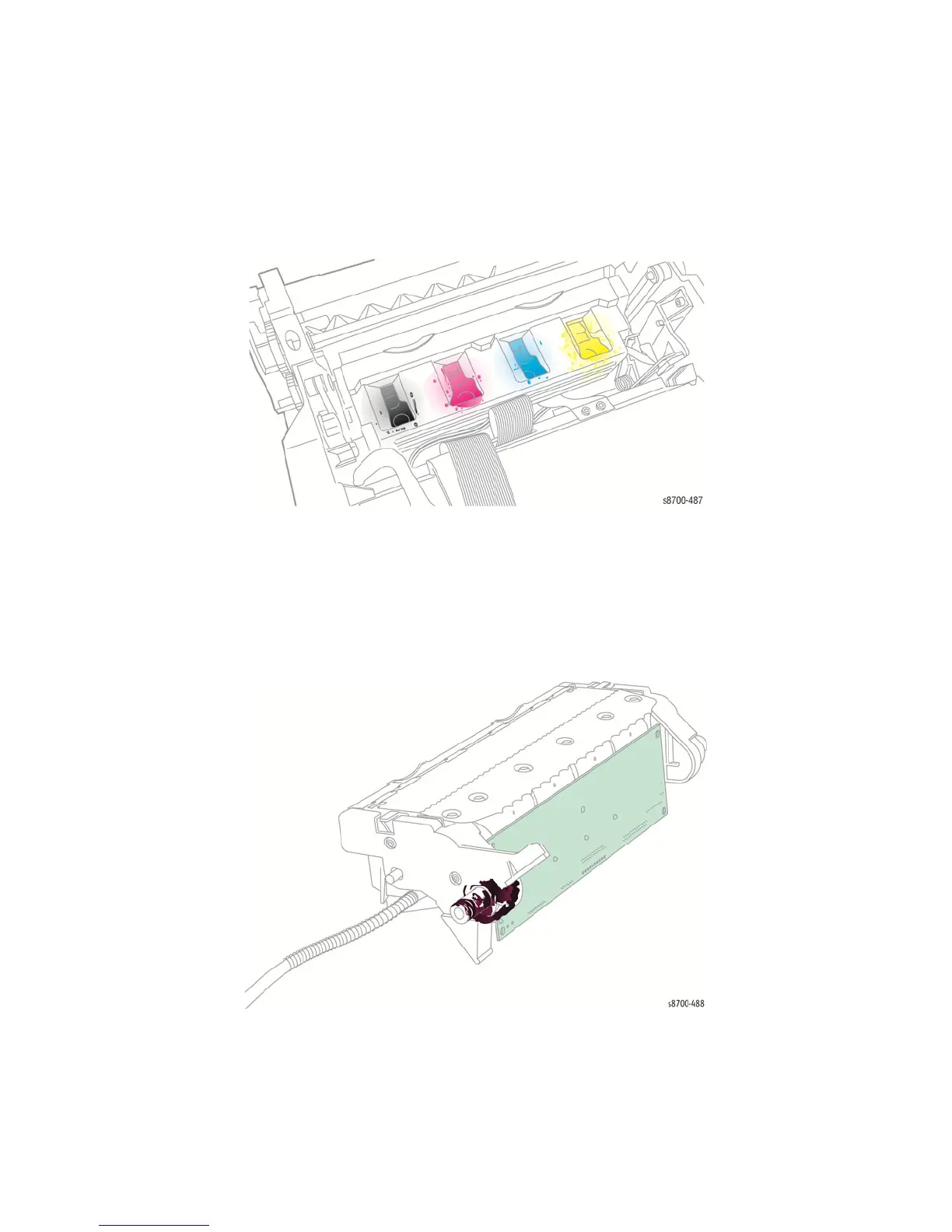

Evidence that the printer was tipped or moved while the Printhead was hot is shown in the illustrations.
An abnormally raised level of ink in a reservoir (shown in the Magenta reservoir)
Ink overflow can also indicate the use of poor-quality, non-Xerox ink that has clogged the Printhead’s Filter.
Check for the use of non-Xerox ink.
Ordinarily, the ink level is maintained above level of the filters in the reservoir for all four colors. Successive ink
melt cycles and overflows cause ink to accumulate under the Printhead.
Ink build-up under the Printhead
Ink accumulations often lead to Printhead movement faults such as 091.722 and 091.723.
Replace the Printhead. Explain to the customer that the printer must be turned Off and allow to cool for 20
minutes before moving the printer.

Xerox COLORQUBE 8570 Specifications

General

Print Technology	Solid Ink
Monthly Duty Cycle	Up to 85, 000 pages
First Page Out Time (Color)	As fast as 5 seconds
First Page Out Time (B&W)	As fast as 5 seconds
Memory (Maximum)	1 GB
Output Capacity	350 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 40 ppm color / 40 ppm black
Connectivity	USB 2.0, Ethernet
Print Languages	PCL 6, PostScript 3, PDF
