Xerox COLORQUBE 8570 Service Manual

October 2012
2-46
ColorQube 8570/8870 Service Manual
92,808 ~ 92,813, 92,900
Revised, 3rd Revision - Xerox Internal Use Only
Fault Messages and Codes

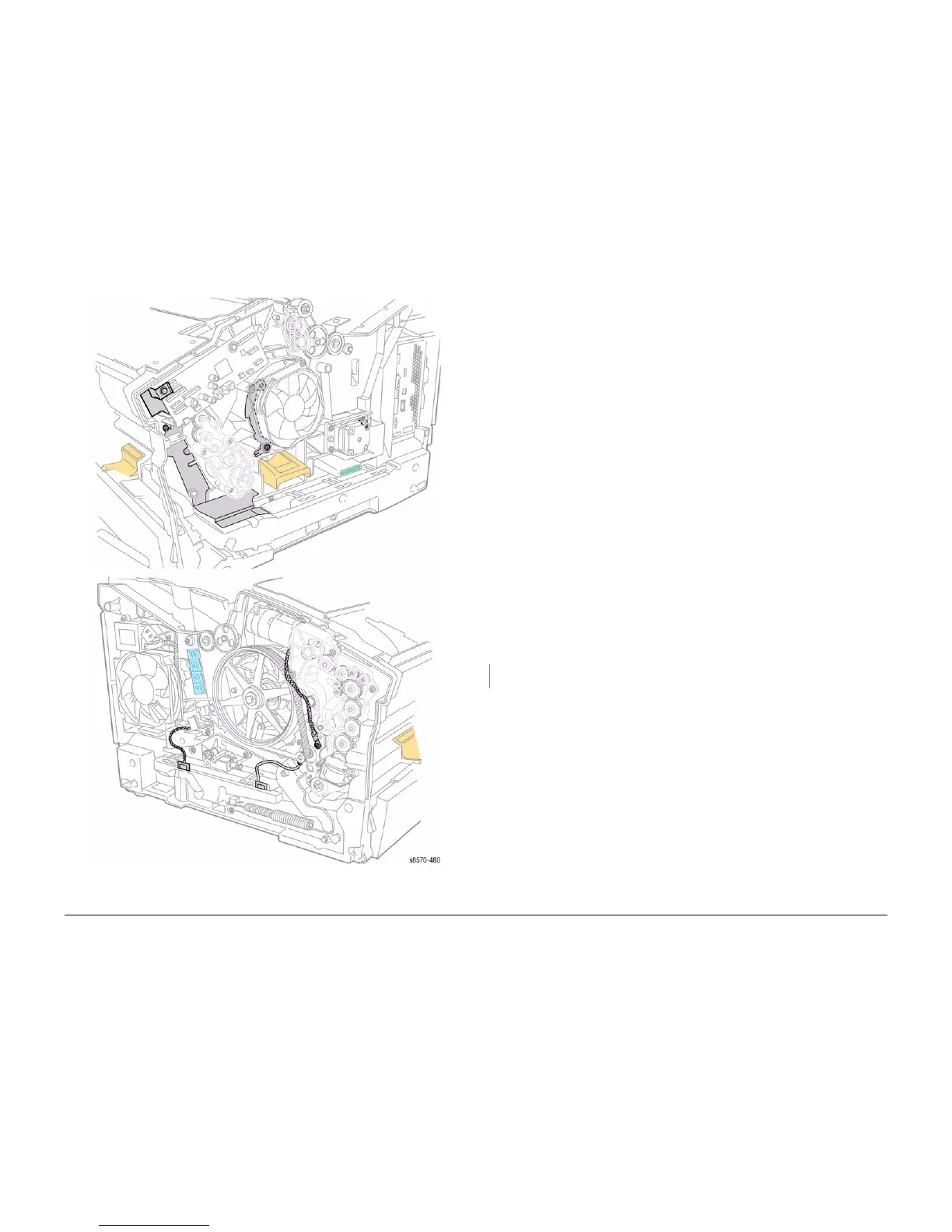

Figure 3 Printer Ground Locations
92,900 Ink Loader Disconnect
An Ink Loader error has occurred. The following troubleshooting procedure applies to this
error.
Initial Actions
• Reboot the printer and verify the error persists.
• Verify the Ink Loader cable connection to the Ink Loader and Electronics Module.
• If the problem persists, perform the following procedure.
Troubleshooting Reference
Applicable Parts (Chapter 5 - Parts List)
• Ink Loader & Bezel, PL 1.1 Item 8
• Electronics Module, PL 5.1 Item 1
• Power Control Board, PL 5.1 Item 8
• Cable, Ink Loader Data, PL 5.1 Item 11
• Cable, I/O Board Data, PL 5.1 Item 14
Wiring and Plug/Jack References (Chapter 7 - Wiring Data)
• Figure 2, Right Side Electronics Module P/J Locations
• Figure 5, Ink Level Sensors, Gate Solenoids, Ink Loader Board
• Figure 11, Ink Loader Board P/J Locations
Procedure
Check the Ink Loader Board wiring harness connectors P/J702 & P/J401. Are the connec-
tions secure and undamaged?
YN
Reseat and/or replace the wiring harness.
Replace the Power Control Board (REP 5.6) (Electronics Module.
Table 1 Applicable Fault Codes
92,900 Ink Loader Disconnect

Xerox COLORQUBE 8570 Specifications

General

Print Technology	Solid Ink
Monthly Duty Cycle	Up to 85, 000 pages
First Page Out Time (Color)	As fast as 5 seconds
First Page Out Time (B&W)	As fast as 5 seconds
Memory (Maximum)	1 GB
Output Capacity	350 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 40 ppm color / 40 ppm black
Connectivity	USB 2.0, Ethernet
Print Languages	PCL 6, PostScript 3, PDF
