Maintenance
168 ColorQube 8700/8900 Color Multifunction Printer
User Guide

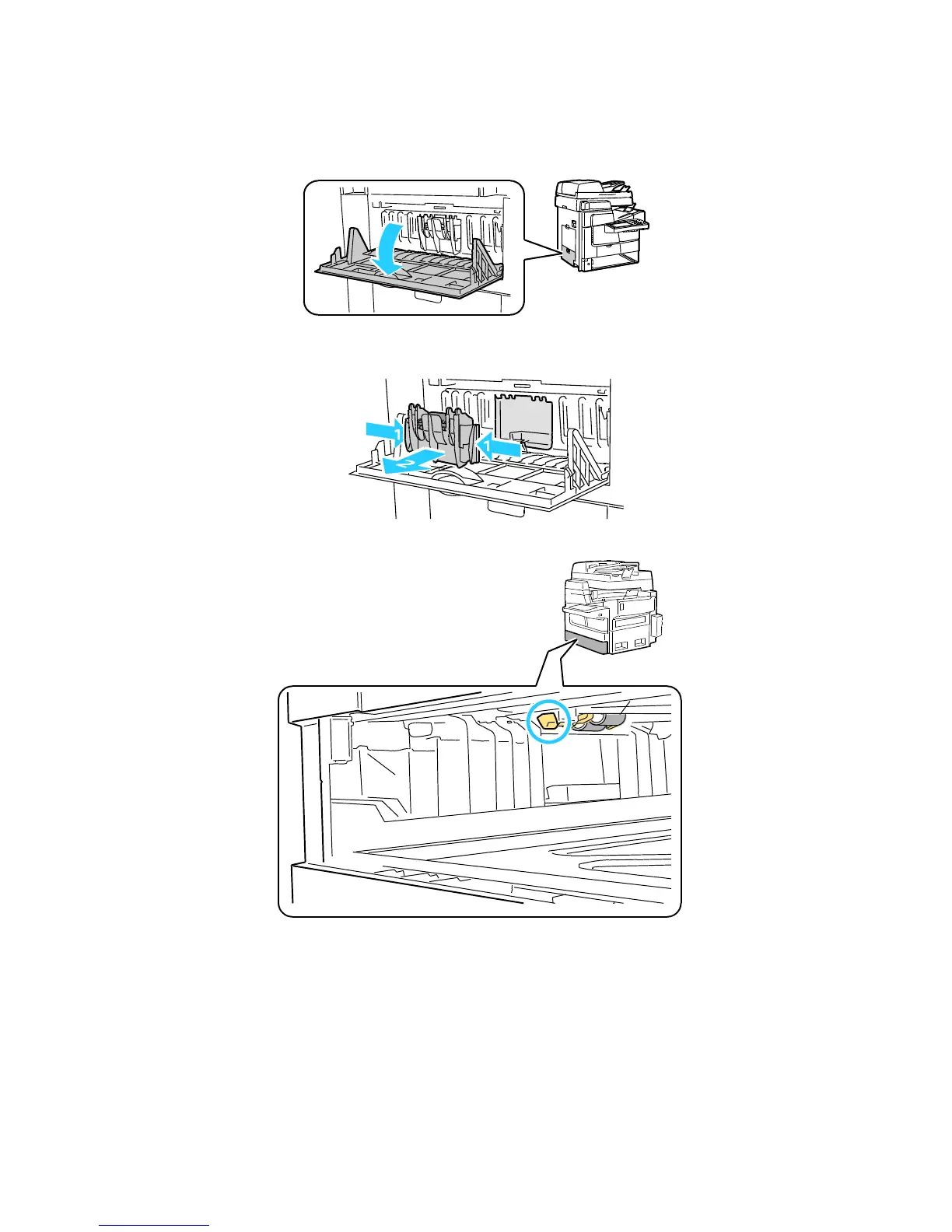

2. Remove the pick roller assembly.
a. Open the Tray 2 left side door.
b. Remove the separator roller assembly by squeezing in the two outer tabs (1) and pulling it
straight out (2).
c. Inside the printer, locate the orange release lever to the left of the gray pick roller assembly.
