Paper and Media
ColorQube 8700/8900 Color Multifunction Printer 55
User Guide

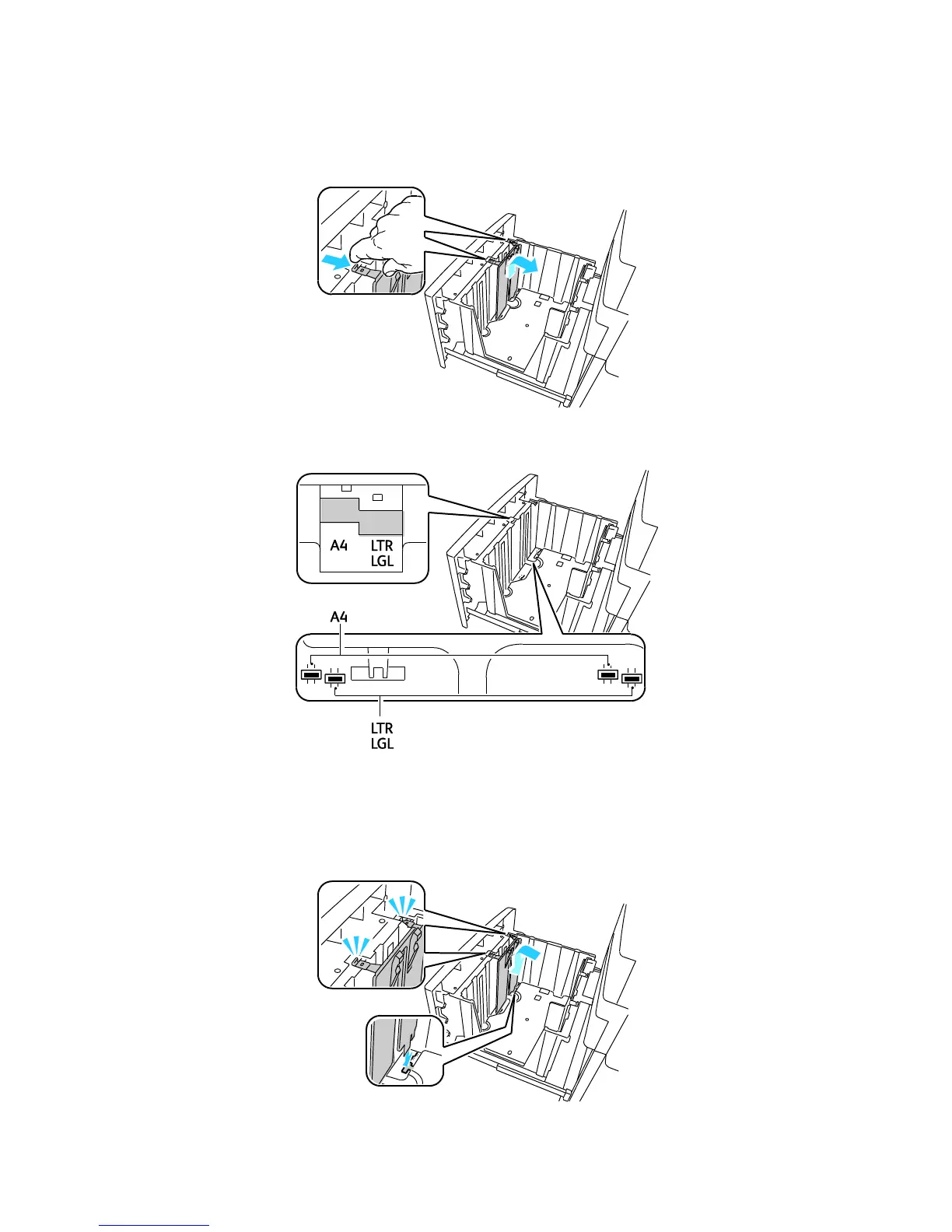

4. Move the front paper width guide to the selected paper size.
a. To remove the guide, pinch the tabs at each end of the guide plate, then lift it from the tray.
b. Align the tabs at the top and bottom of the guide with the corresponding slots at the top and in
the bottom of the tray.
Note: To allow the plate to drop into place when aligning the front guide plate, the middle tab must
be aligned properly.
c. Lower the tabs at the bottom of the guide into the slots at the bottom of the tray. Click the top
tab into the slot at the top of the tray to lock it.
