Repairs and Adjustments
Phaser 3100 MFP 04/08 4-67

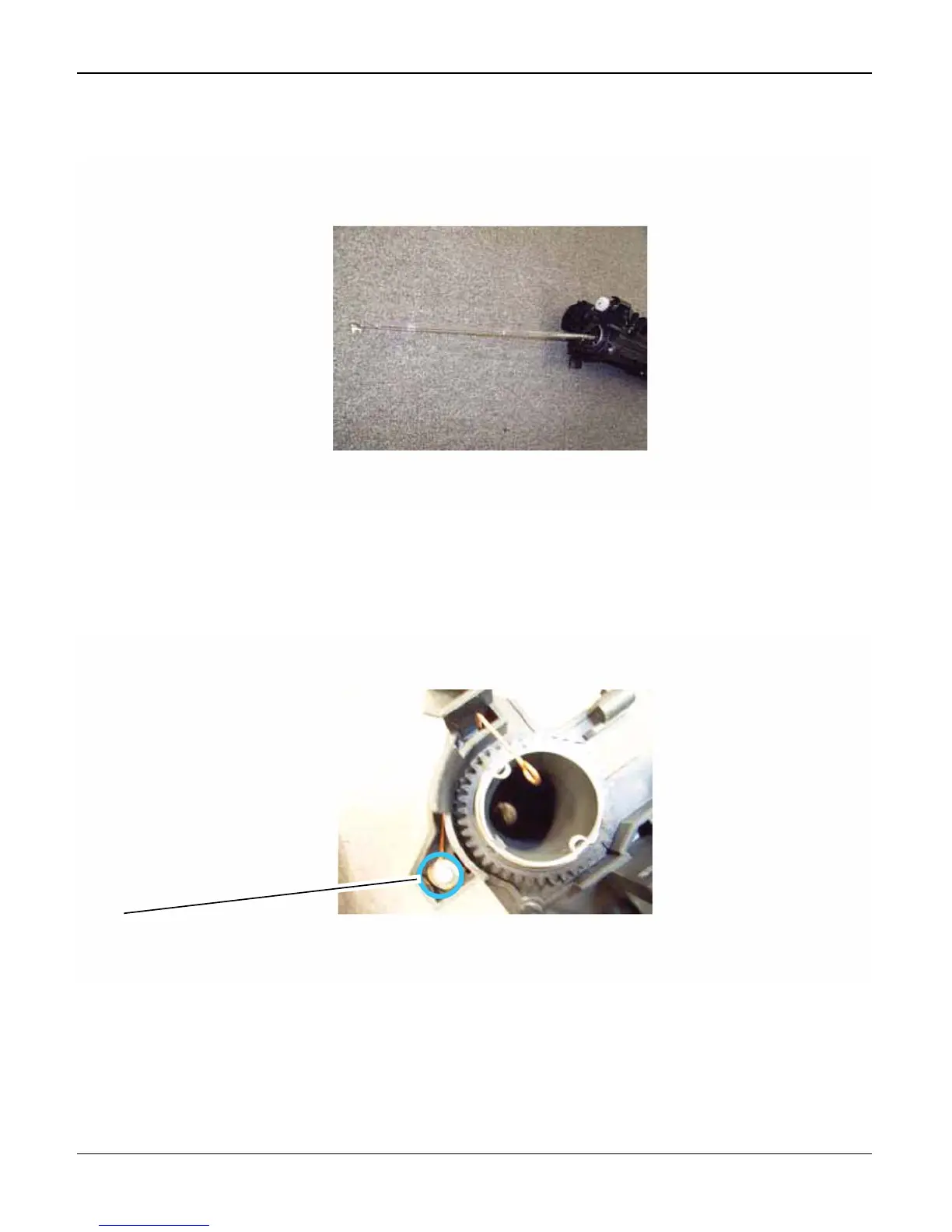

2. Remove the fusing lamp from the fuser, Figure 2.
Figure 2
Hot Roller
3. Disconnect the electrode, Figure 3.
Figure 3
1
Carefully remove the fusing
lamp by withdrawing it from
the fuser
1
Disconnect the electrode
