Repairs and Adjustments
4-68 04/08 Phaser 3100 MFP

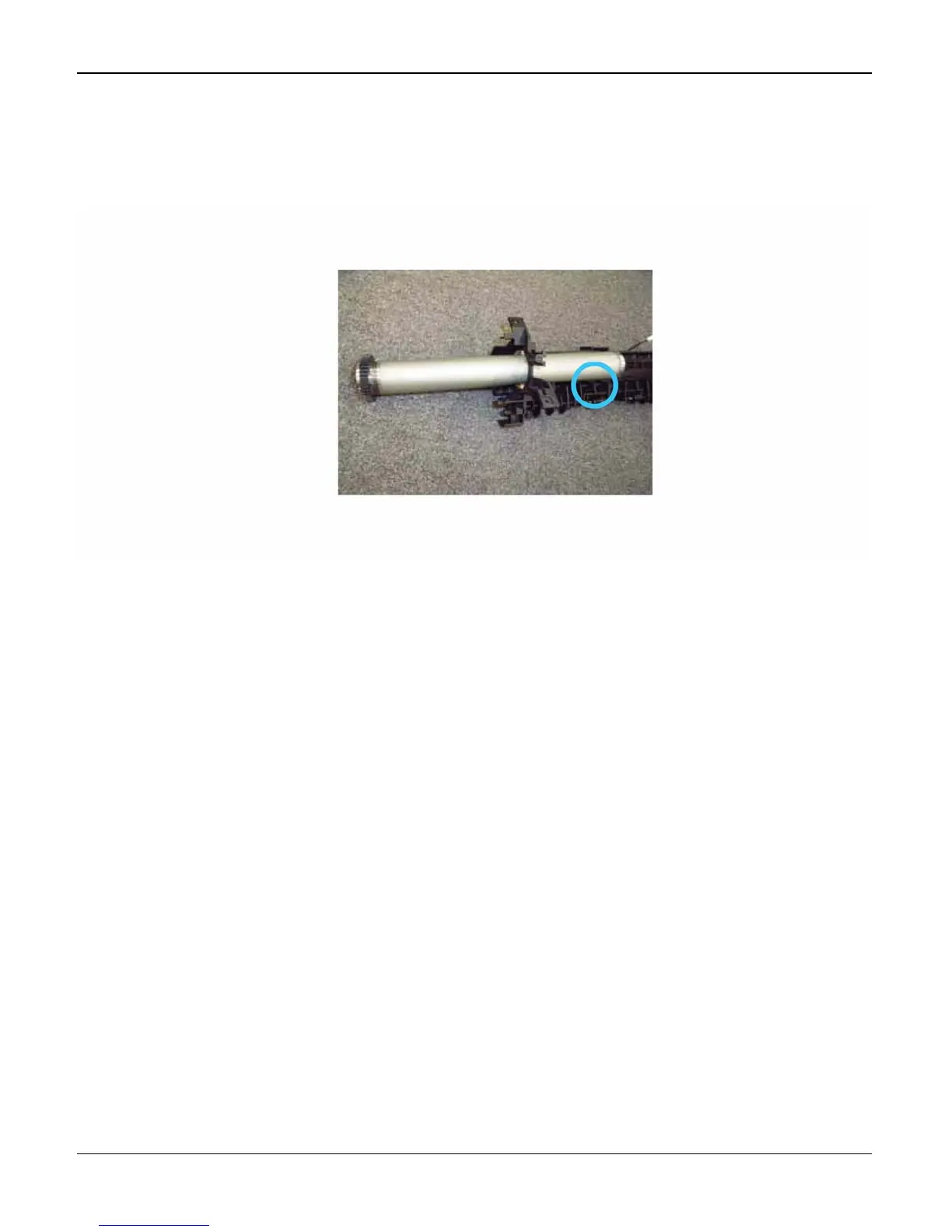

4. Pull the heat roller out of the fuser unit, Figure 4.
CAUTION
Do not touch the surface of the heat roller with bare hands.
Figure 4
