Xerox WorkCentre 5230A User Manual

System Settings
103
Receiving Buffer - EtherTalk
Specifies the input buffer memory capacity for EtherTalk interface within the range of
1024-2048 KB in 32 KB increments using the scroll buttons or the numeric keypad. The
currently available memory will be displayed at the top of the screen with the following
message: “Memory Available: XXX MB.”
Receiving Buffer - Port 9100
Specifies the input buffer memory capacity for Port 9100 interface within the range of
64-1024 KB in 32 KB increments using the scroll buttons or the numeric keypad. The
currently available memory will be displayed at the top of the screen with the following
message: “Memory Available: XXX MB.”

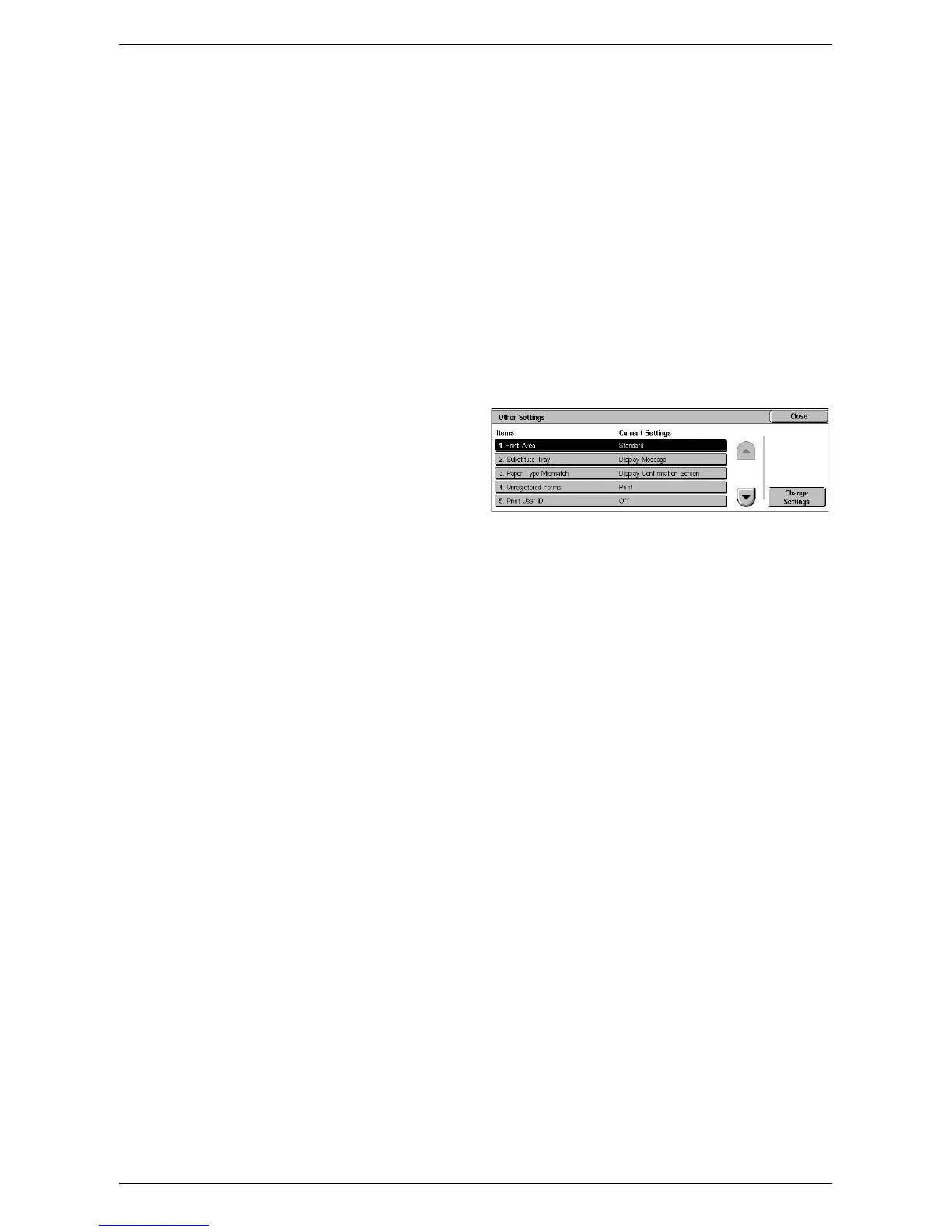

Other Settings
This feature allows you to specify a printable area and replacement method when
paper runs short.
1. Select [Other Settings] in the
[Features] menu.
2. Change the required settings.
Use the scroll buttons to switch
between screens.
3. Select [Close].
Print Area
Specifies the printable area. Select [Standard] to crop a margin 4.1 mm (0.16 inch) wide
along all four edges of the paper. Select [Extended] to crop a margin of 2 mm (0.08
inch) along the edges.
Substitute Tray
Specifies the substitute tray when the machine cannot detect the paper tray
corresponding to the document size with the auto paper selection.
• Display Message
Specifies a message prompt requesting paper supply be displayed without
switching paper trays.
• Use Larger Size
Specifies switching to the tray loaded with the next larger size of paper and prints
the document in its original size.
• Use Closest Size
Specifies switching to the tray loaded with the paper in the size closest to the
selected paper. Image size may be automatically reduced as required.
NOTE: A job sent from a computer takes priority over a job instigated on the machine.
• Select Tray 5
Specifies switching to Tray 5 (Bypass).
Paper Type Mismatch
Specifies whether to print, display the confirmation screen, or display the paper supply
screen when a paper type mismatch occurs.

Xerox WorkCentre 5230A Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Time to first page (black, normal)	4.3 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Power supply type	AC
Dimensions (WxDxH)	640 x 652 x 1113 mm
Power requirements	220 – 240V, 50/60 Hz
Printer management	SNMPv1, SNMPv2c, SMTPv3, TCP/IP, IP
Networking features	Fast Ethernet
All-in-one functions	Copy, Scan
Standard media sizes	89 x 98.4mm - 297 x 420mm
Maximum internal memory	0.768 GB
Color all-in-one functions	scan, n
Compatible operating systems	Windows XP/Server 2003/Server 2008/Vista/7 Mac OS X 10.3 – 10.5 AIX 5Iv5.3 HP UX 11.0, 11i v2 Solaris 8/9/10 Linux Fedora Core 1/5 RedHat Enterprise Linux 4 SUSE x10
Dimensions (W x D x H) (imperial)	25.2 x 25.7 x 43.8 \
Acoustic power emissions (active, print, copy or scan)	72/38 dB
Scanner type	Flatbed scanner
Input color depth	24 bit
Maximum scan area	297 x 432 mm
Image formats supported	JPG, TIF
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Copy speed (black, normal quality, A4)	30 cpm
Total input capacity	1100 sheets
Total output capacity	500 sheets
Maximum input capacity	5100 sheets
Auto document feeder (ADF) input capacity	75 sheets
Internal memory	512 MB
Processor family	PowerPC
Internal storage capacity	40 GB
Sound pressure level (printing)	22 dB
Display	-
Market positioning	Business
Envelopes sizes	C5, DL
Maximum print size	297 x 420 mm
Media weight (tray 1)	60 to 105 g/sm2
Paper tray media types	Bond paper, Plain paper, Pre-Printed, Recycled paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Multi-Purpose Tray media weight	60 - 215 g/m²
Supported network protocols (IPv4)	TCP/IP, IPv6HTTP/HTTPS, LPR/LPD
Standard interfaces	USB 2.0
Power consumption (standby)	95 W
Power consumption (average operating)	615 W
Sustainability certificates	ENERGY STAR
Maximum duty cycle	100000 pages per month
Recommended duty cycle	12000 pages per month
Operating temperature (T-T)	10 - 28 °C
Operating relative humidity (H-H)	15 - 85 %
