Xerox WorkCentre 5230A User Manual

2 Paper and Other Media
22
Envelope Tray
The Envelope Tray allows you to stack up to 43 mm of envelopes.
NOTE: Insert the Envelope Tray in the slot for Tray 1 only. Inserting the Envelope Tray
in any other slot will damage it.

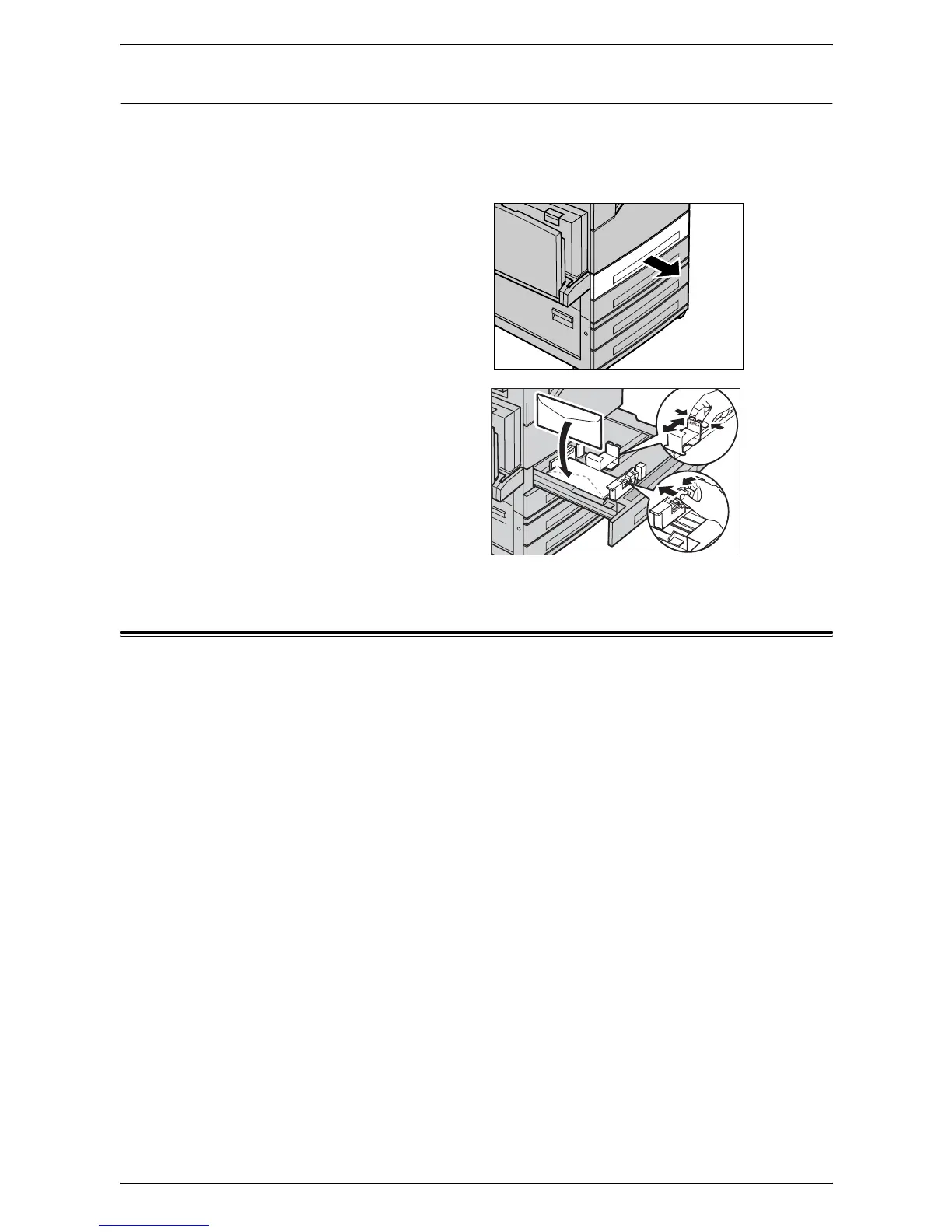

1. Pull out the Envelope Tray.
2. Load the envelopes in the
Envelope Tray with the side to
be printed face up and the edge
with the flap against the left
edge of the tray.
3. Adjust the paper guides to the
size of the envelopes.
Auto Tray Switching
The machine automatically switches from one tray to another under the following
conditions.
• When an active tray runs out of paper during printing.
• When the paper size of the selected tray differs from that detected upon document
scanning.
• When the selected tray is open upon paper feeding.
• When the selected tray malfunctions upon paper feeding.
NOTE: Tray 5 (Bypass) is not subject to Auto Tray Switching.
NOTE: The paper tray and paper type priority settings can be programmed in the
System Administration mode. For more information, refer to
Paper Tray Priority in the
Setups chapter on page 71
and Paper Size Settings in the Setups chapter on
page 78.
When not in use, the paper trays can be opened and loaded with paper while the
machine is running. However, do not open an active paper tray. This will cause the
machine to stop the job that is being processed.

Xerox WorkCentre 5230A Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Time to first page (black, normal)	4.3 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Power supply type	AC
Dimensions (WxDxH)	640 x 652 x 1113 mm
Power requirements	220 – 240V, 50/60 Hz
Printer management	SNMPv1, SNMPv2c, SMTPv3, TCP/IP, IP
Networking features	Fast Ethernet
All-in-one functions	Copy, Scan
Standard media sizes	89 x 98.4mm - 297 x 420mm
Maximum internal memory	0.768 GB
Color all-in-one functions	scan, n
Compatible operating systems	Windows XP/Server 2003/Server 2008/Vista/7 Mac OS X 10.3 – 10.5 AIX 5Iv5.3 HP UX 11.0, 11i v2 Solaris 8/9/10 Linux Fedora Core 1/5 RedHat Enterprise Linux 4 SUSE x10
Dimensions (W x D x H) (imperial)	25.2 x 25.7 x 43.8 \
Acoustic power emissions (active, print, copy or scan)	72/38 dB
Scanner type	Flatbed scanner
Input color depth	24 bit
Maximum scan area	297 x 432 mm
Image formats supported	JPG, TIF
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Copy speed (black, normal quality, A4)	30 cpm
Total input capacity	1100 sheets
Total output capacity	500 sheets
Maximum input capacity	5100 sheets
Auto document feeder (ADF) input capacity	75 sheets
Internal memory	512 MB
Processor family	PowerPC
Internal storage capacity	40 GB
Sound pressure level (printing)	22 dB
Display	-
Market positioning	Business
Envelopes sizes	C5, DL
Maximum print size	297 x 420 mm
Media weight (tray 1)	60 to 105 g/sm2
Paper tray media types	Bond paper, Plain paper, Pre-Printed, Recycled paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Multi-Purpose Tray media weight	60 - 215 g/m²
Supported network protocols (IPv4)	TCP/IP, IPv6HTTP/HTTPS, LPR/LPD
Standard interfaces	USB 2.0
Power consumption (standby)	95 W
Power consumption (average operating)	615 W
Sustainability certificates	ENERGY STAR
Maximum duty cycle	100000 pages per month
Recommended duty cycle	12000 pages per month
Operating temperature (T-T)	10 - 28 °C
Operating relative humidity (H-H)	15 - 85 %
