Xerox WorkCentre 5230A - Paper Jams in Cover B

15 Problem Solving
354

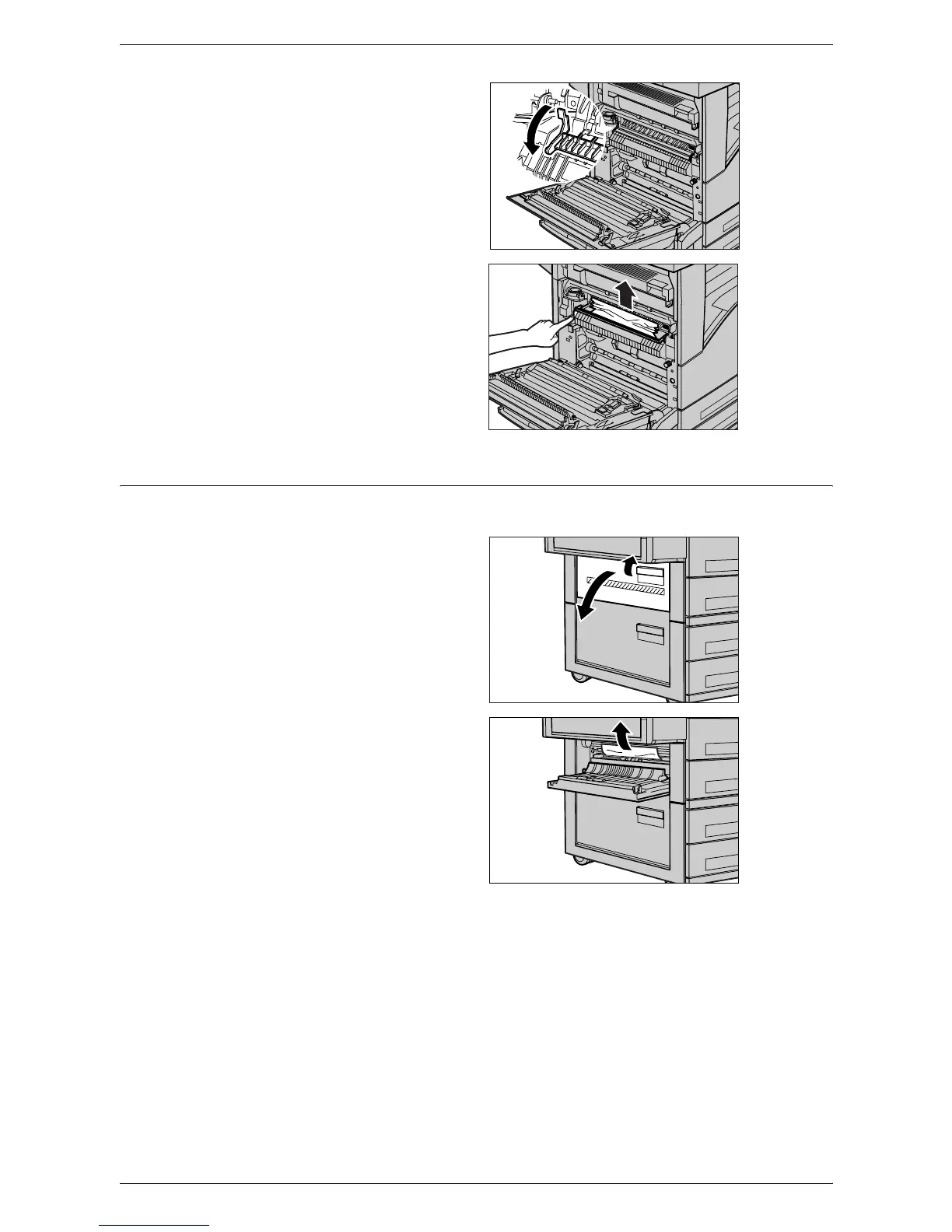

2. If the jammed paper is inside the
fuser unit, lower the green lever
A2 in the direction of the arrow
to open the fuser unit cover.
3. If the jammed paper is found in
the fuser unit, hold the green
lever and carefully remove the
paper from the machine.
NOTE: Be careful not to touch the
fuser unit. It may be hot.
4. Close Cover A until it latches,
and then close Tray 5 (Bypass).
Paper Jams in Cover B
Follow the steps below to rectify paper jams in Cover B.
1. Open Cover B while lifting up
the release lever.
2. Remove the jammed paper.
3. Close Cover B until it latches.
NOTE: Firmly press the center of
the cover to close it.
