Xerox WorkCentre 5230A User Manual

Setup
127

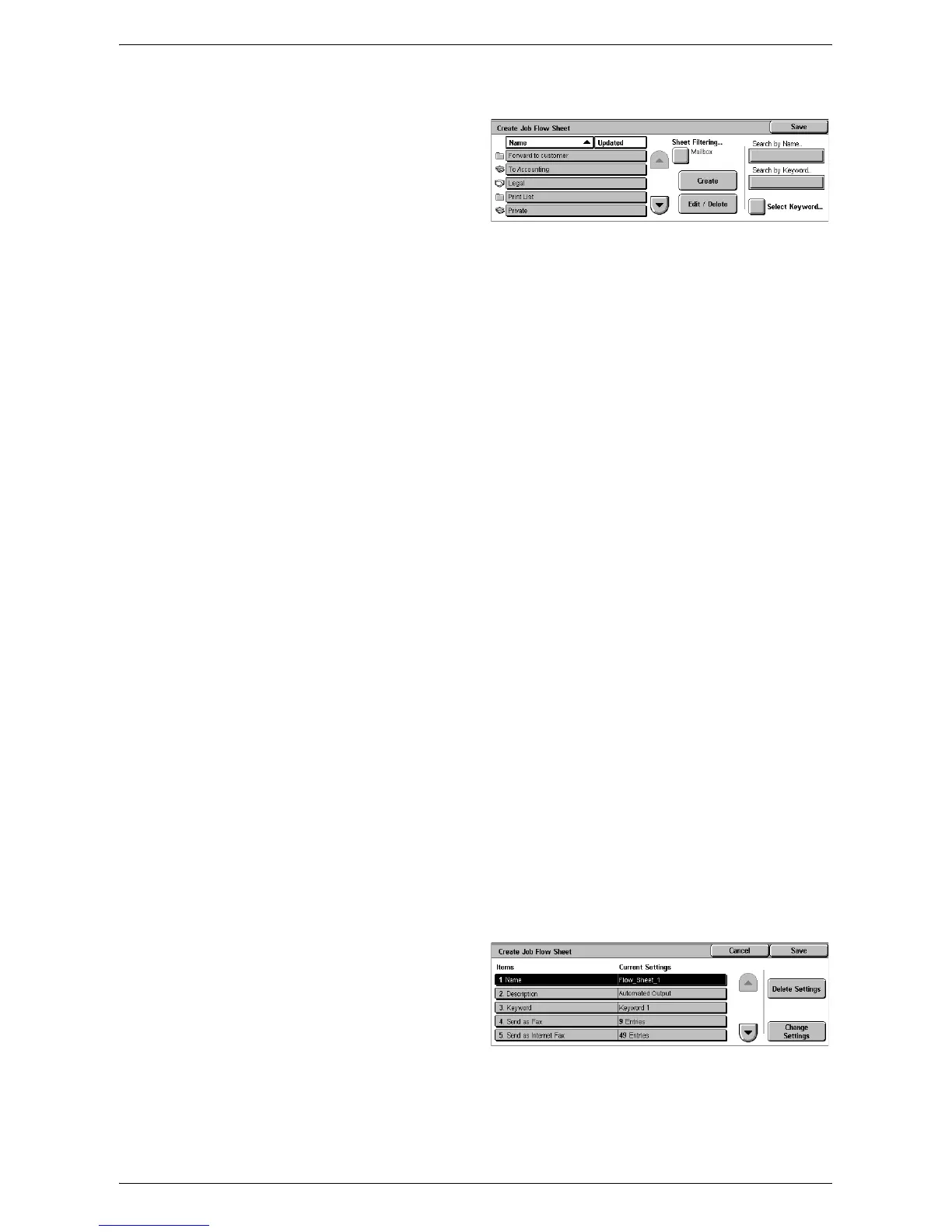

[Create Job Flow Sheet] Screen
1. Select [Create Job Flow Sheet]
on the [Setup Menu] screen.
2. Change the required settings.
3. Select [Close].
Sheet Filtering
Displays the [Sheet Filtering] screen allowing you to filter job flow sheets.
• Owner - Filters job flow sheets by owner.
• Target - Filters job flow sheets by target.
Create
Displays the [Create Job Flow Sheet] screen.
Edit/Delete
Displays the [Details] screen.
• Delete - Deletes the selected job flow sheet.
• Copy - Allows you to create a new job flow sheet by copying and modifying the
selected job flow sheet.
• Edit - Allows you to modify the selected job flow sheet.
NOTE: The contents of this option are the same as [Details] on the [Select Job Flow
Sheet] screen of a mailbox.
Search by Name
Displays the [Keyboard] screen. Enter the name of a job flow sheet to search.
Search by Keyword
Displays the [Keyboard] screen. Enter the keyword assigned to a job flow sheet to
search.
Select Keyword
Displays the [Select Keyword] screen. Select a preset keyword assigned to a job flow
sheet to search. For preset keywords, refer to
Create Job Flow Sheet Keyword on page
129
.
[Create Job Flow Sheet] Screen
Allows you to create a new job flow sheet.
1. Select [Create] on the [Job Flow
Sheets] screen.
2. Change the required settings.
Use the scroll buttons to switch
between screens.
3. Select [Save].
NOTE: Select [Delete Settings] if you want to clear the current setting for the selected
item.

Xerox WorkCentre 5230A Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Time to first page (black, normal)	4.3 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Power supply type	AC
Dimensions (WxDxH)	640 x 652 x 1113 mm
Power requirements	220 – 240V, 50/60 Hz
Printer management	SNMPv1, SNMPv2c, SMTPv3, TCP/IP, IP
Networking features	Fast Ethernet
All-in-one functions	Copy, Scan
Standard media sizes	89 x 98.4mm - 297 x 420mm
Maximum internal memory	0.768 GB
Color all-in-one functions	scan, n
Compatible operating systems	Windows XP/Server 2003/Server 2008/Vista/7 Mac OS X 10.3 – 10.5 AIX 5Iv5.3 HP UX 11.0, 11i v2 Solaris 8/9/10 Linux Fedora Core 1/5 RedHat Enterprise Linux 4 SUSE x10
Dimensions (W x D x H) (imperial)	25.2 x 25.7 x 43.8 \
Acoustic power emissions (active, print, copy or scan)	72/38 dB
Scanner type	Flatbed scanner
Input color depth	24 bit
Maximum scan area	297 x 432 mm
Image formats supported	JPG, TIF
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Copy speed (black, normal quality, A4)	30 cpm
Total input capacity	1100 sheets
Total output capacity	500 sheets
Maximum input capacity	5100 sheets
Auto document feeder (ADF) input capacity	75 sheets
Internal memory	512 MB
Processor family	PowerPC
Internal storage capacity	40 GB
Sound pressure level (printing)	22 dB
Display	-
Market positioning	Business
Envelopes sizes	C5, DL
Maximum print size	297 x 420 mm
Media weight (tray 1)	60 to 105 g/sm2
Paper tray media types	Bond paper, Plain paper, Pre-Printed, Recycled paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Multi-Purpose Tray media weight	60 - 215 g/m²
Supported network protocols (IPv4)	TCP/IP, IPv6HTTP/HTTPS, LPR/LPD
Standard interfaces	USB 2.0
Power consumption (standby)	95 W
Power consumption (average operating)	615 W
Sustainability certificates	ENERGY STAR
Maximum duty cycle	100000 pages per month
Recommended duty cycle	12000 pages per month
Operating temperature (T-T)	10 - 28 °C
Operating relative humidity (H-H)	15 - 85 %
