Yadea Y1S Series User Manual

YD-EM279
39
PREMIUM E-MOBILITY

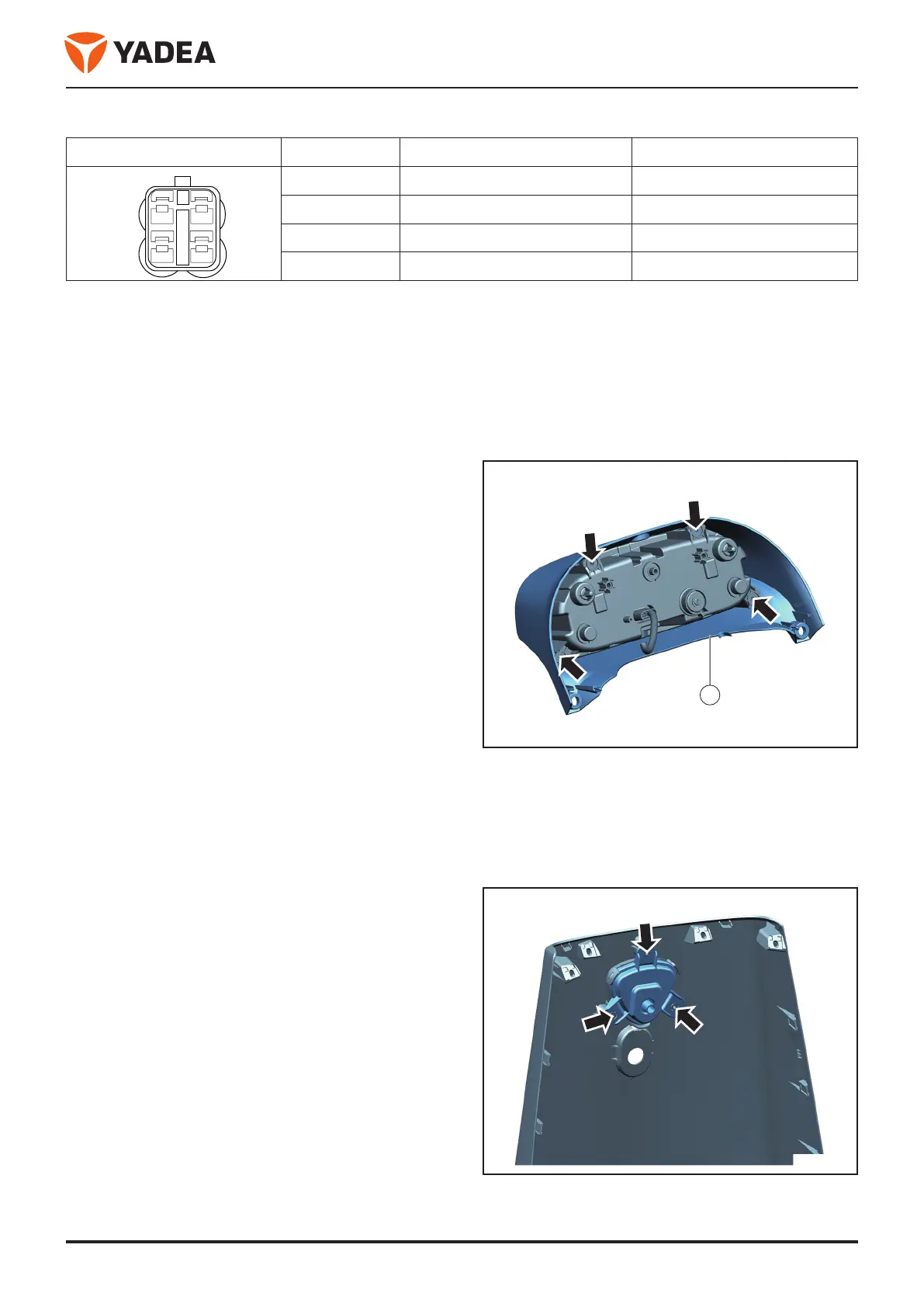

3.3.2.4 Connector interface definition
Connector No. Interface definition Color
1 High beam (-)
Blue
2 Front position light (-)
palm tree
3 Low beam (-)
White
4 Positive Electrode (+12V)
Black
3.3.3 Disassembly and installation the headshade
3.3.3.1 Service tools
●
Cross screwdriver
3.3.3.2 Disassembly and installation
Disassembly
●
Park the vehicle on a horizontal road surface to
support the main bracket.
●
Close the key and pull it out.
●
Open the seat cushion and turn off the air switch.
●
Disassembly the headlights. → page 37
●
Disassembly screw - arrow - .
●
Disassembly the headshade - 1 -.
Installation
Installation is carried out in reverse order of disassembly.
3.3.4 Disassembly and install the logo lamp
3.3.4.1 Service tools
●
Cross screwdriver
3.3.4.2 Disassembly and installation
Disassembly
●
Park the vehicle on a horizontal road surface to
support the main bracket.
●
Close the key and pull it out.
●
Open the seat cushion and turn off the air switch.
●
Disassembly the front wall. → page 51
●
Disassembly screw - arrow - .
●
Disassembly the logo lamp - 1 -.
Installation
Installation is carried out in reverse order of disassembly.
21
43
1
