Body system
4.1 Brackets

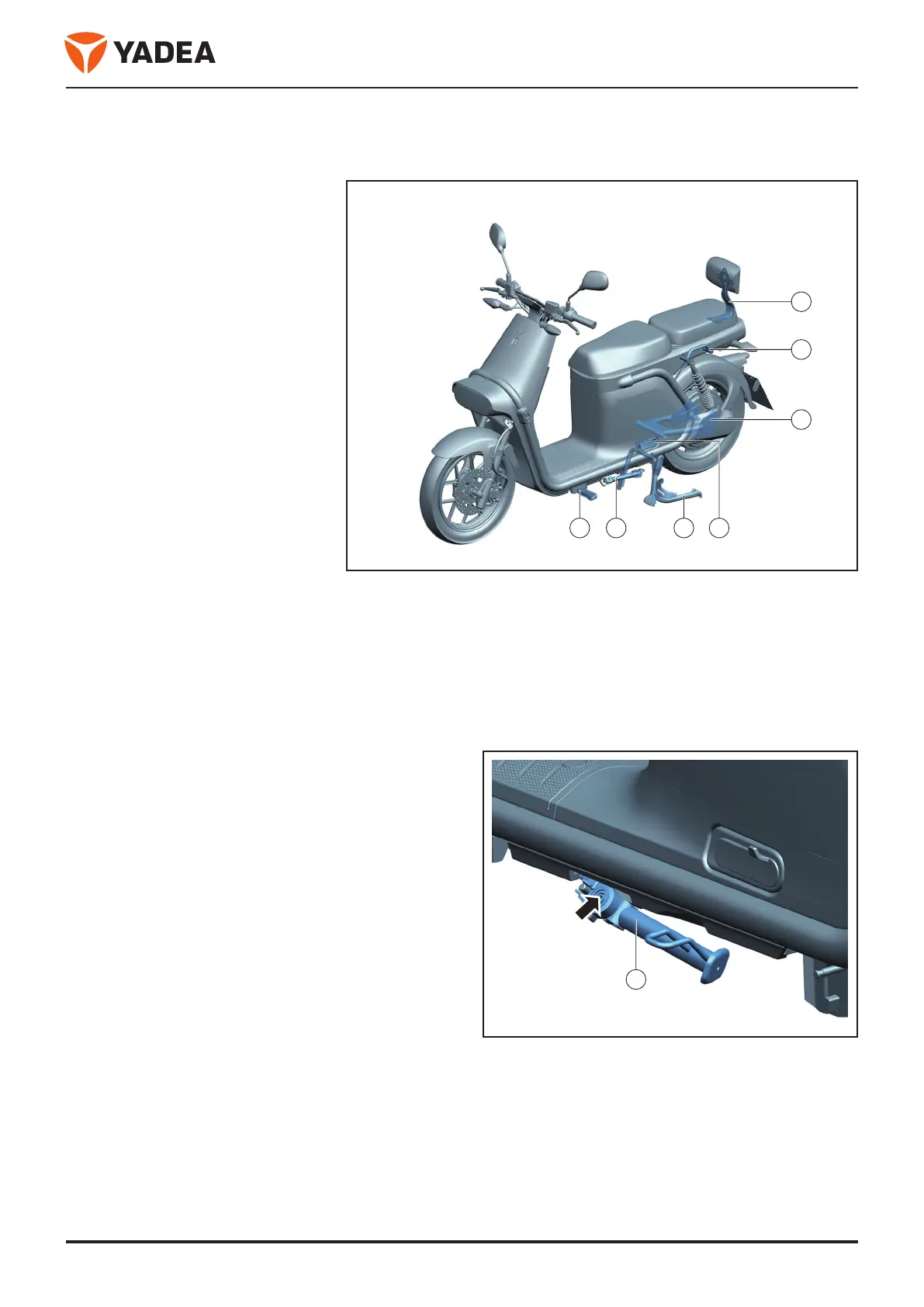

4.1.1 Assembly overview
1. Backrest bracket
2. Rear armrest
3. Flat fork
4. Rest your feet
5. Main bracket
6. Side brackets
7. Front resting feet
4.1.2 Disassembly and installation of side support
4.1.2.1 Service tools
●
Straight screwdriver
●
Hexagonal socket 6mm
4.1.2.2 Disassembly and installation
Disassembly
●
Park the vehicle on a horizontal road surface to
support the main bracket.
●
Disassembly the side bracket fixing bolt - arrow - .
●
Disassembly the side bracing power-off switch.
●
Disengage the spring and Disassembly the side
bracket - 1 -.
Installation
Installation is carried out in reverse order of disassembly.
