5.1.8 Disassembly and installation of pedal
5.1.8.1 Service tools
●
Sleeve 10mm
5.1.8.2 Disassembly and installation
Disassembly
●
Park the vehicle on a horizontal road surface to
support the main bracket.
●
Disassembly the internal windshield. → page 52
●
Disassembly the side panels. → page 62
●
Disassembly the center cover underneath. → page
57
●

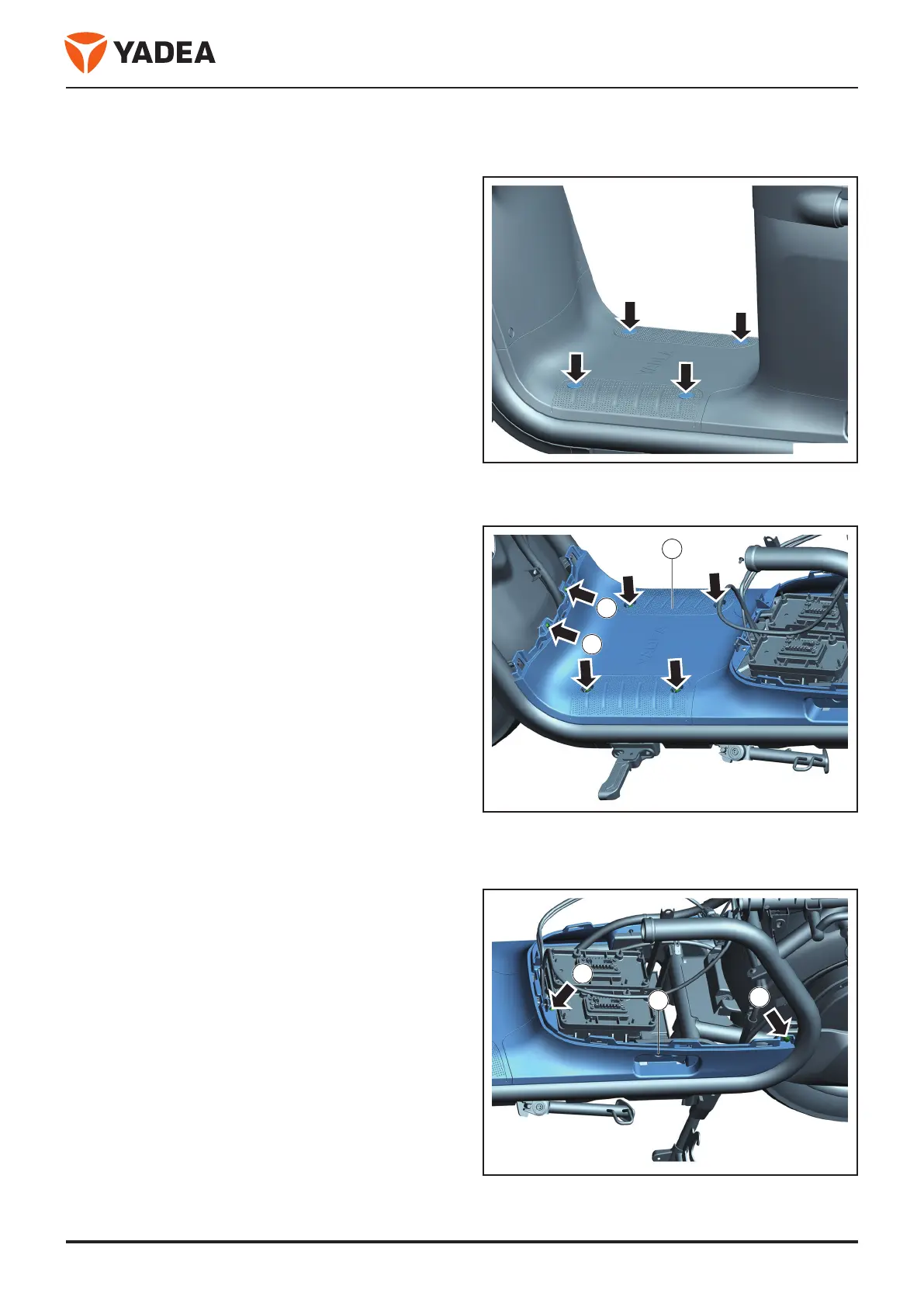

Disassembly the foot pedal plug - arrow - .
●
Disassembly the foot pedal fixing bolt - arrow - .
●
Disassembly the foot pedal fixing screw - arrow A -.
●
Disassembly the foot pedal - 1 -.
●
Rest the feet after disassembly. → Page 48
●
Disassembly screw - arrow A -.
●
Disassembly the bolt - arrow B -.
●
