Yadea Y1S Series - Disassembly and Installation the Side Panels

YD-EM279
61
PREMIUM E-MOBILITY
●

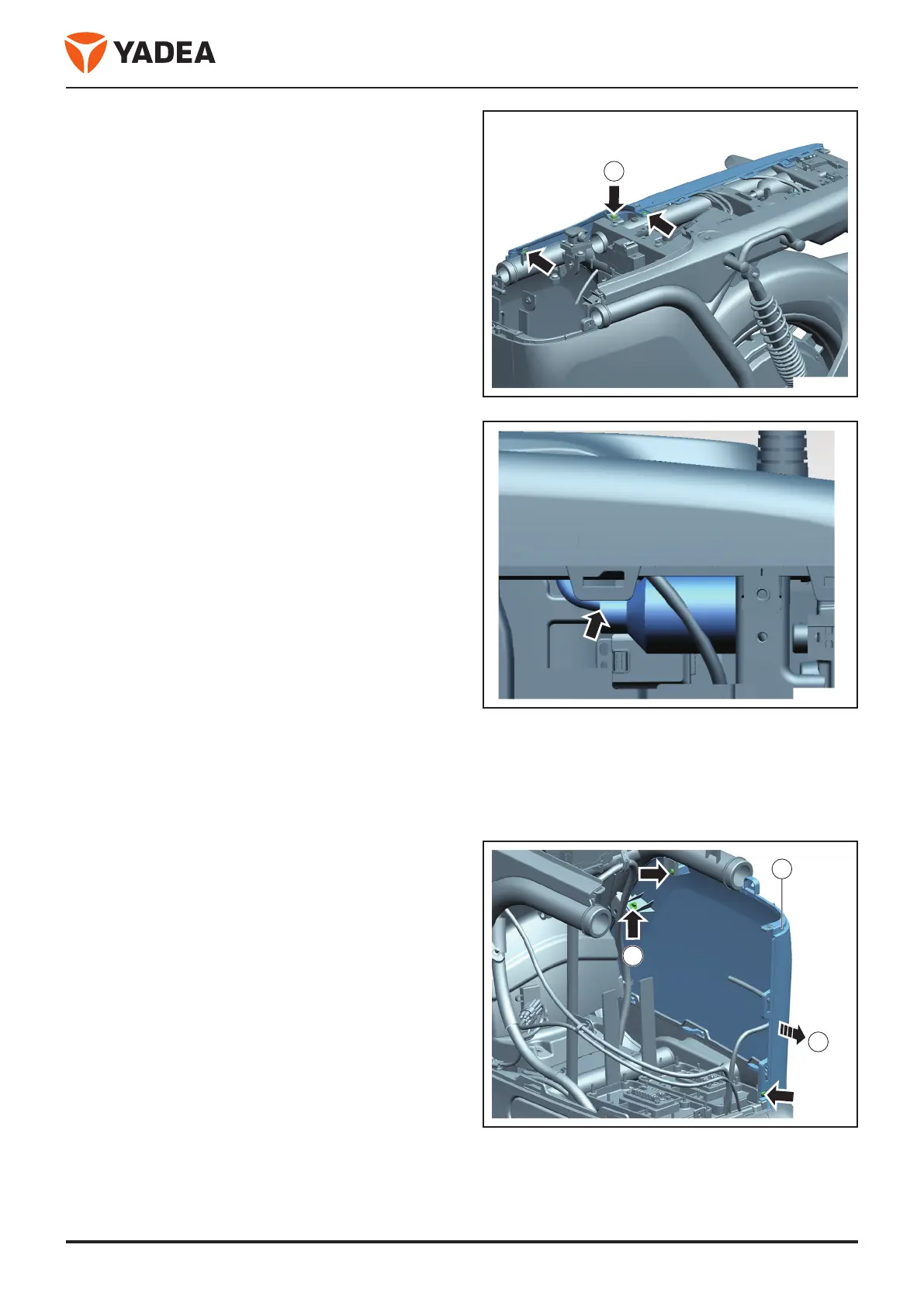

Disassembly screws – arrows -.
●
Disassembly bolt – arrow A -.
●
Disconnect rear turn signal and rear tail light
connector – arrow -.
●
Disassembly the shelf side panels left, right and
rear turn signals and rear tail lights.
●
Disassembly the shelf side panels.
Installation
Installation is carried out in reverse order of disassembly.
5.1.18 Disassembly and installation the side panels
5.1.18.1 Service tools
●
Sleeve 10mm
5.1.18.2 Disassembly and installation
Disassembly
●
Park the vehicle on a horizontal road surface to
support the main bracket.
●
Close the key and pull it out.
●
Open the seat cushion and turn off the air switch.
●
Disassembly the seat barrel.
●
Disassembly the center cover underneath. → page
57
●
Disassembly screws – arrows -.
●
Disassembly the smart buckle – arrow A -.
●
Take down the side plate in the direction of the –
arrow B – Left – 1 - .
Installation
Installation is carried out in reverse order of disassembly.
A
A
B
1
