PREMIUM E-MOBILITY
YD-EM279
42
1

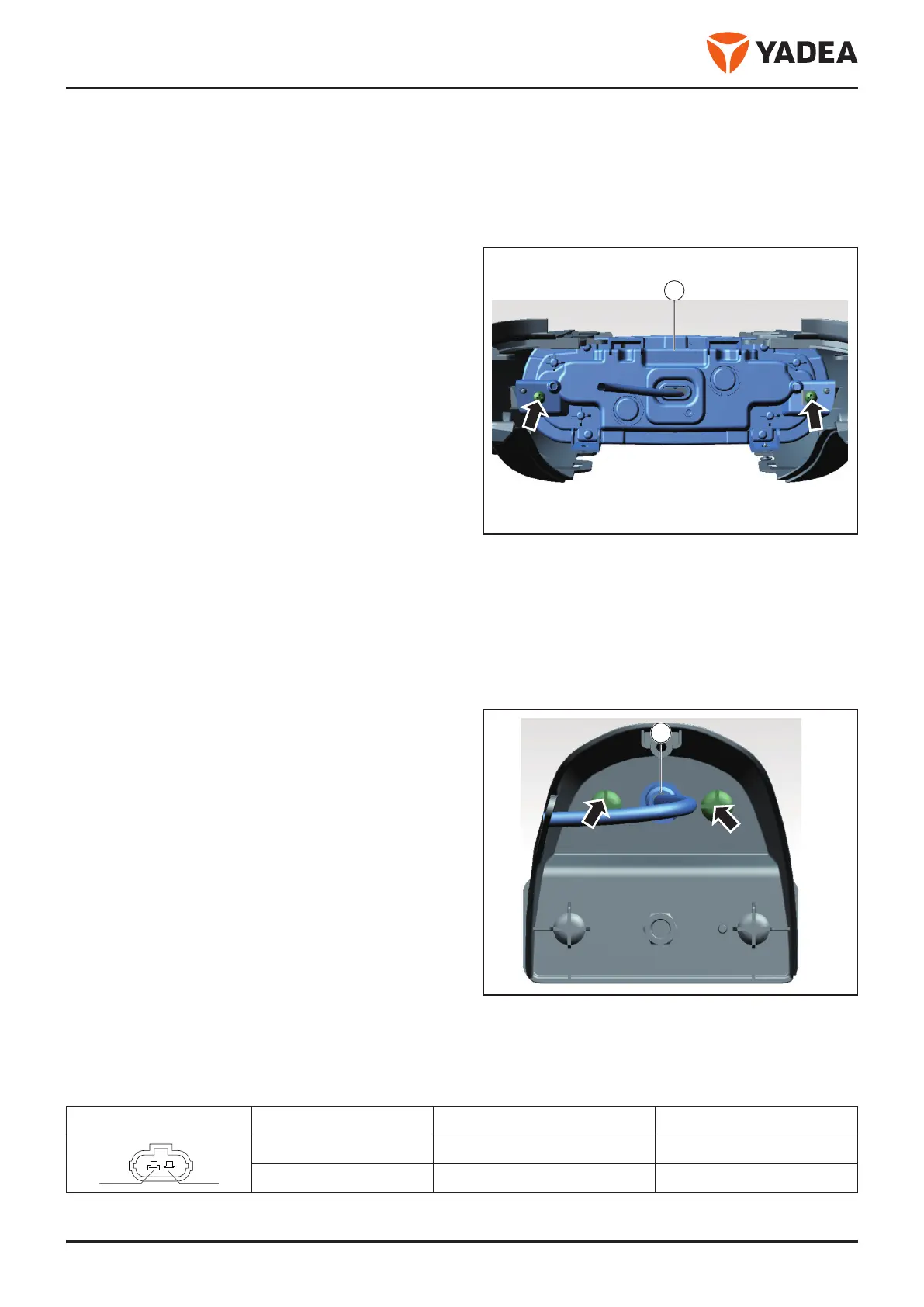

3.3.7 Disassembly and installation of rear tail lights
3.3.7.1 Overview
The rear lamp is used to show the position of the vehicle to the rear when driving at night.
3.3.7.2 Service tools
Cross screwdriver
3.3.7.3 Disassembly and installation
Disassembly
Park the vehicle on a horizontal road surface to
support the main bracket.
Close the key and pull it out.
Open the seat cushion and turn off the air switch.
Disassembly the shelf side panels. → Page 59
Disassembly the screw - arrow - , Disassembly the
rear tail light - 1 -.
Installation
Installation is carried out in reverse order of disassembly.
3.3.8 Disassembly and installation of post-license plate lamps
3.3.8.1 Overview
The rear registration plate lamp enables the license plate number to be clearly visible
3.3.8.2 Service tools
Cross screwdriver
3.3.8.3 Disassembly and installation
Disassembly
Park the vehicle on a horizontal road surface to
support the main bracket.
Close the key and pull it out.
Open the seat cushion and turn off the air switch.
Disassembly the rear fender. → Page 59
Disassembly the screw - arrow - , Disassembly the
photo light after Disassembly - 1 -.
Installation
Installation is carried out in reverse order of disassembly.
3.3.8.4 Connector interface definition
Connector No. Interface definition Color
1 2
1 Positive Electrode (+12V) Black
2 Negative (-) Brown
1
