YD-EM279
67
PREMIUM E-MOBILITY
6
Chassis
6.1 Suspension system
6.1.1 Overview
Working principle and composition of shock absorber
When the shock absorber moves up and down, the pressure difference P between the cavities forces the shock ab-
sorber oil to pass through the damping hole or valve system, generating damping force. Roles of shock absorber: A.
Support the body. B. Transfer the counterforce of the road surface on the vehicle body. C. Ease the body impact and
weaken the body vibration. D. Restrain the vehicle bounce and improve the grounding of the tire to the ground to en-
sure the vehicle safety.

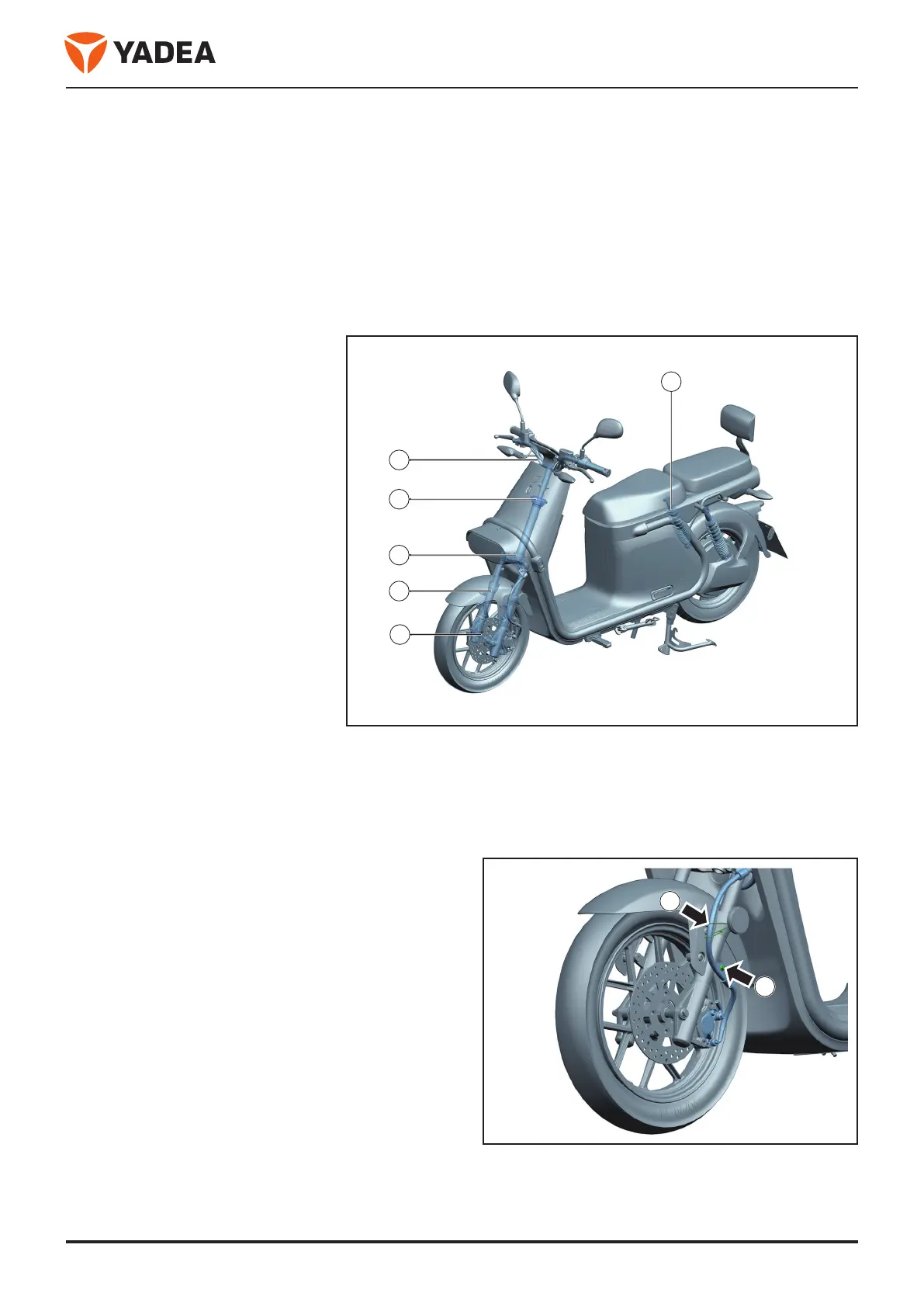

6.1.2 Assembly overview
1. Rear shock absorption
2. Front axle
3. Front shock absorption
4. Under steering bearings
5. On the steering bearings
6. Directional handle
6.1.3 Disassembly and installation Shock absorption prior to
6.1.3.1 Service tools
●
Sleeve 14mm
●
Sleeve 17mm
6.1.3.2 Disassembly and installation
Disassembly
●
Park the vehicle on a horizontal road surface to
support the main bracket.
●
Close the key and pull it out.
●
Disassembly the brake tube fixing bolt - arrow A -.
●
Disassembly the brake retention clip - Arrow B -.
●
Disassembly the front fender. → Page 50
●
Disassembly the front wheel.
●
Disassembly the direction handle. → Page 73
●
Shock absorption before disassembly.
Installation
Installation is carried out in reverse order of disassembly.
1
22
23
24
25
26
A
B
