Yadea Y1S Series User Manual

PREMIUM E-MOBILITY
YD-EM279
50
1014
13 12 11
321 4
27
28
29
25
26
216
215
218
217
5
Body trim
5.1 Exterior trim

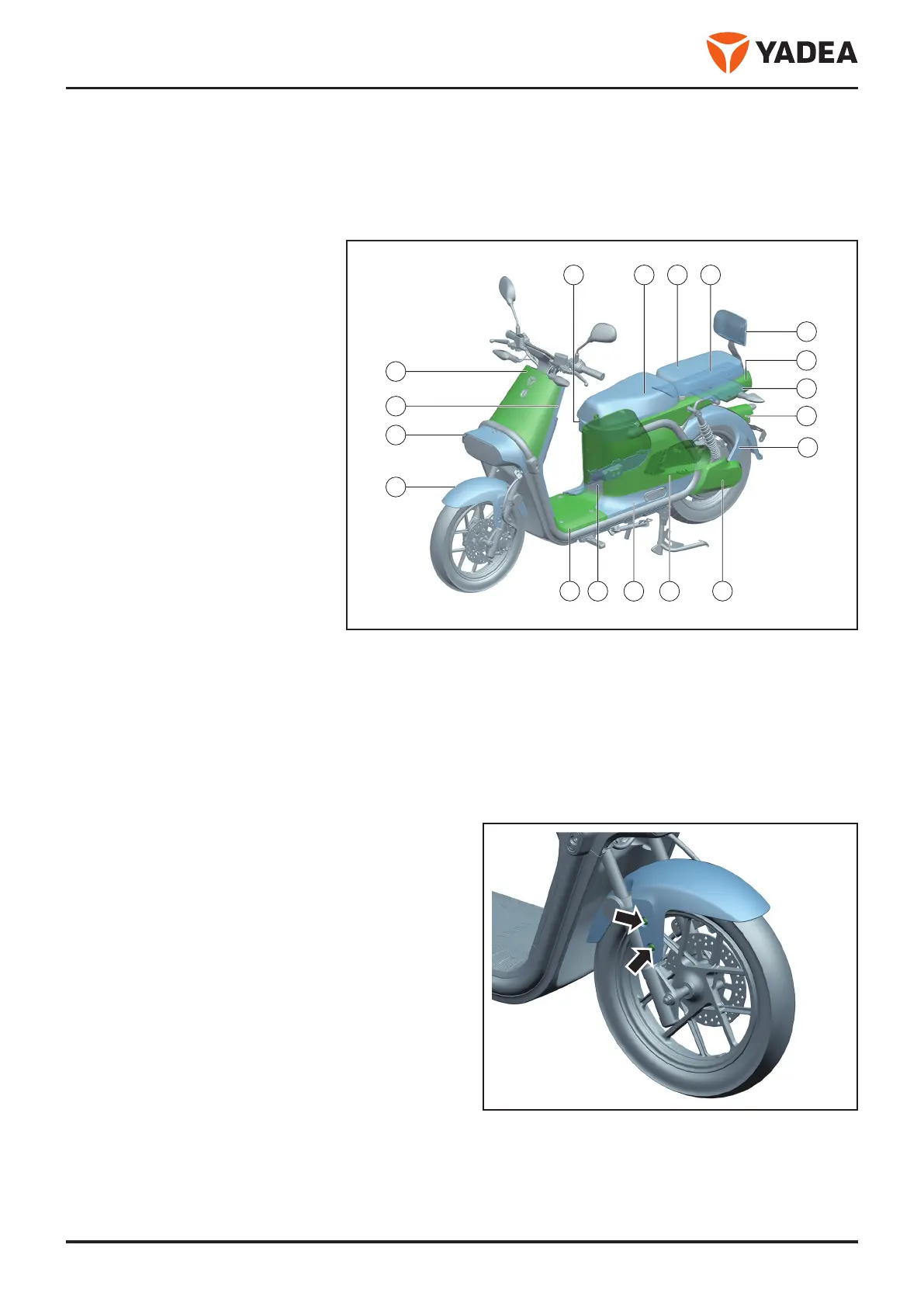

5.1.1 Assembly Overview
1. Center Cover
2. Seat cushion
3. Rear seat cushion
4. Shelf cover
5. Backrest shell
6. Shelf side panels
7. Shelf baseplate
8. License plate lamp
Fixing plate
9. Rear fender
10. Flat fork cover
11. Side plates
12. Trailing strip
13. Center Hood Down
14. Foot pedals
15. Front fender
16. Headshade
17. Internal windshield
18. Front circumference
5.1.2 Disassembly and installation of front fender
5.1.2.1 Service tools
●
Sleeve 10mm
5.1.2.2 Disassembly and installation
Disassembly
●
Park the vehicle on the level road and support the
main support.
●
Remove the bolt - arrow -.
