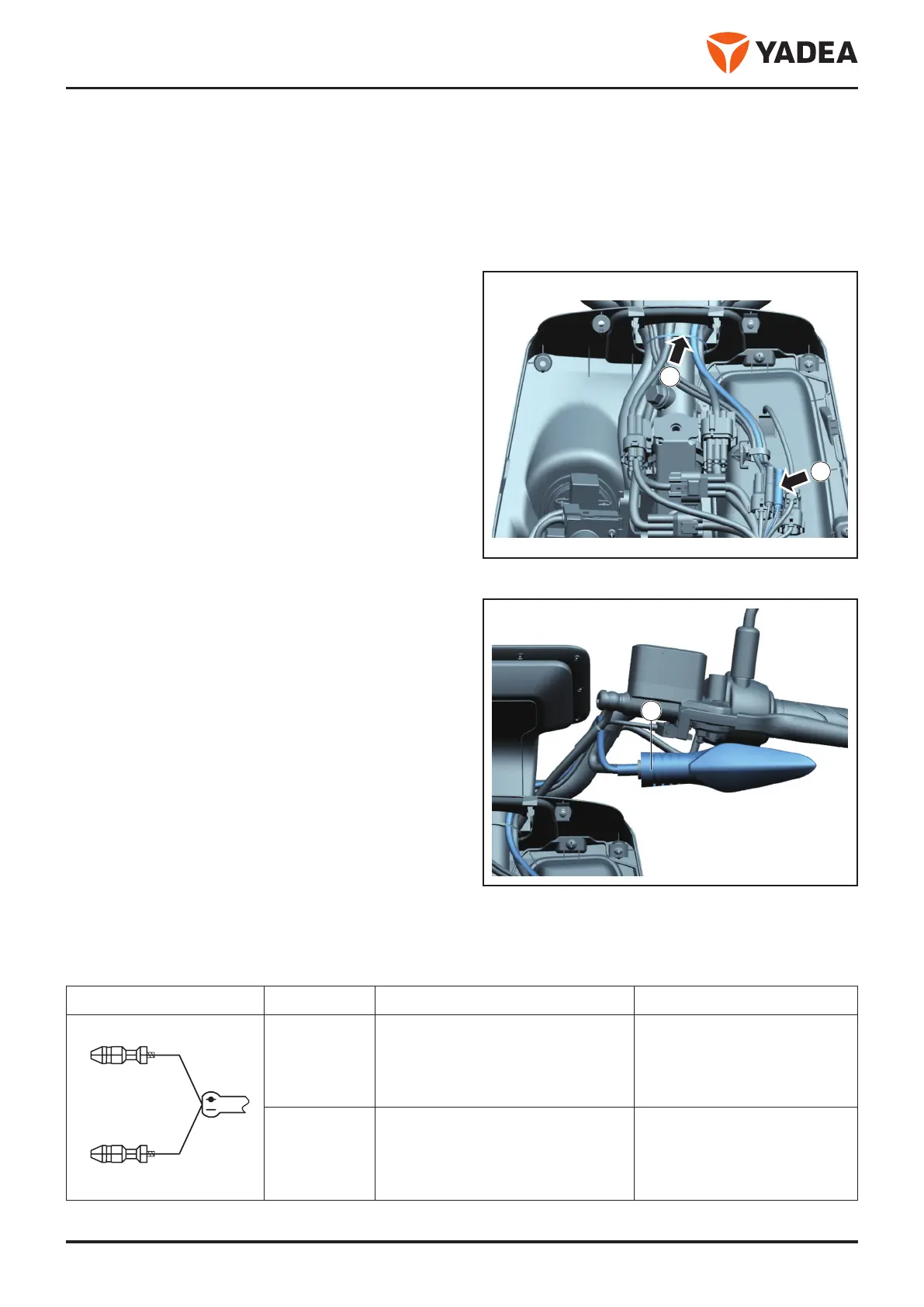

3.3.5 Disassembly and installation the front turn signals lamp
3.3.5.1 Overview
When the electric vehicle needs to turn, the direction indicator lamp can issue a yellow flashing signal through the
central control to alert the turn.
3.3.5.2 Service tools
●
Cross screwdriver
●
Open end wrench
3.3.5.3 Disassembly and installation
Disassembly
●
Park the vehicle on a horizontal road surface to
support the main bracket.
●
Close the key and pull it out.
●
Open the seat cushion and turn off the air switch.
●
Disassembly the front wall. → page 51
●
Disconnect the cable tie - Arrow A -.
●
Disconnect the cable tie - Arrow B -.
●
Take off the protective sleeve.
●
Disassembly the nut, Disassembly the turn signal
lamp - 1 -.
Installation
Installation is carried out in reverse order of disassembly.
3.3.5.4 Connector interface definition
Connector No. Interface definition Color
1
2
1 Cathode Left (orange) Right (blue)
2 Negative electrode Black
