Yadea Y1S Series User Manual

PREMIUM E-MOBILITY
YD-EM279
10
2.1.3 Disassembly and installation of motor
2.1.3.1 Service tools
●
Cross screwdriver
●
Straight screwdriver
●
Sleeve 8mm
●
Sleeve 21mm
2.1.3.2 Disassembly and installation
Disassembly
High voltage risk:
This part is a high voltage part with high voltage risk.
The user is prohibited to touch this part at will, so as
not to cause electric shock and other casualties.
●
Park the vehicle on a horizontal road surface to
support the main bracket.
●
Close the key and pull it out.
●
Open the seat cushion and turn off the air switch.
●
Disassembly the shelf cover. → Page 59
●
Disassembly the seat barrel. → page 58
●

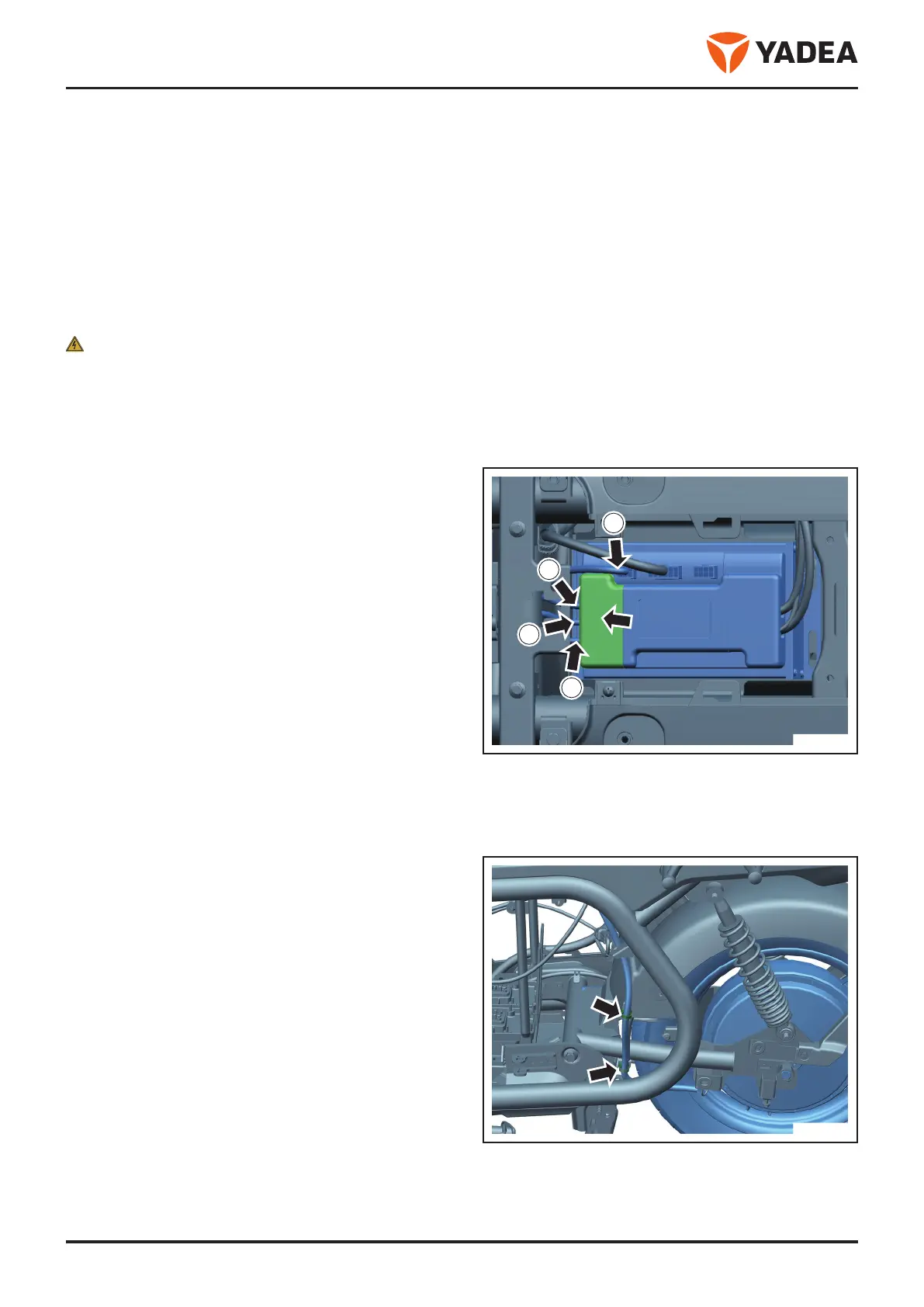

Open the controller harness protection cover -
arrow - .
●
Disassembly the bolt and Disassembly the motor
harness - arrow B -.
●
Disconnect the motor connector - arrow A -.
●
Disconnect the harness fixing clip - arrow - .
A
A
A
B
