3.2.6 Disassembly and installation of air switch
3.2.6.1 Overview
The air switch controls the vehicle power supply.
3.2.6.2 Service tools
●
Cross screwdriver
●
Straight screwdriver
3.2.6.3 Disassembly and installation
Disassembly
●
Park the vehicle on the level road and support the main support.
●
Close the key and pull it out.
●
Open the seat cushion and turn off the air switch.
●
Disassembly the seat barrel. → page 58
●

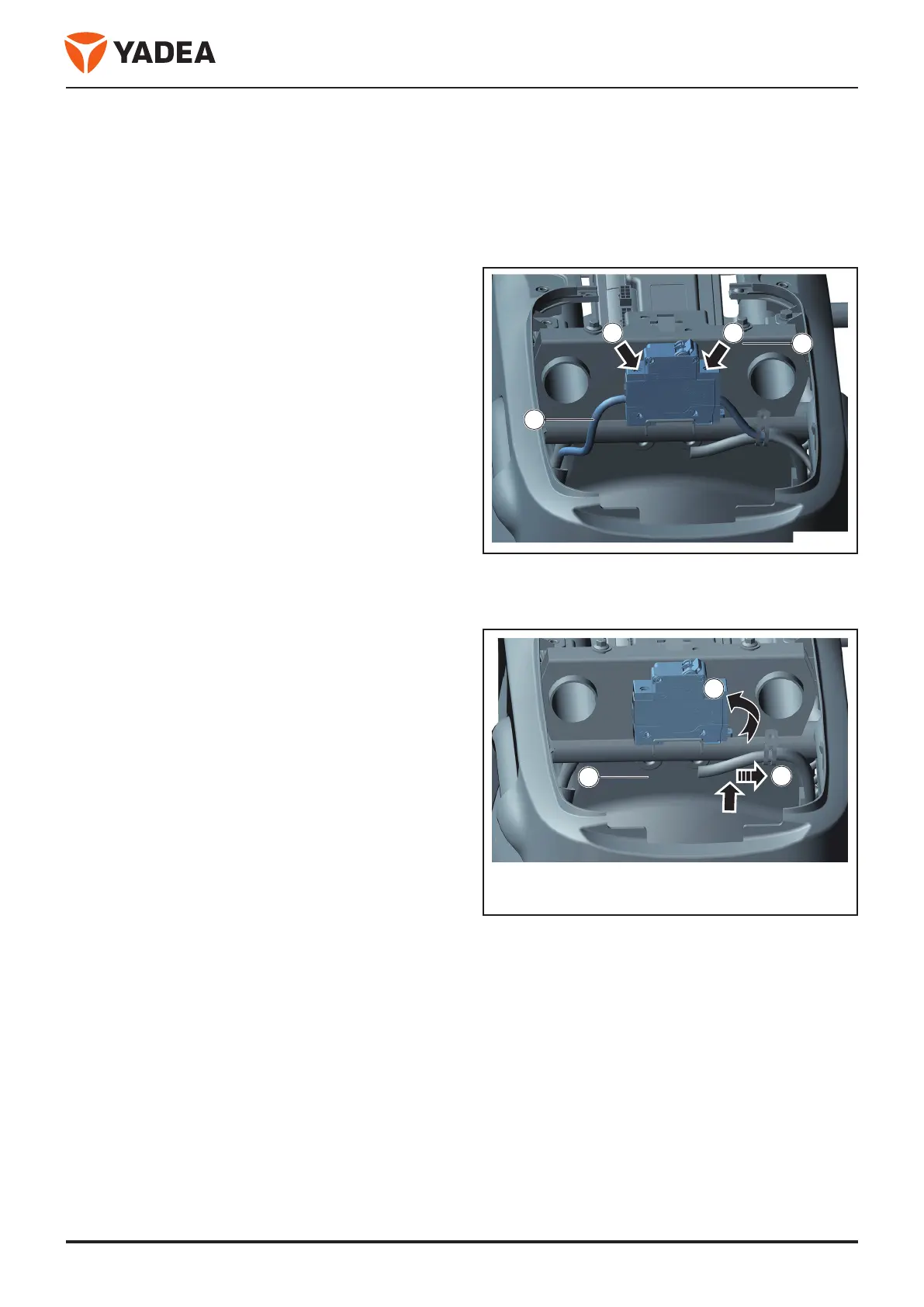

Loosen the bolt - arrow A -, Disassembly the
harness - 1 -.
●
Loosen the bolt - arrow B -, Disassembly the
harness - 2 -.
●
Use a Straight screwdriver to pry the air switch lock
in the direction of arrow A.
●
Take out the air switch in the direction of - arrow B
- 1 -.
Installation
Installation is carried out in reverse order of disassembly.
