Yadea Y1S Series - Disassembly and Installation the Rear Strip

PREMIUM E-MOBILITY
YD-EM279
56
2
A
B
C
D
21
3
1
A
B
●
Rest the feet after disassembly. → Page 48
●

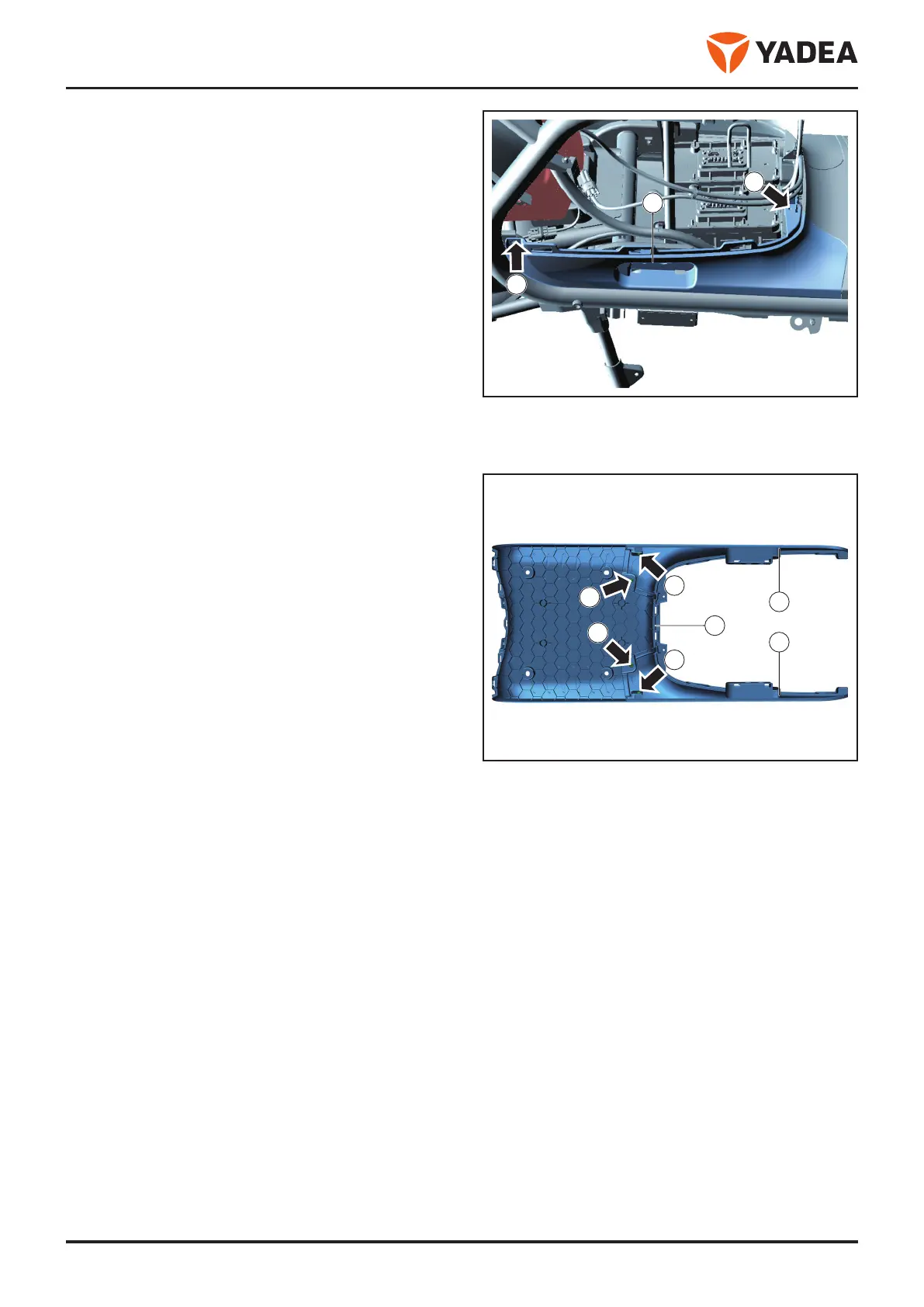

Disassembly screw - arrow A -.
●
Disassembly the bolt - arrow B -.
●
Disassembly the foot pedal and left/right rear strip.
●
Disassembly screws - arrows A and B - .
●
Disassembly the left rear bar - 2 -.
●
Disassembly screws - arrows C and D -.
●
Disassembly the left rear bar - 3 -.
●
Installation
Installation is carried out in reverse order of disassembly.
5.1.9 5.1.9 Disassembly and installation the rear strip
5.1.9.1 Service tools
●
Cross screwdriver
5.1.9.2 Disassembly and installation
Disassembly
●
Park the vehicle on a horizontal road surface to support the main bracket.
●
The Disassembly and installation method of the rear side strip is the same as that of the foot pedal.
