Yadea Y1S Series User Manual

YD-EM279
79
PREMIUM E-MOBILITY

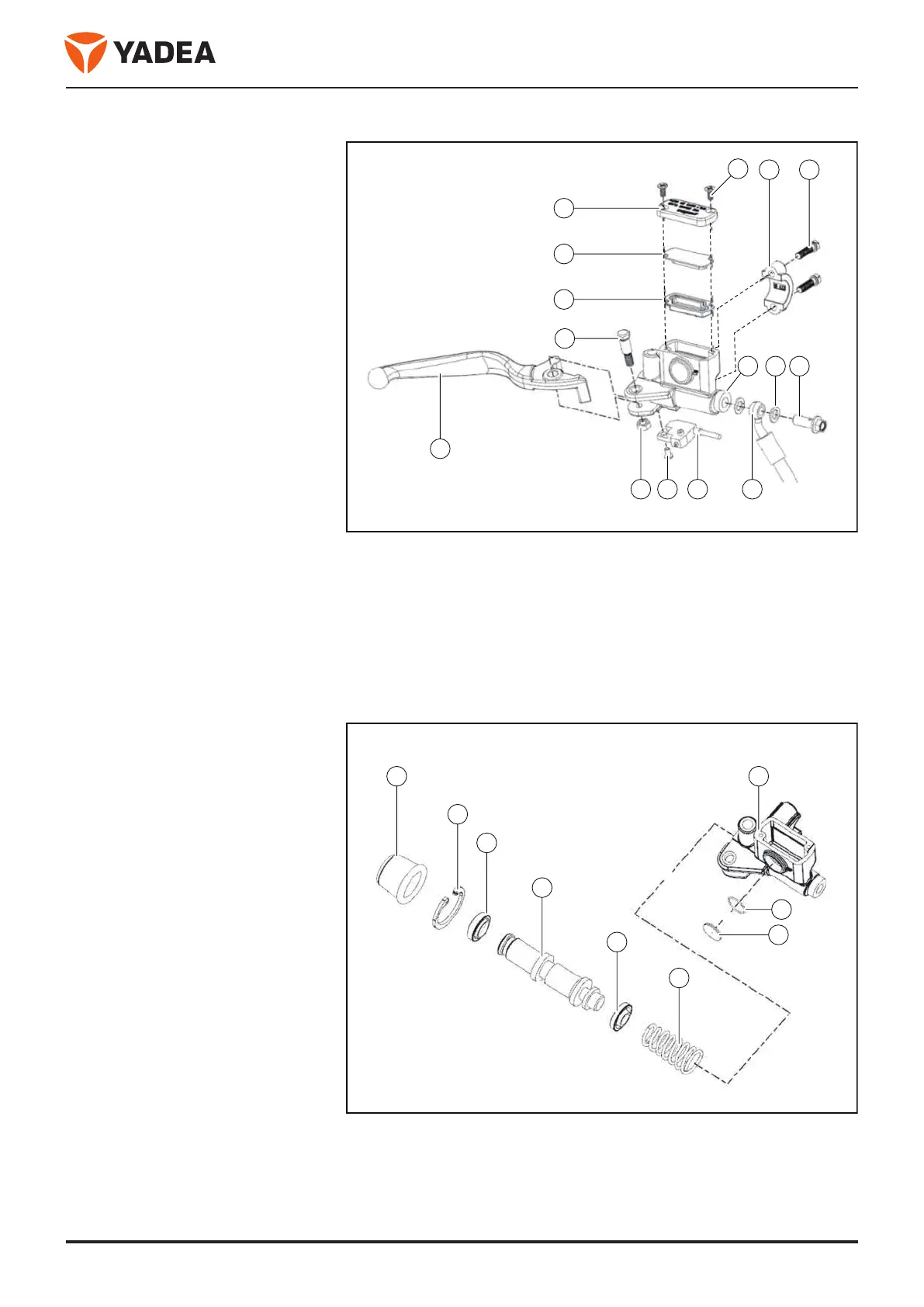

7.3.3 Brake main pump exploded diagram
1. Brake handle mounting
bolts
2. Oil tank spacer
3. Seal the septum
4. Oil cup lid
5. Oil cup lid bolts
2 pcs
6. Main pump mount
7. Mounting bolts
2 pcs
8. Master cylinder
9. Copper washer
2 pcs
10. Tubing bolts
11. Brake tubing
12. Brake switch
13. Switch mounting screws
14. Nuts
15. Brake handle
7.3.4 Breakdown drawing of master cylinder
1. Dustproof rubber ring
2. E - shaped check ring
●
2
3. Oil seal
●
2
4. Main pump thruster
5. Spring
6. Inspection glass for oil
level
7. Rubber O - ring
8. Main pump body
6
9
2225
26
2324
7
: 21
8
5
4
3
2
6
4
5
4
3
2 9
8
7
